Kuala Nerang, Kedah, Malaysia represents a highly favorable location for year-round solar energy generation. Located in the tropical region at coordinates 6.2554°N, 100.6188°E, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than traditional temperature-based seasons.

Solar Energy Production Potential

The solar energy output data for Kuala Nerang shows excellent year-round performance, with spring delivering the highest production at 6.14 kWh per day per kW of installed solar capacity. Winter also performs exceptionally well at 5.53 kWh/day per kW, while summer produces 5.43 kWh/day per kW. Autumn shows the lowest output at 4.99 kWh/day per kW, though this still represents strong production levels. The most productive period for solar generation at this location occurs during spring, followed closely by winter. This pattern is typical for tropical locations where the sun's angle and atmospheric conditions create optimal energy generation during these seasons. For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 5 degrees facing south. This optimal angle is calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these factors using solar irradiance data while accounting for Earth's elliptical orbit patterns.

Environmental and Weather Challenges

Several significant factors could impact solar energy production in Kuala Nerang:

• Heavy tropical rainfall: The monsoon seasons bring intense downpours that can reduce solar irradiance and create water-related issues
• High humidity levels: Persistent moisture in the air can affect panel efficiency and create condensation problems
• Dust and debris accumulation: Tropical environments generate organic matter that can settle on panels
• Extreme heat: High temperatures can reduce panel efficiency and accelerate component degradation

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented: Water Management: Install panels with proper drainage systems and ensure mounting structures allow water to flow away quickly. Use panels with anti-reflective coatings that also repel water effectively. Ventilation and Cooling: Design installations with adequate air circulation beneath panels to reduce heat buildup. Consider elevated mounting systems that promote airflow and help maintain optimal operating temperatures. Regular Maintenance: Establish a cleaning schedule that accounts for tropical conditions, including removal of organic debris, bird droppings, and dust accumulation. This is particularly important during and after wet seasons when organic growth accelerates. Quality Components: Choose solar equipment specifically rated for tropical climates, including corrosion-resistant mounting hardware and electrical components designed to withstand high humidity and temperature fluctuations. Despite these environmental challenges, Kuala Nerang remains an excellent location for solar energy generation, with the preventative measures outlined above helping to ensure systems operate at peak efficiency throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

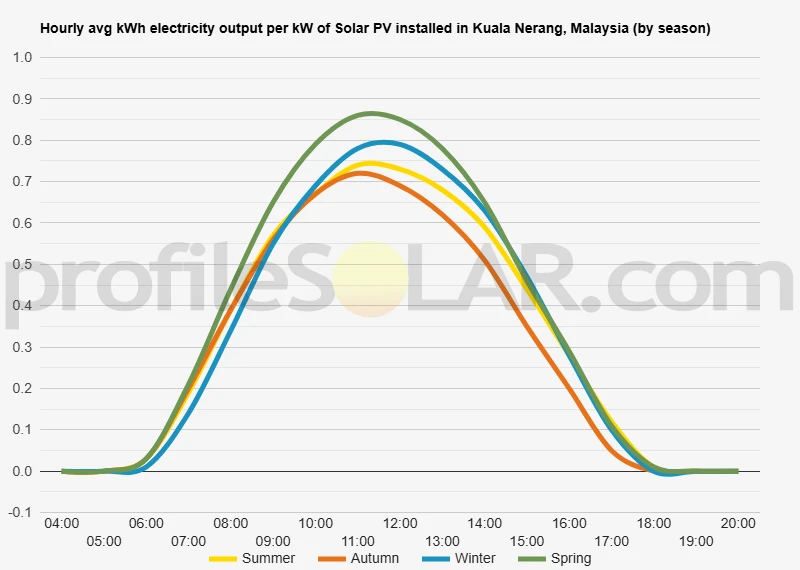

Solar output per kW of installed solar PV by season in Kuala Nerang

Seasonal solar PV output for Latitude: 6.2554, Longitude: 100.6188 (Kuala Nerang, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 5° South in Kuala Nerang, Malaysia

To maximize your solar PV system's energy output in Kuala Nerang, Malaysia (Lat/Long 6.2554, 100.6188) throughout the year, you should tilt your panels at an angle of 5° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kuala Nerang, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kuala Nerang, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 5° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	12° South in Autumn	21° South in Winter	0° in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kuala Nerang, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kuala Nerang, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kuala Nerang, Malaysia

Topographical Features of Kuala Nerang Region

Kuala Nerang sits in the northern part of Peninsular Malaysia within Kedah state, positioned in a predominantly flat to gently undulating landscape characteristic of Malaysia's western coastal plains. The town lies at a relatively low elevation, nestled between the foothills of the Main Range mountains to the east and the coastal lowlands extending toward the Straits of Malacca to the west.

The immediate surroundings feature expansive rice paddies and agricultural flatlands that stretch across much of the Kedah plain. These cultivated areas are interspersed with small settlements, irrigation channels, and rural roads. The terrain gradually rises as one moves eastward toward the interior, where the landscape transitions into rolling hills and eventually the more mountainous regions of the Main Range.

To the west and northwest, the topography remains consistently flat, dominated by agricultural land use including rice cultivation and some mixed farming. This western region extends toward the coast and maintains minimal elevation changes, creating broad open spaces with few natural obstructions to sunlight exposure.

Optimal Areas for Large-Scale Solar Development

The extensive flat agricultural plains stretching westward from Kuala Nerang present the most favorable conditions for large-scale solar photovoltaic installations. These areas offer several key advantages including minimal grading requirements, reduced construction costs, and unobstructed solar access throughout the day. The relatively uniform terrain would facilitate efficient panel layout and maintenance access.

The rice paddies and agricultural flatlands northwest of the town center represent particularly suitable locations, as the open landscape provides excellent solar exposure without significant shading from hills or elevated terrain. These areas also benefit from existing rural road networks that could support construction and ongoing maintenance activities.

Areas immediately south and southwest of Kuala Nerang also show strong potential, where the flat topography continues with minimal natural barriers. The gentle, consistent elevation across these regions would allow for optimal panel orientation and spacing while minimizing the need for extensive site preparation.

The eastern areas, while still relatively flat near the town, become less suitable as the terrain begins to rise toward the foothills. These locations would face increased development challenges due to sloping ground and potential shading issues from the higher elevations beyond. The western plains clearly emerge as the preferred zone for any substantial solar development projects in the region.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Malaysia?

Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in Malaysia? Please reach out to us and help us keep this information current. Thanks!
