Kulai, Johor, Malaysia, situated at latitude 1.7241 and longitude 103.5039, offers a promising location for solar energy generation throughout the year. This tropical region benefits from consistent sunlight, with seasons primarily characterized by wet and dry periods rather than traditional temperature-based seasons.

Year-Round Solar Potential

The solar energy output in Kulai remains relatively stable across all meteorological seasons. Spring sees the highest production at 5.41 kWh per day for each kW of installed solar capacity. This is followed closely by autumn with 5.08 kWh/day, winter with 5.01 kWh/day, and summer with 4.77 kWh/day. These figures indicate a favorable environment for solar PV installations, with only minor fluctuations between seasons. The consistency in solar output throughout the year is a significant advantage for Kulai. Unlike locations in higher latitudes that experience substantial seasonal variations, this tropical location allows for more predictable and steady energy production. This stability can lead to more efficient system sizing and potentially lower overall costs for solar installations.

Optimal Panel Tilt

For fixed panel installations in Kulai, Johor, the ideal tilt angle to maximize year-round solar production is 1 degree South. This nearly flat orientation is due to the location's proximity to the equator, where the sun's path remains relatively high in the sky throughout the year. This optimal angle ensures that panels capture the maximum amount of sunlight across all seasons, contributing to consistent energy generation.

Environmental Considerations

While Kulai's location is generally favorable for solar energy production, there are a few environmental factors to consider: 1. High humidity: The tropical climate can lead to increased moisture, potentially affecting solar panel efficiency and lifespan. 2. Heavy rainfall: During the wet season, frequent rain showers might temporarily reduce solar output. To mitigate these factors, preventative measures can be implemented during solar installation: 1. Use high-quality, weather-resistant panels and components designed for tropical climates. 2. Ensure proper sealing and waterproofing of all electrical connections. 3. Install panels at a slight angle (as recommended) to facilitate water runoff and prevent water accumulation. 4. Implement a regular cleaning and maintenance schedule to remove any dirt or debris that may accumulate due to high humidity or rainfall. By addressing these environmental considerations, solar installations in Kulai can maintain optimal performance and longevity, taking full advantage of the location's excellent year-round solar potential.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

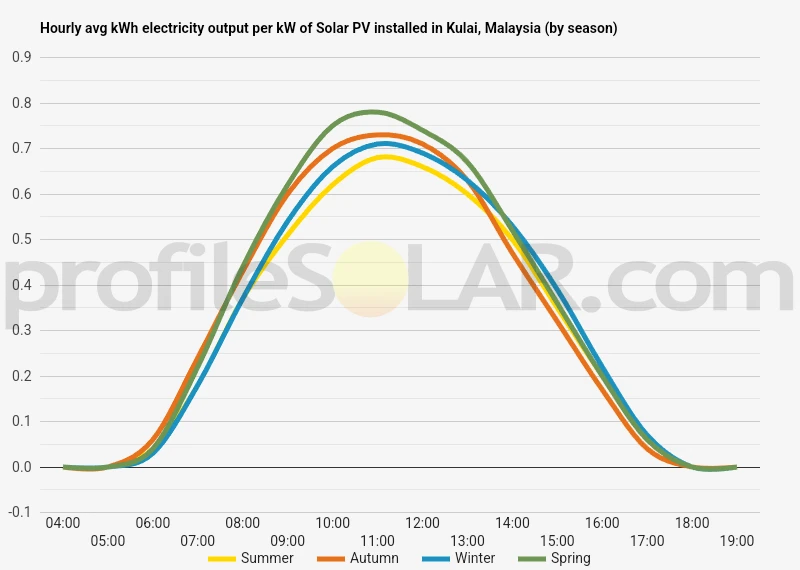

Solar output per kW of installed solar PV by season in Kulai

Seasonal solar PV output for Latitude: 1.7241, Longitude: 103.5039 (Kulai, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 1° South in Kulai, Malaysia

To maximize your solar PV system's energy output in Kulai, Malaysia (Lat/Long 1.7241, 103.5039) throughout the year, you should tilt your panels at an angle of 1° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kulai, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kulai, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	8° South in Autumn	17° South in Winter	4° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kulai, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kulai, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kulai, Malaysia

The topography around Kulai, Malaysia, is characterized by a mix of gently rolling terrain and low-lying plains. This area is situated in the southern part of Peninsular Malaysia, not far from the Straits of Johor. The landscape is primarily composed of former rubber and oil palm plantations, interspersed with patches of secondary forest and urban developments.

To the west and northwest of Kulai, the terrain gradually rises into the foothills of the Gunung Pulai Forest Reserve. This area features slightly more elevated and undulating land, with some small hills and valleys. To the east and southeast, the land tends to be flatter, transitioning into coastal plains as it approaches the Strait of Johor.

The region experiences a tropical climate with high humidity and frequent rainfall, which has shaped the landscape over time. Several small rivers and streams crisscross the area, contributing to the overall gentle topography and creating some low-lying, flood-prone areas.

When considering locations for large-scale solar PV installations near Kulai, the most suitable areas would likely be found in the flatter, open spaces to the east and southeast of the city. These areas offer several advantages for solar energy development:

1. The relatively flat terrain reduces the need for extensive land preparation and minimizes shading issues between solar panels.
2. Many of these areas are former agricultural lands, which may be easier to repurpose for solar farms compared to forested or densely populated urban areas.
3. The proximity to existing infrastructure and the power grid in the more developed coastal regions could facilitate easier integration of solar-generated electricity.

However, it's important to note that site-specific assessments would be necessary to determine the most optimal locations for solar PV installations. Factors such as local zoning regulations, environmental considerations, and the availability of suitable land parcels would all play crucial roles in the final site selection process.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Malaysia?

Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in Malaysia? Please reach out to us and help us keep this information current. Thanks!
