Kulim, Kedah, Malaysia, situated at 5.4751° N latitude and 100.5387° E longitude, offers a promising location for solar energy generation throughout the year. This tropical setting benefits from consistent sunlight, with weather patterns primarily characterized by wet and dry seasons rather than traditional four-season cycles.

The solar energy potential in Kulim remains relatively stable across the year, with only slight variations between seasons. Spring emerges as the most productive period, yielding an impressive 5.95 kWh per day for each kilowatt of installed solar capacity. Winter follows closely behind at 5.75 kWh/day, while summer and autumn produce 5.44 kWh/day and 5.19 kWh/day, respectively.

Optimal Panel Positioning

To maximize year-round solar energy production in Kulim, Kedah, fixed solar panels should be tilted at a 5-degree angle facing south. This optimal tilt angle ensures that panels capture the most sunlight possible throughout the year, accounting for the Earth's elliptical orbit and Kulim's proximity to the equator.

Environmental Considerations

While Kulim's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider:

• Heavy rainfall during the monsoon season (typically October to March) may temporarily reduce solar output.
• High humidity levels can lead to increased dust accumulation on panels, potentially affecting efficiency.

To mitigate these issues, installing panels at the recommended 5-degree tilt helps with natural cleaning during rainfall. Additionally, implementing a regular cleaning schedule and using hydrophobic coatings on panels can maintain optimal performance. Investing in high-quality, weather-resistant solar equipment is also crucial for long-term reliability in this tropical climate.

Overall, Kulim's location offers excellent potential for year-round solar energy generation, with only minor seasonal fluctuations and manageable environmental challenges. With proper installation and maintenance, solar PV systems in this area can provide a consistent and renewable energy source throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

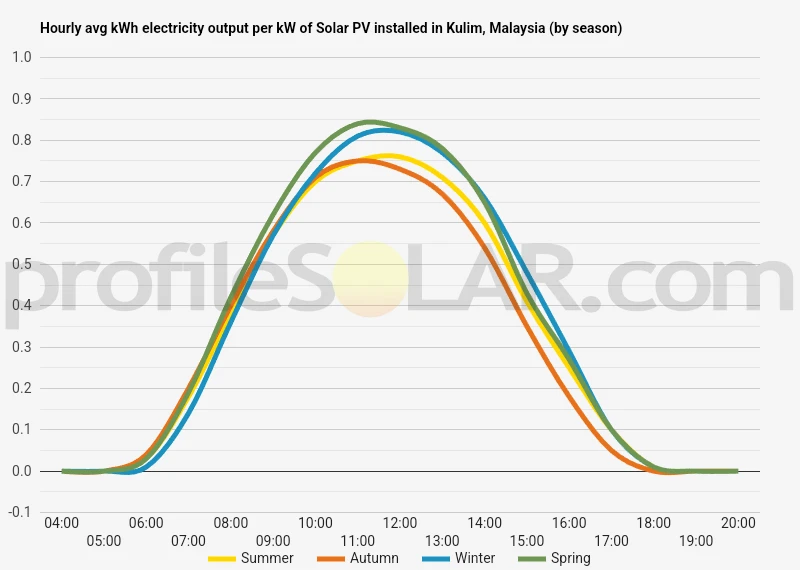

Solar output per kW of installed solar PV by season in Kulim

Seasonal solar PV output for Latitude: 5.4751, Longitude: 100.5387 (Kulim, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 5.44kWh/day in Summer.

Average 5.19kWh/day in Autumn.

Average 5.75kWh/day in Winter.

Average 5.95kWh/day in Spring.

Ideally tilt fixed solar panels 5° South in Kulim, Malaysia

To maximize your solar PV system's energy output in Kulim, Malaysia (Lat/Long 5.4751, 100.5387) throughout the year, you should tilt your panels at an angle of 5° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 5.4751, Longitude: 100.5387, the ideal angle to tilt panels is 5° South

Seasonally adjusted solar panel tilt angles for Kulim, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kulim, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 5° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kulim, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kulim, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kulim, Malaysia

The area around Kulim, Malaysia, is characterized by a diverse topography that includes both flat lowlands and gently rolling hills. Kulim itself is situated in a relatively flat area, with elevations generally ranging from 20 to 60 meters above sea level. This flat terrain extends for several kilometers in most directions, particularly to the west and southwest.

As you move away from the immediate vicinity of Kulim, the landscape becomes more varied. To the east and northeast, the terrain gradually rises into a series of low hills and ridges. These hills are part of the foothills of the Central Range, which runs through the center of Peninsular Malaysia. While not particularly high, with most peaks reaching only 200 to 400 meters, they do create a more undulating landscape compared to the flatlands around Kulim.

To the north and northwest of Kulim, the land slopes gently towards the coast of the Strait of Malacca. This area is predominantly flat, with numerous rice paddies and other agricultural lands. The coastal region itself is characterized by mangrove swamps and mudflats.

For large-scale solar PV installations, the most suitable areas would be the flat, open spaces to the west and southwest of Kulim. These areas offer several advantages for solar energy development:

1. The flat terrain reduces the cost and complexity of site preparation and construction.
2. There are fewer natural obstacles that could cast shadows on solar panels, maximizing sun exposure throughout the day.
3. The open landscape allows for the efficient layout of large arrays of solar panels.
4. The proximity to existing infrastructure in and around Kulim makes it easier to connect to the power grid and transport equipment.

While the hilly areas to the east might seem appealing due to their elevation, they are generally less suitable for large-scale solar installations. The uneven terrain would require more extensive site preparation, and the hills could potentially cast shadows on the panels, reducing their efficiency. Additionally, these areas may have more vegetation that would need to be cleared, raising environmental concerns.

It's worth noting that any specific site selection would require detailed on-the-ground surveys to assess factors such as soil stability, flood risk, and local microclimates. However, based on the general topography, the flat lands to the west and southwest of Kulim appear to offer the most promise for large-scale solar PV development in this region.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Malaysia?

Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in Malaysia? Please reach out to us and help us keep this information current. Thanks!
