Malacca, Melaka, Malaysia, situated at 2.2489° N, 102.3197° E, presents a favorable location for solar energy generation throughout the year. This tropical city experiences consistent sunlight, with minimal seasonal variations in daylight hours.

Year-round Solar Potential

The solar energy output in Malacca remains relatively stable across all seasons. Spring sees the highest production at 5.59 kWh per day for each kilowatt of installed solar capacity, followed closely by autumn at 5.46 kWh/day. Summer and winter outputs are nearly identical at 5.16 kWh/day and 5.18 kWh/day, respectively. This consistency in solar energy production makes Malacca an ideal location for solar PV installations, as it ensures a steady supply of renewable energy throughout the year. The minimal fluctuations between seasons allow for more predictable energy generation and easier system planning.

Optimal Panel Tilt

For fixed solar panel installations in Malacca, Melaka, the ideal tilt angle to maximize year-round energy production is 2 degrees South. This slight tilt helps optimize the panels' exposure to sunlight throughout the year, accounting for the city's proximity to the equator and the Earth's elliptical orbit.

Environmental Factors and Mitigation

While Malacca's location is generally favorable for solar energy production, there are some environmental factors to consider: 1. High humidity: The tropical climate can lead to increased moisture on solar panels, potentially reducing efficiency. Regular cleaning and maintenance can help mitigate this issue. 2. Occasional heavy rainfall: Malacca experiences wet seasons, which can temporarily reduce solar output. Installing panels at the optimal angle helps with water runoff and self-cleaning. 3. Potential haze: Air pollution from nearby regions can sometimes affect air quality, slightly reducing solar irradiance. Using high-quality, anti-reflective coatings on panels can help maintain efficiency. To address these factors, it's recommended to use weather-resistant, high-quality solar panels and inverters designed for tropical climates. Implementing a robust cleaning schedule and considering a tracking system to maximize sun exposure can further enhance energy production in this location. Overall, Malacca's consistent year-round sunlight and minimal seasonal variations make it an excellent location for solar PV installations, with only minor environmental challenges that can be effectively managed through proper planning and maintenance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

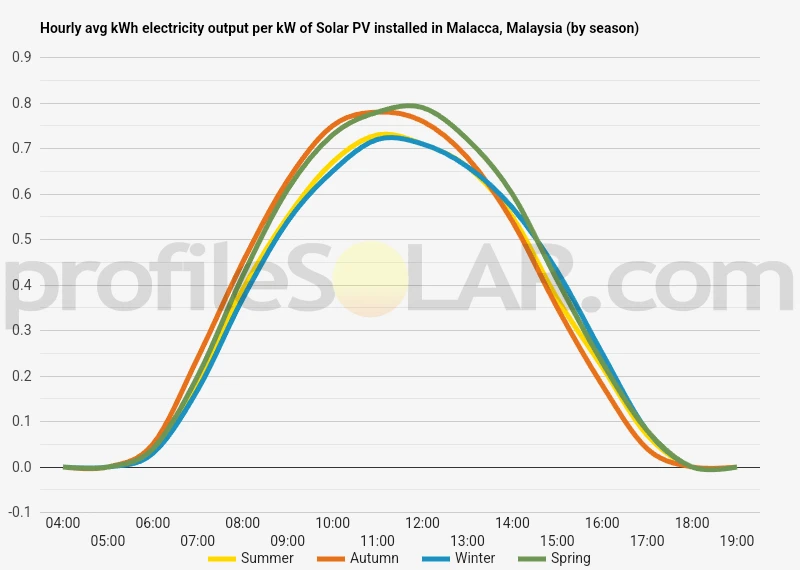

Solar output per kW of installed solar PV by season in Malacca

Seasonal solar PV output for Latitude: 2.2489, Longitude: 102.3197 (Malacca, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 2° South in Malacca, Malaysia

To maximize your solar PV system's energy output in Malacca, Malaysia (Lat/Long 2.2489, 102.3197) throughout the year, you should tilt your panels at an angle of 2° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Malacca, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Malacca, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 2° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	8° South in Autumn	17° South in Winter	4° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Malacca, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Malacca, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Malacca, Malaysia

The topography around Malacca, Malaysia, is characterized by a diverse landscape that includes both coastal areas and inland regions. Situated along the western coast of the Malay Peninsula, Malacca features a relatively flat terrain near the shoreline, gradually transitioning to gently rolling hills as you move inland. The city itself is built on low-lying land, with much of the urban area situated just a few meters above sea level. As you move away from the coast, the landscape becomes more varied. To the east of Malacca, the terrain gradually rises, forming a series of low hills and valleys. These hills, while not particularly high, provide some elevation to the otherwise predominantly flat landscape. The region is also dotted with numerous rivers and streams, including the Malacca River, which flows through the heart of the city.

Suitable Areas for Large-Scale Solar PV

When considering areas nearby Malacca for large-scale solar photovoltaic (PV) installations, several factors come into play. The most suitable locations would be those that offer ample sunlight exposure, relatively flat terrain, and minimal environmental impact. One promising area for solar PV development would be the agricultural lands to the north and northeast of Malacca city. These regions feature expansive, open spaces with minimal shading from natural or man-made structures. The gently rolling terrain in these areas provides a good balance between flat surfaces for easy installation and slight elevations that can help optimize solar panel orientation. Another potential location for large-scale solar projects would be the coastal areas to the south of Malacca. While care must be taken to avoid sensitive ecosystems and tourist areas, there are stretches of land along the coast that could be suitable for solar farms. These areas benefit from unobstructed sunlight and cool sea breezes, which can help maintain optimal operating temperatures for solar panels. It's important to note that any large-scale solar PV project would need to carefully consider environmental impacts, land use regulations, and proximity to existing power infrastructure. Additionally, while Malacca's tropical climate provides abundant sunlight year-round, the frequent cloud cover and occasional heavy rains typical of the region would need to be factored into the planning and design of any solar installation.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Malaysia?

Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in Malaysia? Please reach out to us and help us keep this information current. Thanks!
