Muar town, Malaysia presents excellent conditions for year-round solar photovoltaic energy generation. Located in the tropical region at coordinates 2.0051°N, 102.7335°E, this area benefits from consistent sunlight throughout the year, with seasonal variations characterized more by wet and dry periods than traditional temperature-based seasons.

Solar Energy Production Performance

The solar energy output at Muar town demonstrates remarkably consistent performance across all seasons. Expected electricity generation per kilowatt of installed solar capacity shows:

• Summer: 5.18 kWh per day
• Autumn: 5.49 kWh per day
• Winter: 5.16 kWh per day
• Spring: 5.63 kWh per day

Spring emerges as the optimal season for solar generation, producing 5.63 kWh per day per kilowatt installed, followed closely by autumn at 5.49 kWh per day. The variation between the best and worst performing seasons is minimal at just 0.47 kWh per day, highlighting the location's excellent year-round solar potential. For maximum energy production from a fixed panel installation at this location, solar panels should be tilted at an angle of 2 degrees facing south. This optimal angle has been calculated by analyzing daily solar elevation angles at this latitude, determining daily optimal panel tilt angles, and weighting these by daily photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Several significant local factors in Muar town can impede solar energy production and require careful consideration during installation planning. The tropical climate brings intense monsoon seasons with heavy rainfall, particularly during the northeast monsoon from November to March and the southwest monsoon from May to September. These extended wet periods can reduce solar irradiance due to cloud cover and create challenges for panel maintenance and cleaning. High humidity levels throughout the year, often exceeding 80%, can accelerate corrosion of metal components and electrical connections. The combination of heat and moisture creates an environment where standard equipment may degrade faster than in drier climates. Dust and debris accumulation presents another challenge, particularly during drier periods when particles can settle on panel surfaces and reduce efficiency. In tropical environments, organic growth such as moss, algae, or bird droppings can also accumulate on panels, further reducing their effectiveness.

Preventative Installation Measures

To maximize solar energy production despite these environmental challenges, several preventative measures should be implemented during installation. Choose solar panels and mounting systems specifically rated for tropical marine environments with enhanced corrosion resistance. Stainless steel or aluminum mounting hardware with appropriate protective coatings will withstand the humid, salt-laden air better than standard materials. Install panels with adequate spacing and ventilation to promote air circulation and reduce heat buildup. This helps maintain optimal operating temperatures and prevents moisture accumulation that could lead to electrical issues. Implement a robust grounding and electrical protection system using marine-grade cables and weatherproof junction boxes. All electrical connections should be sealed and protected from moisture ingress. Design the installation with easy access for regular cleaning and maintenance. Consider installing automated cleaning systems or ensure manual cleaning can be performed safely and effectively. Regular removal of debris, dust, and organic growth is essential for maintaining peak performance. Install monitoring systems to track performance and quickly identify any issues caused by weather or environmental factors. This allows for prompt maintenance interventions before problems significantly impact energy production.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

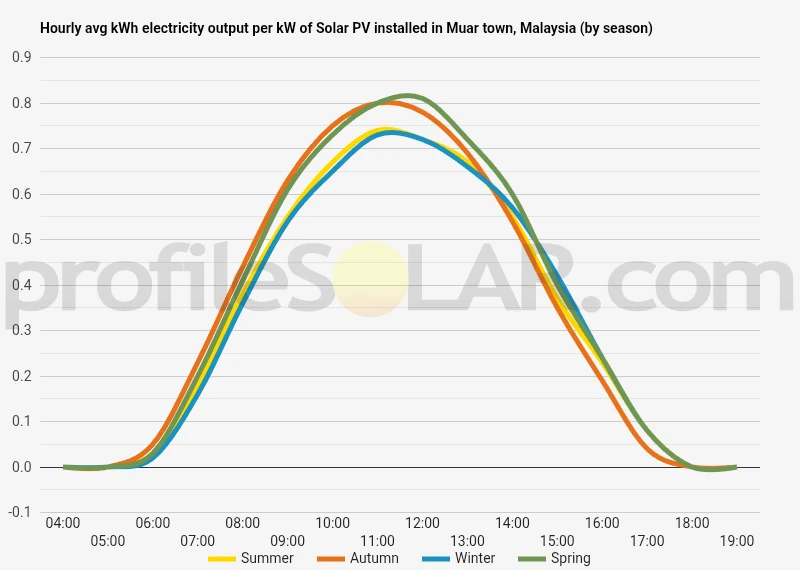

Solar output per kW of installed solar PV by season in Muar Town

Seasonal solar PV output for Latitude: 2.0051, Longitude: 102.7335 (Muar Town, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 2° South in Muar Town, Malaysia

To maximize your solar PV system's energy output in Muar Town, Malaysia (Lat/Long 2.0051, 102.7335) throughout the year, you should tilt your panels at an angle of 2° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Muar Town, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Muar Town, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 2° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	8° South in Autumn	17° South in Winter	4° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Muar Town, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Muar Town, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Muar Town, Malaysia

Topography Around Muar Town

Muar town sits in the coastal plains of Johor state in peninsular Malaysia, positioned along the banks of the Muar River as it flows toward the Strait of Malacca. The surrounding landscape is characteristically flat to gently undulating, with elevations rarely exceeding 50 meters above sea level within a 20-kilometer radius of the town center. This low-lying terrain forms part of the broader alluvial plains that dominate much of western Johor.

The topography is heavily influenced by the river system, with the Muar River creating a natural corridor through the landscape. Numerous smaller tributaries and drainage channels crisscross the area, creating a network of waterways that have shaped the local terrain over millennia. The land gradually rises as one moves inland from the coast, but the gradient remains gentle throughout most of the region.

Much of the immediate area consists of converted agricultural land, with extensive oil palm plantations dominating the landscape to the north and east of Muar town. These plantations occupy relatively flat terrain that was previously covered by tropical rainforest. Closer to the coast and river systems, the land becomes increasingly marshy and prone to seasonal flooding, particularly during the northeast monsoon period.

Optimal Areas for Large-Scale Solar Development

The gently rolling terrain approximately 10 to 15 kilometers northeast and east of Muar town presents the most favorable conditions for large-scale solar photovoltaic installations. These areas benefit from slightly elevated positions that provide good drainage while maintaining relatively flat topography that minimizes earthwork requirements and construction costs. The land in these zones typically sits between 20 and 40 meters above sea level, offering protection from coastal flooding while remaining accessible for construction and maintenance activities.

The areas immediately surrounding existing oil palm plantations are particularly well-suited for solar development, as the land has already been cleared and leveled for agricultural use. The existing infrastructure, including access roads and electrical connections to support plantation operations, can often be adapted or expanded to serve solar facilities. These locations also tend to have fewer environmental constraints compared to undeveloped forest areas.

Regions to the southeast of Muar town, extending toward the interior of Johor, offer additional opportunities for solar development. The topography in this direction becomes slightly more varied, with gentle hills and valleys that can accommodate solar installations while providing natural windbreaks and drainage patterns. The higher elevation areas in this zone, typically ranging from 30 to 60 meters above sea level, offer excellent exposure conditions while remaining easily accessible.

Areas closer to the coast and river systems should generally be avoided for large-scale solar installations due to their susceptibility to flooding, higher humidity levels, and potential saltwater intrusion that could accelerate equipment corrosion. The flat terrain immediately adjacent to Muar town, while topographically suitable, may face land use conflicts with urban expansion and existing infrastructure.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Malaysia?

Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.
