Location estimate

Mukah

Sarawak · Malaysia

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

5.37

kWh/day

Autumn

5.39

kWh/day

Winter

4.89

kWh/day

Spring

5.65

kWh/day

Shared scale: 0–6.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Mukah, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 5.37 5.37 × 1 kWp = 5.37 kWh/day
Autumn 5.39 5.39 × 1 kWp = 5.39 kWh/day
Winter 4.89 4.89 × 1 kWp = 4.89 kWh/day
Spring 5.65 5.65 × 1 kWp = 5.65 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
5.37
Autumn · kWh/day
5.39
Winter · kWh/day
4.89
Spring · kWh/day
5.65

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 2 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
2°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
14°North
Autumn
Sep, Oct, Nov
8°South
Winter
Dec, Jan, Feb
18°South
Spring
Mar, Apr, May
4°North

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Mukah, Sarawak, Malaysia.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 14 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

14° tilt · North

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 8 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

8° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 18 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

18° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 4 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

4° tilt · North

Illustrative direction; exact azimuth not recorded.

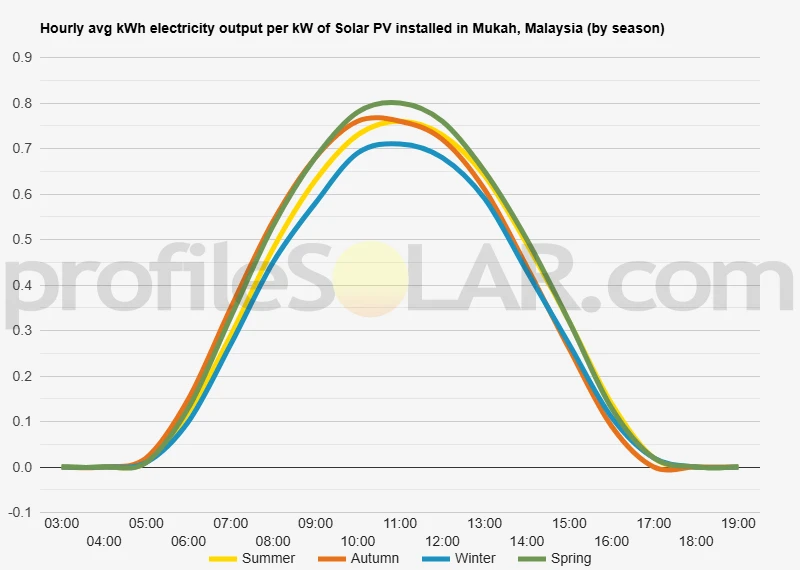

Historical hourly-by-season solar output chart for Mukah, Malaysia. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Mukah, Malaysia

Hourly profiles by season — Mukah, Malaysia · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Mukah, Malaysia · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Mukah

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 2.03 m

Proportional side viewDesign sun: ≈ 64.14° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 0.03 m
Added margin
≈ 0 m
Gap including margin
≈ 0.03 m
Panel horizontal footprint
≈ 2 m
Panel vertical rise
≈ 0.07 m
Pitch before margin
≈ 2.03 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
2°
Added margin
0 m
Latitude from the catalogue
2.411800000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.9987816540381915 m
Panel vertical rise
0.06979899340500194 m
Calculated clear gap
0.033834753607511946 m
Pitch before margin
2.0326164076457034 m
Gap including margin
0.033834753607511946 m
Row pitch including margin
2.0326164076457034 m
Design solar elevation
64.13841715318637°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Mukah

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

The location of Mukah, Malaysia, situated at latitude 2.4118 and longitude 112.0435, presents a favorable environment for solar energy generation throughout the year. This tropical location benefits from consistent sunlight, with seasons primarily characterized by wet and dry periods rather than traditional temperature-based seasons.

Read the full article

<h3>Solar Energy Production Potential</h3> Solar photovoltaic (PV) systems in Mukah can expect relatively stable electricity output across all seasons. The average daily electricity production per kilowatt of installed solar capacity ranges from 4.89 kWh in winter to 5.65 kWh in spring. Autumn and summer seasons show similar performance, with 5.39 kWh and 5.37 kWh per day, respectively. The minimal variation in output between seasons indicates that Mukah is an excellent location for year-round solar energy production. Spring appears to be the most productive season, likely due to clearer skies and optimal sun angles. However, the difference between the highest and lowest producing seasons is less than 1 kWh per day, suggesting consistent performance throughout the year. <h3>Panel Installation Considerations</h3> For fixed solar panel installations in Mukah, the ideal tilt angle to maximize year-round energy production is 2 degrees facing South. This nearly flat orientation is due to the location's proximity to the equator, where the sun's path remains relatively high in the sky throughout the year. <h3>Environmental and Weather Factors</h3> While Mukah's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider: 1. High humidity and rainfall: The tropical climate can lead to increased cloud cover and rainfall, potentially reducing solar irradiance. 2. Dust and particulate matter: Agricultural activities and occasional haze events may deposit particles on solar panels, reducing their efficiency. To mitigate these factors, the following preventative measures can be implemented: <ul> <li>Install panels with a slight tilt to allow for natural cleaning by rainwater</li> <li>Use anti-soiling coatings on panel surfaces</li> <li>Implement regular cleaning and maintenance schedules</li> <li>Consider tracking systems to maximize energy capture during clear periods</li> </ul> By addressing these environmental factors and optimizing panel installation, Mukah can effectively harness its substantial solar energy potential, providing a reliable and sustainable power source throughout the year.

Topography around Mukah

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

The area surrounding Mukah, Malaysia, located at 2.4118°N, 112.0435°E, is characterized by a predominantly flat coastal landscape. This region is part of Sarawak's coastal lowlands, which extend along much of the northwestern coast of Borneo. The topography is generally low-lying, with elevations rarely exceeding 50 meters above sea level. The immediate vicinity of Mukah is dominated by a wide, sandy coastline that gradually transitions into a vast expanse of peat swamp forests further inland. These swampy areas are interspersed with numerous rivers and streams that meander through the landscape, creating a complex network of waterways. The Mukah River, which flows through the town, is one of the prominent features of this coastal plain. As one moves slightly inland from the coast, the terrain remains relatively flat but becomes increasingly characterized by peat soil. This soft, organic-rich soil is a defining feature of the region and has a significant impact on local vegetation and land use. The peat swamp forests that cover much of the area are home to unique ecosystems adapted to these waterlogged conditions. <h3>Suitability for Large-Scale Solar PV</h3> When considering areas nearby Mukah for large-scale solar photovoltaic (PV) installations, several factors come into play. The flat terrain of the coastal plains offers advantages for solar development, as it reduces the need for extensive land preparation and allows for easier installation of solar panels. The most suitable areas for large-scale solar PV near Mukah would likely be found on slightly elevated ground away from the immediate coastline and swampy areas. These locations would ideally be: 1. Areas of cleared land or former agricultural sites that are no longer in use. Such locations would minimize the need for deforestation and reduce environmental impact. 2. Regions with good road access, preferably close to existing power infrastructure to facilitate grid connection. 3. Zones that are less prone to flooding, as the low-lying nature of the region can make some areas vulnerable to inundation during heavy rains or storm surges. 4. Locations that are not part of protected peat swamp forests or other ecologically sensitive areas. It's worth noting that while the flat terrain is advantageous, the high humidity and frequent cloud cover in this tropical region may pose challenges for solar energy generation. Therefore, careful site selection and thorough feasibility studies would be crucial to identify the most promising locations for large-scale solar PV installations in the vicinity of Mukah.

Technical location reference

Approximate map point used for Mukah, Malaysia

This coordinate is the calculation reference for Mukah, Malaysia. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
2.411800000000000000, 112.043500000000000000
Originally displayed coordinate
lat2.4118 / long112.0435

How the estimate works

How this Mukah estimate was calculated

Here is how I calculated the location estimate for Mukah, Malaysia.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Mukah Location estimate includes and leaves out

Use the Mukah figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
