Solar Energy Potential in Semenyih, Selangor, Malaysia

Semenyih, Selangor, Malaysia, located at 2.9957° North and 101.8012° East, offers excellent conditions for solar photovoltaic (PV) energy generation throughout the year. This tropical location benefits from consistent sunlight patterns that make it particularly suitable for solar energy investments. The seasonal solar production data shows remarkable consistency across the year. In Spring, solar panels can generate approximately 5.70 kWh per day for each kilowatt of installed capacity, making it the most productive season. Autumn follows closely with 5.57 kWh/day, while Summer produces 5.39 kWh/day. Even during Winter, which is the least productive season, solar panels still generate a substantial 5.20 kWh/day. This minimal seasonal variation (less than 10% difference between the highest and lowest producing seasons) is a significant advantage compared to locations further from the equator, where winter production can drop dramatically. For Semenyih, Selangor, this means solar installations can provide reliable power generation year-round without extended periods of low output.

Optimal Installation Parameters

For fixed solar panel installations in Semenyih, Selangor, the ideal tilt angle to maximize year-round energy production is just 2 degrees facing South. This nearly flat orientation reflects Semenyih's proximity to the equator, where the sun passes almost directly overhead throughout the year.

Environmental and Weather Considerations

Despite the favorable solar conditions, there are some environmental factors that can affect solar production in Semenyih:

• Heavy rainfall during the monsoon season (typically October to March) can temporarily reduce solar output due to cloud cover.
• Haze episodes from regional forest fires, particularly during the dry season, can significantly diminish solar radiation reaching panels.
• High humidity levels can cause accelerated degradation of electronic components if not properly protected.
• Dust accumulation during dry periods can gradually reduce panel efficiency.

Preventative Measures

To maximize solar production despite these challenges, several preventative measures are recommended:

• Install self-cleaning panels or implement regular cleaning schedules, especially before and after the dry season.
• Use high-quality, humidity-resistant components with appropriate IP (Ingress Protection) ratings.
• Consider slightly increasing the tilt angle beyond the optimal 2 degrees to facilitate better self-cleaning during rainfall.
• Implement robust lightning protection systems, as thunderstorms are common in tropical regions.
• Use anti-soiling coatings on panels to reduce dust accumulation.

With these considerations addressed, Semenyih remains an excellent location for solar PV installations, with its consistent year-round production offering reliable returns on investment and significant contributions to renewable energy goals.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

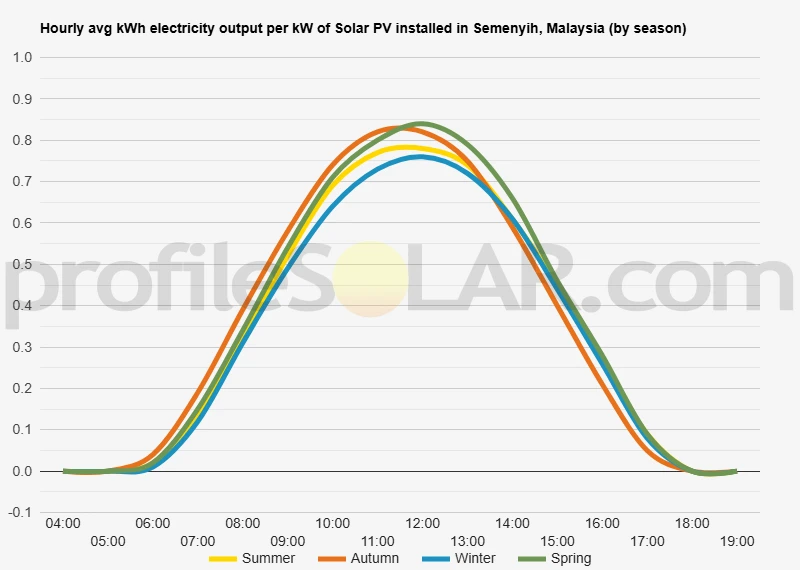

Solar output per kW of installed solar PV by season in Semenyih

Seasonal solar PV output for Latitude: 2.9957, Longitude: 101.8012 (Semenyih, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 2° South in Semenyih, Malaysia

To maximize your solar PV system's energy output in Semenyih, Malaysia (Lat/Long 2.9957, 101.8012) throughout the year, you should tilt your panels at an angle of 2° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Semenyih, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Semenyih, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 2° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	9° South in Autumn	18° South in Winter	3° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Semenyih, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Semenyih, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Semenyih, Malaysia

The topography around Semenyih, Malaysia presents a diverse landscape characterized by a mix of gently rolling hills, valleys, and flatlands. Located in the state of Selangor, Semenyih sits at the foothills of the Titiwangsa Mountains, which form part of Malaysia's main mountain range. This positioning creates a transition zone between the mountainous terrain to the east and the more level coastal plains to the west. To the east of Semenyih, the elevation gradually increases as the land rises toward the Titiwangsa Range. These areas feature more pronounced hills and ridges, with some slopes covered in dense tropical vegetation. The hills become progressively steeper as one moves further eastward, eventually developing into the more substantial mountains that form the backbone of Peninsular Malaysia.

Valley Features and Waterways

Semenyih is notably situated within the watershed of the Semenyih River (Sungai Semenyih), which has carved valleys through the landscape over time. The river and its tributaries have created natural drainage systems throughout the region, forming alluvial plains in some areas. The Semenyih Dam and Reservoir, located to the northeast of the town center, represents a significant modification to the natural topography, creating a large water body surrounded by forested hills. The valley floors around Semenyih tend to be relatively flat and have historically been utilized for agriculture, particularly oil palm and rubber plantations. These areas have experienced considerable development in recent decades, with urban expansion gradually replacing agricultural land.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, the most suitable areas near Semenyih would be the gently sloping or flat terrains that have good solar exposure. The following regions present particularly favorable conditions: The northwestern plains extending toward Kajang and Bangi offer relatively level terrain that has already seen some development but still contains open areas. These locations benefit from minimal shadowing effects from mountains and good accessibility to existing infrastructure and transmission networks. The southwestern areas toward Dengkil feature more expansive flatlands with fewer tall natural features to cast shadows. These areas receive consistent solar radiation throughout the year due to their open aspect and limited obstruction by high terrain features. Some of the cleared agricultural lands, particularly former palm oil plantations to the south and west of Semenyih, present opportunities for solar development. These areas typically have already been leveled and cleared of dense vegetation, reducing the environmental impact and site preparation costs for solar installations.

Topographical Challenges

The eastern regions closer to the mountains, while scenic, present more challenges for large-scale solar development due to their uneven terrain, steeper slopes, and potential shadowing from hills during certain parts of the day. Additionally, these areas often retain more of their natural forest cover, raising environmental conservation concerns for development. The immediate vicinity of the Semenyih River and its floodplains may pose flooding risks during monsoon seasons, making these areas less ideal for solar infrastructure despite their flat topography. Urban and suburban areas, which have expanded significantly around Semenyih in recent years, offer limited space for large-scale installations, though they might accommodate smaller distributed solar projects on existing structures and brownfield sites. The overall topographical character of the Semenyih region, with its mix of flat areas and gentle slopes within reasonable proximity to existing electrical infrastructure, makes it a potentially viable location for solar energy development, particularly in the western and southwestern sectors where the terrain is most accommodating.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Malaysia?

Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in Malaysia? Please reach out to us and help us keep this information current. Thanks!
