Solar Energy Potential in Simpang Empat, Penang, Malaysia

Simpang Empat, Penang, Malaysia offers excellent conditions for solar energy generation throughout the year. Located in the tropics at coordinates 5.3047, 100.4438, this location benefits from consistent sunlight patterns that make it highly suitable for photovoltaic (PV) installations. The seasonal electricity output shows remarkable consistency across the year. During spring months, solar panels can generate their peak performance at 5.97kWh per day for each kilowatt of installed capacity. Winter follows closely with 5.72kWh/day, while summer produces 5.44kWh/day and autumn yields 5.19kWh/day per kilowatt installed. This minimal seasonal variation is a significant advantage compared to locations in higher latitudes where winter production often drops dramatically. For maximizing year-round energy production, fixed solar panels should be installed at a tilt angle of 5 degrees facing South. This optimal angle has been calculated specifically for this location to capture the maximum possible sunlight throughout the year.

Environmental and Weather Considerations

Several environmental factors could potentially affect solar production in Simpang Empat:

• Heavy rainfall during monsoon seasons can temporarily reduce solar output through cloud cover and direct precipitation
• High humidity levels may cause slight efficiency losses in PV systems
• Dust accumulation, particularly during dry seasons, can gradually reduce panel efficiency
• Potential haze episodes from regional agricultural burning practices

To mitigate these challenges, several preventative measures are recommended. Installing self-cleaning panels or implementing regular cleaning schedules can address dust accumulation. Using high-quality panels with anti-reflective coatings helps maximize light absorption even in hazy conditions. Ensuring proper drainage around ground-mounted systems prevents flooding issues during heavy rains. Additionally, incorporating slight adjustments to the recommended tilt angle might help with natural cleaning during rainstorms while maintaining near-optimal production levels. The consistently high output across all seasons makes Simpang Empat an ideal location for solar energy investment despite these manageable environmental considerations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

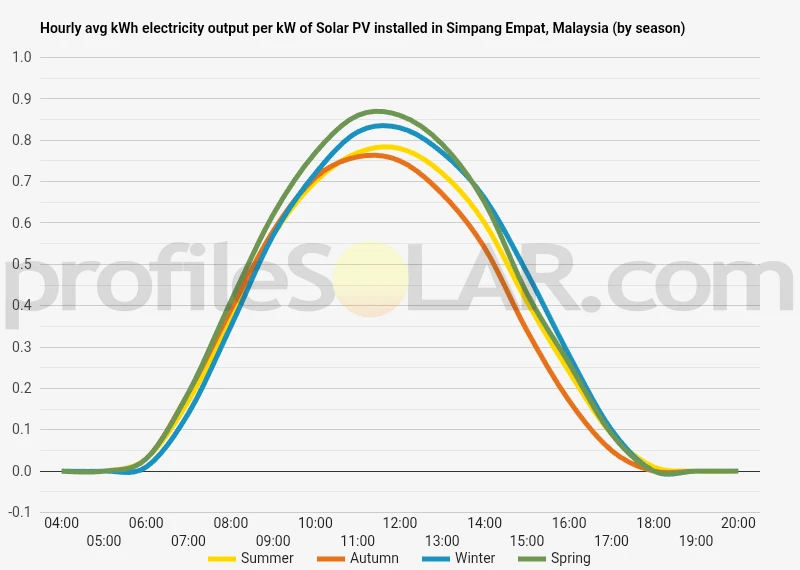

Solar output per kW of installed solar PV by season in Simpang Empat

Seasonal solar PV output for Latitude: 5.3047, Longitude: 100.4438 (Simpang Empat, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 5° South in Simpang Empat, Malaysia

To maximize your solar PV system's energy output in Simpang Empat, Malaysia (Lat/Long 5.3047, 100.4438) throughout the year, you should tilt your panels at an angle of 5° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Simpang Empat, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Simpang Empat, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 5° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	11° South in Autumn	20° South in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Simpang Empat, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Simpang Empat, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Simpang Empat, Malaysia

The landscape around Simpang Empat, located in mainland Penang (also known as Seberang Perai) in Malaysia, presents a diverse topographical profile characterized by a transition from coastal plains to rolling hills. This area, situated near the western coast of Peninsular Malaysia, predominantly features flat to gently undulating terrain that gradually rises eastward.

Coastal Lowlands and Agricultural Plains

Simpang Empat sits within a broader region of coastal lowlands that dominate the western portions of Seberang Perai. These lowlands consist largely of fertile alluvial plains formed by sediment deposition over millennia. The elevation in these areas typically ranges from sea level to about 20 meters above sea level, creating expansive flat stretches ideal for agriculture. Rice paddies, oil palm plantations, and other agricultural activities are common throughout these plains.

Transitional Zones and Undulating Terrain

Moving eastward from Simpang Empat, the landscape gradually transitions to more undulating terrain with modest hills and shallow valleys. This area represents a transitional zone between the coastal plains and the more pronounced hills further inland. The gentle slopes in this region typically range between 20-50 meters in elevation, creating a slightly rolling landscape.

Eastern Hills and Highlands

Further east, the topography becomes more pronounced with hills reaching elevations of 100-300 meters. These highlands form part of the broader central highland spine that runs through Peninsular Malaysia. The terrain here features steeper slopes, deeper valleys, and more varied relief compared to the western portions near Simpang Empat.

Hydrological Features

The area around Simpang Empat is interlaced with numerous streams and small rivers that flow generally westward toward the Strait of Malacca. These waterways have carved shallow valleys throughout the region and contribute to the area's drainage system. Several irrigation canals also crisscross the agricultural plains, supporting the region's farming activities.

Solar PV Suitability Assessment

For large-scale solar photovoltaic (PV) development, several nearby areas present favorable conditions:

Agricultural Plains West of Simpang Empat

The extensive flat agricultural plains stretching west toward the coast offer excellent potential for utility-scale solar installations. These areas benefit from: - Minimal topographical variation requiring little land preparation - Good accessibility via existing road networks - Limited shadowing effects due to the flat terrain - Proximity to existing electrical infrastructure

Gently Undulating Areas South and Southeast

The gently undulating terrain south and southeast of Simpang Empat presents moderate to good potential for solar development. These areas offer: - Sufficient flat or gently sloping land parcels - Potential for optimal panel orientation on south-facing slopes - Reasonable access to transportation infrastructure - Fewer competing land uses compared to prime agricultural zones

Limitations in Eastern Highlands

The more pronounced hills and highlands to the east present greater challenges for large-scale solar deployment due to: - Increased construction and site preparation costs - Potential shadowing effects from hill formations - More difficult access for construction and maintenance - Higher erosion risks on steeper slopes

Considerations Beyond Topography

While topography is favorable in many areas around Simpang Empat, large-scale solar development would need to balance competing land uses, particularly with the region's important agricultural activities. The most suitable areas would likely be those that combine favorable topography with lower agricultural value, good grid connection potential, and minimal environmental sensitivity. The relatively flat coastal plains offer the most straightforward development potential from a purely topographical perspective, though land use considerations may favor the slightly more undulating transitional zones where agricultural productivity might be lower while still maintaining favorable conditions for solar array installation.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Malaysia?

Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.
