Tasek Gelugor, Penang, Malaysia, situated in the tropics, presents a promising location for solar energy generation throughout the year. This area experiences consistent sunlight, with seasons primarily characterized by wet and dry periods rather than traditional temperature-based seasons.

Year-round Solar Performance

The solar energy potential in Tasek Gelugor remains relatively stable across all meteorological seasons. Spring sees the highest output at 5.95 kWh per day for each kilowatt of installed solar capacity, followed closely by winter at 5.75 kWh/day. Summer and autumn show slightly lower but still impressive outputs of 5.44 kWh/day and 5.19 kWh/day, respectively. These figures indicate that Tasek Gelugor is an excellent location for solar PV installations, with strong performance throughout the year. The minimal variation between seasons suggests that solar energy systems in this area can provide a consistent and reliable power supply.

Optimal Panel Placement

For fixed panel installations in Tasek Gelugor, Penang, the ideal tilt angle to maximize year-round solar production is 5 degrees facing South. This relatively low tilt angle is typical for locations near the equator, where the sun's path stays high in the sky throughout the year.

Environmental Considerations

While Tasek Gelugor's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider: 1. High humidity and rainfall: The region's wet seasons can lead to increased cloud cover and rainfall, potentially reducing solar output. 2. Dust and particulate matter: Agricultural activities and industrial processes in the area may contribute to air pollution, which can accumulate on solar panels and decrease efficiency. To mitigate these challenges, consider the following preventative measures:

• Install a reliable cleaning system or schedule regular manual cleaning to remove dust and debris from solar panels.
• Use anti-soiling coatings on panels to reduce dust accumulation and make cleaning easier.
• Implement a slight increase in panel tilt angle (beyond the optimal 5 degrees) to promote natural cleaning by rainfall.
• Choose high-quality, weather-resistant solar panels designed to perform well in humid, tropical conditions.

By addressing these factors, solar installations in Tasek Gelugor can maximize their energy production potential and take full advantage of the area's favorable solar conditions throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 77 locations across Malaysia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Malaysia by location

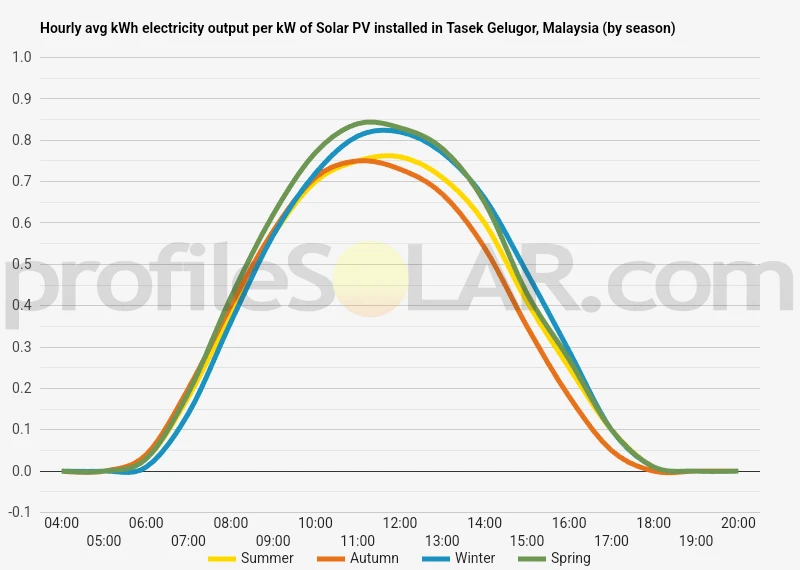

Solar output per kW of installed solar PV by season in Tasek Gelugor

Seasonal solar PV output for Latitude: 5.368, Longitude: 100.3039 (Tasek Gelugor, Malaysia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 5° South in Tasek Gelugor, Malaysia

To maximize your solar PV system's energy output in Tasek Gelugor, Malaysia (Lat/Long 5.368, 100.3039) throughout the year, you should tilt your panels at an angle of 5° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tasek Gelugor, Malaysia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tasek Gelugor, Malaysia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 5° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	11° South in Autumn	20° South in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tasek Gelugor, Malaysia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tasek Gelugor, Malaysia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tasek Gelugor, Malaysia

The area surrounding Tasek Gelugor, Malaysia, is characterized by a diverse topography that reflects the region's geological history and human influence. Located in the northwestern part of Peninsular Malaysia, this area features a mix of low-lying coastal plains and gently rolling hills. Near the coast, which is approximately 10 kilometers to the west of Tasek Gelugor, the terrain is predominantly flat and low-lying. This coastal plain is part of the larger Kedah-Perlis Plain, known for its fertile soil and extensive rice cultivation. The land here is generally less than 10 meters above sea level, with numerous irrigation canals and small rivers crisscrossing the landscape. As one moves inland and slightly eastward from Tasek Gelugor, the topography gradually transitions to more undulating terrain. Here, small hills and ridges begin to emerge, creating a patchwork of elevated areas interspersed with shallow valleys. These hills typically range from 20 to 100 meters in height, offering a gentle contrast to the flatlands near the coast. Further east, about 15 to 20 kilometers from Tasek Gelugor, the landscape becomes more pronounced with higher hills and steeper slopes. This area marks the beginning of the central mountain range that runs through the spine of Peninsular Malaysia. However, compared to the more mountainous regions further inland, these hills are still relatively modest in elevation, rarely exceeding 300 meters.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would combine favorable topography with practical considerations such as land availability and proximity to existing infrastructure. The flat coastal plains to the west of Tasek Gelugor present promising opportunities for solar PV development. These areas offer large, unobstructed spaces that receive ample sunlight throughout the year. The lack of significant elevation changes makes construction and maintenance easier. However, potential flooding risks and competition with agricultural land use should be carefully evaluated. The gently rolling hills to the east and southeast of Tasek Gelugor also show potential for solar PV installations. These slightly elevated areas may benefit from reduced flood risk and could potentially capture more sunlight due to their sloped surfaces. The varied topography might allow for creative panel arrangements to maximize energy capture. It's important to note that while the hilly regions further east may seem attractive due to their elevation, the steeper slopes and more complex terrain could increase installation costs and complicate maintenance procedures. Additionally, these areas might have more vegetation cover, which would need to be cleared, potentially raising environmental concerns. Ultimately, the most suitable areas for large-scale solar PV near Tasek Gelugor would likely be found in the transition zones between the coastal plains and the beginning of the hilly regions. These areas could offer a balance of favorable topography, adequate land availability, and reasonable proximity to existing power infrastructure, making them prime candidates for solar energy development in the region.

Malaysia solar PV Stats as a country

Malaysia ranks 33rd in the world for cumulative solar PV capacity, with 1,787 total MW's of solar PV installed. This means that 2.40% of Malaysia's total energy as a country comes from solar PV (that's 32nd in the world). Each year Malaysia is generating 55 Watts from solar PV per capita (Malaysia ranks 51st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Malaysia?

Yes, there are several incentives for businesses wanting to install solar energy in Malaysia. The Malaysian government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Fund (REF), which provides grants and loans to support the development of renewable energy projects; the Green Technology Financing Scheme (GTFS), which provides financing for green technology investments; and the Feed-in Tariff (FiT) scheme, which guarantees a fixed price for electricity generated from renewable sources. Additionally, businesses may be eligible for capital allowances on their investments in solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in Malaysia? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.

Helping you assess viability of solar PV for your site

Calculate Your Optimal Solar Panel Tilt Angle: A Comprehensive Guide

Enhance your solar panel's performance with our in-depth guide. Determine the best tilt angle using hard data, debunk common misunderstandings, and gain insight into how your specific location affects solar energy production.
