Bhalil, Morocco presents a very good location for year-round solar energy generation, though with notable seasonal variations that are typical for its Northern Sub Tropical position.

Seasonal Solar Performance

The solar energy output at Bhalil shows strong seasonal patterns. Summer delivers the highest production at 7.79kWh per day for each kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best season with 6.51kWh per day per kW, while autumn produces 5.04kWh per day per kW. Winter represents the lowest production period at 3.78kWh per day per kW, though this output remains respectable for solar energy generation. For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 30 degrees facing South. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance potential.

Environmental Factors Affecting Solar Production

Several environmental factors in the Bhalil region could potentially impact solar energy production:

• Desert dust and sand particles carried by winds from the Sahara can accumulate on solar panels, reducing their efficiency significantly
• Occasional sandstorms may temporarily reduce solar irradiance and deposit substantial amounts of dust
• High summer temperatures, while providing excellent solar irradiance, can reduce panel efficiency
• Seasonal rainfall patterns may cause temporary reductions in solar output during cloudy periods

Preventative Measures for Optimal Performance

To maintain high solar energy production despite these environmental challenges, several measures should be implemented during installation and maintenance: Regular cleaning systems are essential, with automated washing systems or scheduled manual cleaning helping remove dust accumulation. Installing panels with anti-soiling coatings can reduce dust adhesion and make cleaning more effective. Proper ventilation around panels helps manage high temperature effects by allowing air circulation to cool the panels naturally. Mounting systems should provide adequate spacing between panels and roofing surfaces. Robust mounting systems designed to withstand occasional sandstorms ensure panels remain secure and properly oriented. Quality inverters with temperature management systems help maintain efficiency during hot periods. Overall, Bhalil offers excellent potential for solar energy generation throughout the year, with summer and spring being particularly productive seasons. With appropriate installation techniques and maintenance practices, the environmental challenges can be effectively managed to ensure consistent, high-quality solar energy production.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 43 locations across Morocco. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Morocco by location

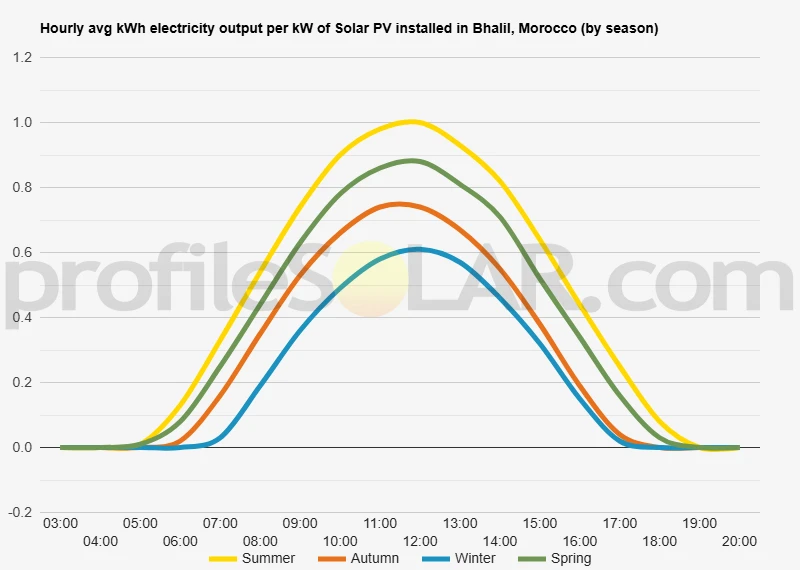

Solar output per kW of installed solar PV by season in Bhalil

Seasonal solar PV output for Latitude: 33.8442, Longitude: -4.8743 (Bhalil, Morocco), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° South in Bhalil, Morocco

To maximize your solar PV system's energy output in Bhalil, Morocco (Lat/Long 33.8442, -4.8743) throughout the year, you should tilt your panels at an angle of 30° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bhalil, Morocco

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bhalil, Morocco. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° South in Summer	38° South in Autumn	49° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bhalil, Morocco

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bhalil, Morocco.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bhalil, Morocco

Topographical Features Around Bhalil

Bhalil sits in the Middle Atlas foothills of Morocco, positioned at an elevation of approximately 850 meters above sea level. The town occupies a transitional zone between the fertile Saïs Plain to the west and the rising Atlas Mountains to the south and east. This location creates a distinctive landscape characterized by rolling hills, gentle slopes, and scattered valleys that drain toward the Sebou River basin.

The immediate terrain around Bhalil features undulating topography with moderate elevation changes. The landscape consists of sedimentary formations typical of the Middle Atlas region, including limestone plateaus and clay-rich soils that support agricultural activities. Small wadis and seasonal watercourses cut through the terrain, creating natural drainage patterns that flow generally westward toward the Atlantic watershed.

To the north and west of Bhalil, the topography becomes progressively flatter as it approaches the Saïs Plain, one of Morocco's important agricultural regions. This area features broad, gently sloping terrain with minimal elevation variation. The southeastern direction reveals more pronounced topographical relief as the land rises toward the higher elevations of the Middle Atlas Mountains, including the prominent Jbel Bou Naceur massif.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Bhalil would be found on the northwestern and western flanks of the town, where the terrain transitions toward the Saïs Plain. These areas offer several advantages including relatively flat topography that minimizes grading requirements, reduced construction complexity, and lower development costs compared to more mountainous terrain.

The broad, open landscapes approximately 10-15 kilometers northwest of Bhalil present particularly favorable conditions. These locations feature gentle gradients typically ranging from 1-3 degrees, which are ideal for optimizing solar panel orientation while maintaining efficient land use. The terrain in this direction also tends to have fewer natural obstacles such as deep valleys or rocky outcrops that could create shading issues or complicate installation procedures.

Areas to the immediate west and southwest of Bhalil also show promise for solar development. The topography here consists of rolling hills with moderate slopes that could accommodate large installations with appropriate site preparation. These locations benefit from being situated on elevated ground that provides good drainage and reduces the risk of flooding during Morocco's occasional heavy rainfall events.

The southeastern areas closer to the Atlas foothills would be less suitable for large-scale solar development due to increasing terrain complexity, steeper slopes, and potential shading from higher elevations. However, some of the broader valley floors in this direction could potentially accommodate smaller installations if properly oriented to maximize solar exposure while working within the constraints of the more challenging topography.

Morocco solar PV Stats as a country

Morocco ranks 45th in the world for cumulative solar PV capacity, with 774 total MW's of solar PV installed. This means that 1.30% of Morocco's total energy as a country comes from solar PV (that's 36th in the world). Each year Morocco is generating 21 Watts from solar PV per capita (Morocco ranks 65th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Morocco?

Yes, there are several incentives for businesses wanting to install solar energy in Morocco. The Moroccan government has implemented a number of policies and programs to encourage the adoption of renewable energy sources, including solar energy. These include tax credits, subsidies, and feed-in tariffs that provide financial support for businesses investing in solar power systems. Additionally, the Moroccan Agency for Sustainable Energy (MASEN) provides technical assistance and financing options to help businesses with their solar projects.

Do you have more up to date information than this on incentives towards solar PV projects in Morocco? Please reach out to us and help us keep this information current. Thanks!
