Location estimate

Amersfoort

Utrecht · Netherlands

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

5.42

kWh/day

Autumn

2.14

kWh/day

Winter

1.01

kWh/day

Spring

4.36

kWh/day

Shared scale: 0–6.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Amersfoort, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 5.42 5.42 × 1 kWp = 5.42 kWh/day
Autumn 2.14 2.14 × 1 kWp = 2.14 kWh/day
Winter 1.01 1.01 × 1 kWp = 1.01 kWh/day
Spring 4.36 4.36 × 1 kWp = 4.36 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
5.42
Autumn · kWh/day
2.14
Winter · kWh/day
1.01
Spring · kWh/day
4.36

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 44 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
44°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
36°South
Autumn
Sep, Oct, Nov
55°South
Winter
Dec, Jan, Feb
65°South
Spring
Mar, Apr, May
44°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Amersfoort, Utrecht, Netherlands.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 36 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

36° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 55 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

55° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 65 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

65° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 44 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

44° tilt · South

Illustrative direction; exact azimuth not recorded.

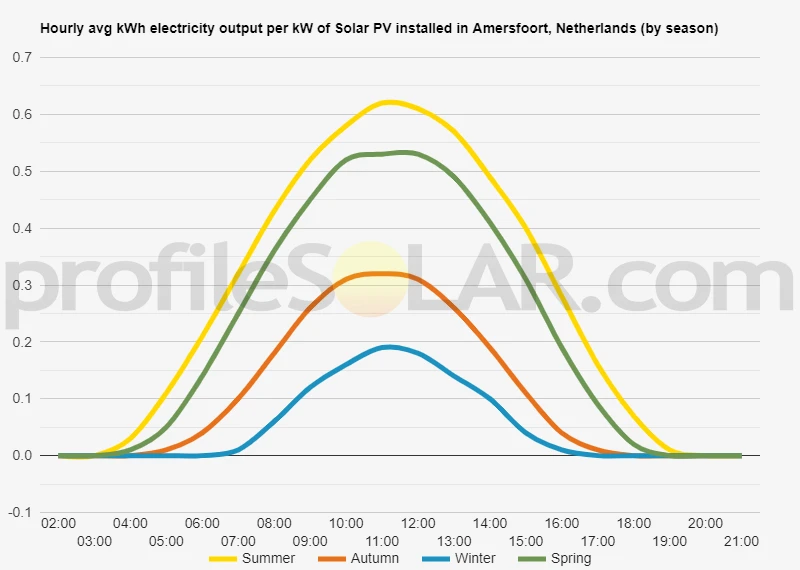

Historical hourly-by-season solar output chart for Amersfoort, Netherlands. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Amersfoort, Netherlands

Hourly profiles by season — Amersfoort, Netherlands · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Amersfoort, Netherlands · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Amersfoort

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 6.85 m

Proportional side viewDesign sun: ≈ 14.39° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 5.41 m
Added margin
≈ 0 m
Gap including margin
≈ 5.41 m
Panel horizontal footprint
≈ 1.44 m
Panel vertical rise
≈ 1.39 m
Pitch before margin
≈ 6.85 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
44°
Added margin
0 m
Latitude from the catalogue
52.159200000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.4386796006773024 m
Panel vertical rise
1.3893167409179945 m
Calculated clear gap
5.4145554966044 m
Pitch before margin
6.853235097281702 m
Gap including margin
5.4145554966044 m
Row pitch including margin
6.853235097281702 m
Design solar elevation
14.39101715318635°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Amersfoort

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Amersfoort lies where several landscapes meet: the wooded Utrechtse Heuvelrug, the sandy Gelderse Vallei and the lower Eemland setting. The Eem and its tributary corridors connect that varied ground with the developed city, giving individual buildings quite different surroundings.

Read the full article

Our seasonal comparison shows estimated average daily electricity of 5.42 kWh/day in summer, 4.36 kWh/day in spring, 2.14 kWh/day in autumn and 1.01 kWh/day in winter, for each 1 kW of rated panel capacity. Summer and spring provide the larger means. The smaller winter contribution should remain visible when considering the relationship between generation and demand. The year-round reference is 44° from horizontal, facing South. It is a broad output-weighted setting based on simplified solar geometry. The seasonal electricity figures do not model additional gains from adjusting panel angle. In the sandy valley landscape, small ridges, streams, planted boundaries and irregular parcels create a more enclosed pattern than a flat map might suggest. Coelhorst and Park Schothorst provide local examples of spaces framed by vegetation. Those trees and estate landscapes are useful context for assessing the nearby horizon from a roof. A building assessment can therefore focus on the actual mounting surface and surrounding canopy or façades. The mild-climate description cannot establish an absence of weather or shading challenges. Likewise, open land in neighbouring settlements should not be presented as a selected development site without its own land-use and site information.

Topography around Amersfoort

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Amersfoort stands at the transition between the Utrechtse Heuvelrug, Gelderse Vallei and Eemland. The higher, wooded ridge landscape contrasts with the lower sandy valley and river-related ground.

Read the full topography description

The Gelderse Vallei includes modest sand ridges, lower areas and stream courses. Outside the developed city, irregular fields and planted boundaries create a small-scale landscape. Coelhorst and Park Schothorst show how groups of spaces can be framed by trees and other vegetation. The Eem cuts through the lower terrain, while estates and wooded ground mark parts of the ridge's flank. These differences mean that a regional description of flatness misses important variation in the immediate outlook of buildings and parcels. For solar assessment, the chosen surface should be considered with its own neighbouring trees, structures and horizon. Agricultural and estate landscapes retain existing uses. The topography does not establish that land in Barneveld, Leusden or another nearby settlement is available or especially sunny.

Technical location reference

Approximate map point used for Amersfoort, Netherlands

This coordinate is the calculation reference for Amersfoort, Netherlands. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
52.159200000000000000, 5.384900000000000000
Originally displayed coordinate
lat52.1592 / long5.3849

How the estimate works

How this Amersfoort estimate was calculated

Here is how I calculated the location estimate for Amersfoort, Netherlands.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Amersfoort Location estimate includes and leaves out

Use the Amersfoort figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
