Solar Energy Potential in Grave, North Brabant, Netherlands

The town of Grave in the Netherlands, situated at 51.7582°N, 5.7332°E, presents a moderate opportunity for solar energy generation throughout the year. Located in the Northern Temperate Zone, this area experiences significant seasonal variations in solar output. Summer months offer the most promising conditions for solar energy production, with an average daily output of 5.35kWh per kW of installed solar capacity. Spring follows closely behind, generating 4.56kWh/day. These seasons provide ideal conditions for maximizing solar energy harvesting. Autumn sees a considerable drop in solar potential, with daily production averaging 2.33kWh per kW installed. Winter presents the greatest challenge, with output plummeting to just 1.17kWh/day. This stark contrast highlights the importance of efficient energy storage solutions to balance the seasonal fluctuations.

Optimal Panel Installation

To maximize year-round solar energy production in Grave, North Brabant, fixed solar panels should be installed at a tilt angle of 44 degrees facing south. This angle has been calculated to optimize energy capture across all seasons, taking into account the Earth's elliptical orbit and the location's specific solar elevation angles.

Environmental Considerations

While Grave's location is generally favorable for solar energy, there are some environmental factors to consider: 1. Cloud cover: The Netherlands is known for its frequent overcast conditions, which can significantly reduce solar panel efficiency. 2. Rainfall: The region experiences consistent rainfall throughout the year, which may impact solar output. To mitigate these challenges, consider implementing the following measures:

• Use high-efficiency solar panels designed to perform well in low-light conditions
• Install a robust cleaning system to remove dirt and debris, ensuring optimal panel performance
• Implement smart inverter technology to maximize energy harvesting during periods of variable sunlight

By addressing these factors and optimizing panel installation, Grave can effectively harness solar energy despite its seasonal variations and environmental challenges.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 364 locations across Netherlands. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Netherlands by location

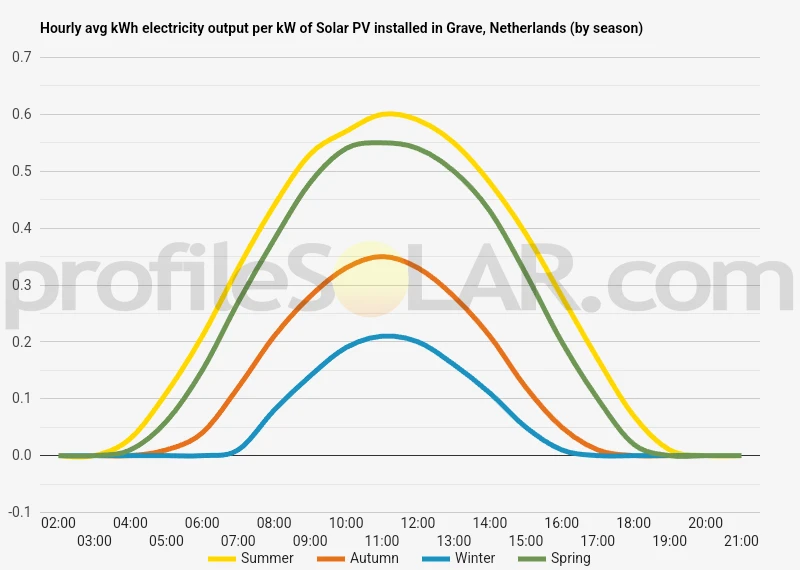

Solar output per kW of installed solar PV by season in Grave

Seasonal solar PV output for Latitude: 51.7582, Longitude: 5.7332 (Grave, Netherlands), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Grave, Netherlands

To maximize your solar PV system's energy output in Grave, Netherlands (Lat/Long 51.7582, 5.7332) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Grave, Netherlands

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Grave, Netherlands. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	54° South in Autumn	65° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Grave, Netherlands

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Grave, Netherlands.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Grave, Netherlands

The area surrounding Grave, Netherlands, is characterized by a predominantly flat landscape typical of the Dutch lowlands. This region, situated in the province of North Brabant, is part of the larger Rhine-Meuse-Scheldt delta. The topography is marked by its low elevation, with most of the land lying just a few meters above sea level. The immediate vicinity of Grave is dominated by the Meuse River, which flows past the town's eastern edge. The river's presence has shaped the local landscape over millennia, creating a gentle floodplain with subtle variations in elevation. To the north and south of Grave, the land stretches out in expansive, open fields interspersed with small patches of woodland and scattered farmsteads. West of Grave, the terrain remains largely flat but transitions into a slightly more varied landscape. Here, one can find a mix of agricultural land, meadows, and small forested areas. The soil in this region is primarily composed of river clay and sand deposits, a legacy of the area's geological history as part of the river delta system.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The flat, open nature of the landscape surrounding Grave provides excellent potential for solar energy development. However, some areas are more suitable than others. The agricultural lands to the south and southwest of Grave offer promising locations for solar PV projects. These areas benefit from expansive, unobstructed fields that receive ample sunlight throughout the day. The lack of significant elevation changes also simplifies the installation process and reduces potential shading issues. Another suitable area lies to the northwest of Grave, where there are large tracts of open land with minimal tree cover. This region's distance from the Meuse River reduces the risk of flooding, making it a more stable environment for long-term solar infrastructure. It's important to note that while the topography is favorable for solar PV, other factors such as grid connectivity, local zoning regulations, and environmental considerations would need to be carefully evaluated before implementing any large-scale solar projects in the region. Additionally, the agricultural importance of much of the land in this area may present challenges in terms of land use competition between solar energy development and food production.

Netherlands solar PV Stats as a country

Netherlands ranks 12th in the world for cumulative solar PV capacity, with 14,249 total MW's of solar PV installed. This means that 8.90% of Netherlands's total energy as a country comes from solar PV (that's 7th in the world). Each year Netherlands is generating 817 Watts from solar PV per capita (Netherlands ranks 1st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Netherlands?

Yes, there are several incentives for businesses wanting to install solar energy in the Netherlands. The Dutch government offers a number of financial incentives and subsidies for businesses that invest in renewable energy sources such as solar power. These include grants, tax credits, and low-interest loans. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional funding through the European Union's Horizon 2020 program.

Do you have more up to date information than this on incentives towards solar PV projects in Netherlands? Please reach out to us and help us keep this information current. Thanks!
