Ingen, Gelderland, Netherlands, located in the Northern Temperate Zone, presents a mixed picture for year-round solar PV energy generation. The location experiences significant seasonal variation in solar output, which is typical for this latitude.

Seasonal Solar Performance

The solar energy production at this location varies dramatically throughout the year. Summer delivers the strongest performance at 5.29 kWh per day per kW of installed capacity, making it the prime season for solar generation. Spring follows as the second-best period with 4.49 kWh per day per kW, offering nearly comparable output to summer months. Autumn sees a notable decline to 2.26 kWh per day per kW, while winter represents the most challenging period with just 1.11 kWh per day per kW of installed solar capacity. This winter figure is less than a quarter of the summer output, highlighting the seasonal dependency of solar generation at this northern European location.

Optimal Installation Setup

For a fixed panel installation at Ingen, Gelderland, the ideal angle to tilt panels to maximise total year-round production from solar PV is 44 degrees facing south. This calculation accounts for the location's latitude and optimizes energy capture across all seasons by weighing daily solar elevation angles against actual solar irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Netherlands can significantly impact solar energy production at this location:

• Frequent cloud cover and overcast skies, particularly during autumn and winter months
• High humidity levels that can reduce solar panel efficiency
• Regular precipitation throughout the year
• Potential for snow accumulation during winter months
• Strong winds from the North Sea that can carry salt and debris

Preventative Measures for Enhanced Production

To maximize solar energy output despite these challenges, several installation strategies can be implemented:

• Install panels with adequate spacing to prevent shading and allow proper air circulation for cooling
• Use mounting systems that facilitate easy cleaning and maintenance access
• Consider anti-reflective coatings on panels to improve performance in diffused light conditions
• Implement proper drainage systems to prevent water pooling around installations
• Choose panels with good low-light performance characteristics
• Install monitoring systems to quickly identify and address performance issues

Regular maintenance becomes particularly important in this climate, including periodic cleaning to remove accumulated dirt, debris, and potential salt deposits from coastal weather patterns. Snow removal systems or steep mounting angles can help minimize winter snow accumulation that would otherwise block panel surfaces. While Ingen's location presents challenges typical of northern European climates, proper system design and maintenance can help optimize the available solar resource, particularly during the productive spring and summer months when output is substantially higher.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 364 locations across Netherlands. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Netherlands by location

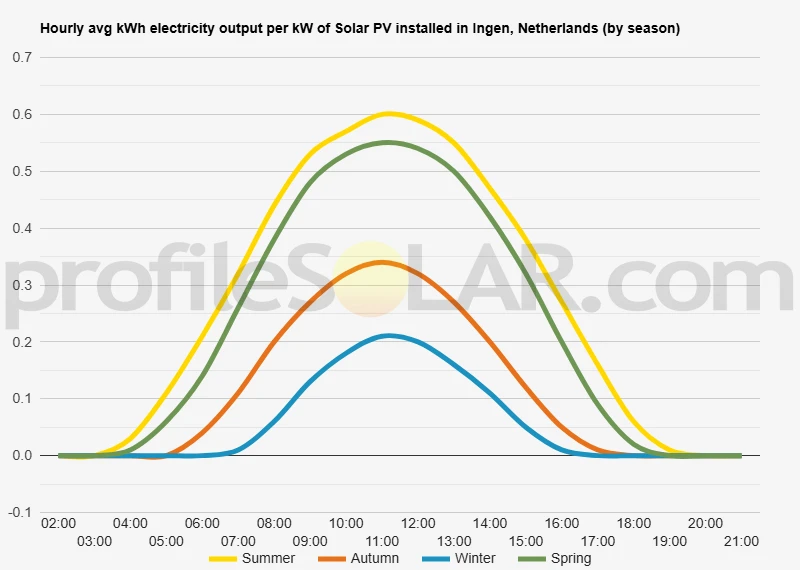

Solar output per kW of installed solar PV by season in Ingen

Seasonal solar PV output for Latitude: 51.9634, Longitude: 5.4851 (Ingen, Netherlands), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Ingen, Netherlands

To maximize your solar PV system's energy output in Ingen, Netherlands (Lat/Long 51.9634, 5.4851) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ingen, Netherlands

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ingen, Netherlands. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	54° South in Autumn	65° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ingen, Netherlands

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ingen, Netherlands.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ingen, Netherlands

Topography Around Ingen, Netherlands

The topography around Ingen in the Netherlands is characterized by the gently undulating landscape typical of the Dutch river region. This area sits within the Betuwe, a fertile agricultural region nestled between the major rivers Rhine and Waal. The terrain consists of predominantly flat to very gently rolling countryside, with elevations rarely exceeding 20 meters above sea level. The landscape has been shaped by centuries of river activity, creating a patchwork of fertile alluvial soils interspersed with slightly elevated natural levees along former and current waterways.

The immediate vicinity of Ingen features expansive agricultural fields, primarily used for fruit cultivation including apple and pear orchards, as well as arable farming. These fields are typically large and unobstructed, separated by drainage ditches and occasional tree lines. The area benefits from excellent drainage infrastructure, a hallmark of Dutch water management, with an intricate network of canals, ditches, and pumping stations maintaining optimal water levels throughout the region.

Small settlements and farmsteads are scattered throughout the landscape, connected by a network of rural roads and cycling paths. The built environment remains relatively sparse outside the village centers, with most development concentrated along the higher ground near the rivers and main transportation corridors.

Optimal Areas for Large-Scale Solar PV Development

The flat, open agricultural lands surrounding Ingen present excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas would be the expansive fields located to the south and east of the village, where the terrain is particularly level and free from significant obstructions. These areas benefit from minimal shading throughout the day due to the absence of hills, forests, or tall structures.

The agricultural fields currently used for arable crops rather than permanent orchards would be most appropriate for solar development, as they lack the established tree infrastructure that would create shading issues. Areas with good road access for construction and maintenance vehicles would be particularly advantageous, especially those connected to the existing rural road network.

The proximity to existing electrical infrastructure along the main roads and near residential areas would facilitate grid connection for large solar installations. Fields located within reasonable distance of substations or major power lines would minimize the costs and complexity of connecting solar arrays to the electrical grid.

Areas with stable soil conditions and good drainage would be preferable to ensure long-term stability of solar mounting systems. The well-drained agricultural soils typical of this region generally provide suitable foundation conditions for ground-mounted solar arrays, while the established drainage infrastructure helps prevent waterlogging that could complicate installation and maintenance activities.

Netherlands solar PV Stats as a country

Netherlands ranks 12th in the world for cumulative solar PV capacity, with 14,249 total MW's of solar PV installed. This means that 8.90% of Netherlands's total energy as a country comes from solar PV (that's 7th in the world). Each year Netherlands is generating 817 Watts from solar PV per capita (Netherlands ranks 1st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Netherlands?

Yes, there are several incentives for businesses wanting to install solar energy in the Netherlands. The Dutch government offers a number of financial incentives and subsidies for businesses that invest in renewable energy sources such as solar power. These include grants, tax credits, and low-interest loans. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional funding through the European Union's Horizon 2020 program.

Do you have more up to date information than this on incentives towards solar PV projects in Netherlands? Please reach out to us and help us keep this information current. Thanks!
