Lochem, Gelderland, Netherlands, situated at latitude 52.1611 and longitude 6.4124, presents a mixed picture for solar energy generation throughout the year. This location in the Northern Temperate Zone experiences significant seasonal variations in solar output, which impacts the overall efficiency of photovoltaic (PV) systems.

Seasonal Solar Performance

The solar energy production in Lochem follows a predictable pattern aligned with the changing seasons. Summer stands out as the most productive period, with an impressive daily output of 5.32 kWh per kW of installed solar capacity. Spring follows closely, generating 4.24 kWh/day. However, the colder months see a substantial drop in energy production, with autumn yielding 2.18 kWh/day and winter plummeting to a mere 1.05 kWh/day.

This stark contrast between seasons highlights the challenges of relying solely on solar power in Lochem. While the summer months offer excellent energy generation potential, the winter period presents significant limitations due to shorter days and less direct sunlight.

Optimal Panel Configuration

To maximize year-round solar energy production in Lochem, Gelderland, fixed solar panels should be tilted at an angle of 44 degrees facing south. This optimal angle has been calculated to balance the varying solar elevations throughout the year, ensuring the best possible energy capture across all seasons.

Environmental Considerations

Several environmental factors in Lochem can impact solar energy production: 1. Cloud cover: The Netherlands is known for its frequent overcast conditions, which can significantly reduce solar panel efficiency. 2. Rain and humidity: High levels of precipitation and humidity can lead to dirt accumulation on panels, potentially decreasing their performance.

To mitigate these issues, consider implementing the following measures: - Install self-cleaning panels or schedule regular cleaning to combat dirt buildup. - Use high-quality, weather-resistant panels designed to perform well in humid conditions. - Implement a robust drainage system to prevent water accumulation on or around the panels.

While Lochem's location presents challenges for year-round solar energy production, particularly during the winter months, proper panel installation and maintenance can help maximize the available solar resources. The substantial energy generation during spring and summer can partially offset the reduced output in autumn and winter, making solar PV a viable, though variable, energy source for this Dutch municipality.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 364 locations across Netherlands. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Netherlands by location

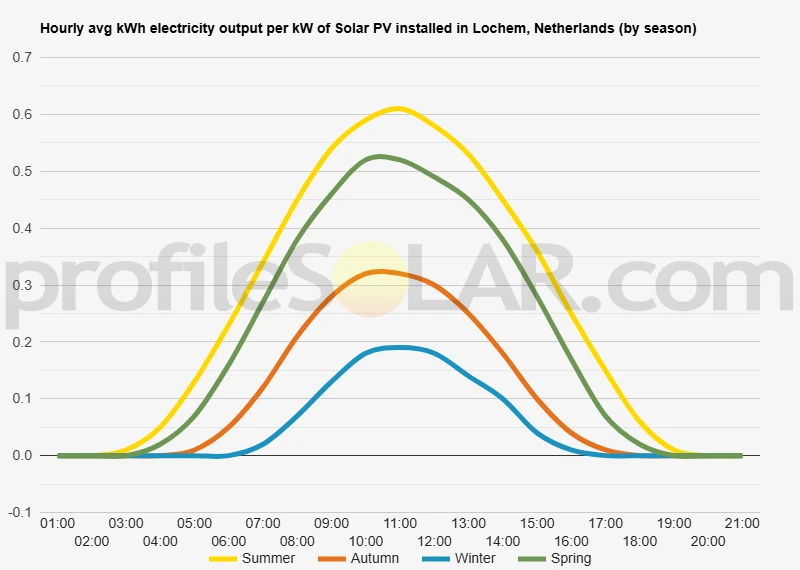

Solar output per kW of installed solar PV by season in Lochem

Seasonal solar PV output for Latitude: 52.1611, Longitude: 6.4124 (Lochem, Netherlands), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Lochem, Netherlands

To maximize your solar PV system's energy output in Lochem, Netherlands (Lat/Long 52.1611, 6.4124) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Lochem, Netherlands

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Lochem, Netherlands. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
36° South in Summer	55° South in Autumn	65° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Lochem, Netherlands

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Lochem, Netherlands.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Lochem, Netherlands

The area surrounding Lochem, Netherlands, is characterized by a gentle, rolling landscape typical of the eastern part of the country. This region, known as the Achterhoek, features a mix of agricultural land, small forests, and scattered settlements. The terrain is predominantly flat to slightly undulating, with subtle elevation changes that create a picturesque rural setting. Lochem itself is situated on slightly higher ground compared to its immediate surroundings, with the land gradually sloping down towards the nearby Berkel River. The area is dotted with small hills and ridges, remnants of ancient glacial activity that shaped the landscape thousands of years ago. These modest elevations rarely exceed 30 meters above sea level, contributing to the overall gentle topography of the region. The countryside around Lochem is a patchwork of open fields, meadows, and small wooded areas. This diverse landscape is intersected by numerous small streams and drainage canals, which play a crucial role in water management for the largely agricultural area. The soil in this region is primarily sandy, with some areas of loam and clay, influenced by the historical presence of rivers and glaciers.

Potential Areas for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near Lochem, several factors come into play. The most suitable areas would likely be found in the open agricultural lands surrounding the town. These expansive, flat fields provide ideal conditions for solar panel arrays, offering minimal shading and maximum exposure to sunlight. Particularly promising are the areas to the north and east of Lochem, where larger tracts of uninterrupted farmland can be found. These locations not only provide the necessary space for extensive solar installations but also benefit from relatively low population density, reducing potential conflicts with residential areas. The gently sloping terrain in some parts of the region could actually be advantageous for solar PV installations. South-facing slopes, even if slight, can increase the efficiency of solar panels by optimizing their angle towards the sun. However, care must be taken to avoid areas prone to flooding or with high water tables, which are common in lower-lying parts of the region. It's important to note that while the topography around Lochem is generally favorable for solar PV, any large-scale installation would need to balance energy production goals with environmental and agricultural considerations. The region's rich farmland and natural beauty are valuable resources in their own right, and any solar development would need to be planned sensitively to preserve the character and ecological integrity of the area.

Netherlands solar PV Stats as a country

Netherlands ranks 12th in the world for cumulative solar PV capacity, with 14,249 total MW's of solar PV installed. This means that 8.90% of Netherlands's total energy as a country comes from solar PV (that's 7th in the world). Each year Netherlands is generating 817 Watts from solar PV per capita (Netherlands ranks 1st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Netherlands?

Yes, there are several incentives for businesses wanting to install solar energy in the Netherlands. The Dutch government offers a number of financial incentives and subsidies for businesses that invest in renewable energy sources such as solar power. These include grants, tax credits, and low-interest loans. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional funding through the European Union's Horizon 2020 program.

Do you have more up to date information than this on incentives towards solar PV projects in Netherlands? Please reach out to us and help us keep this information current. Thanks!
