Location estimate

Nootdorp

South Holland · Netherlands

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

5.36

kWh/day

Autumn

2.07

kWh/day

Winter

0.96

kWh/day

Spring

4.29

kWh/day

Shared scale: 0–6.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Nootdorp, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 5.36 5.36 × 1 kWp = 5.36 kWh/day
Autumn 2.07 2.07 × 1 kWp = 2.07 kWh/day
Winter 0.96 0.96 × 1 kWp = 0.96 kWh/day
Spring 4.29 4.29 × 1 kWp = 4.29 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
5.36
Autumn · kWh/day
2.07
Winter · kWh/day
0.96
Spring · kWh/day
4.29

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 44 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
44°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
35°South
Autumn
Sep, Oct, Nov
54°South
Winter
Dec, Jan, Feb
65°South
Spring
Mar, Apr, May
44°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Nootdorp, South Holland, Netherlands.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 35 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

35° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 54 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

54° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 65 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

65° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 44 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

44° tilt · South

Illustrative direction; exact azimuth not recorded.

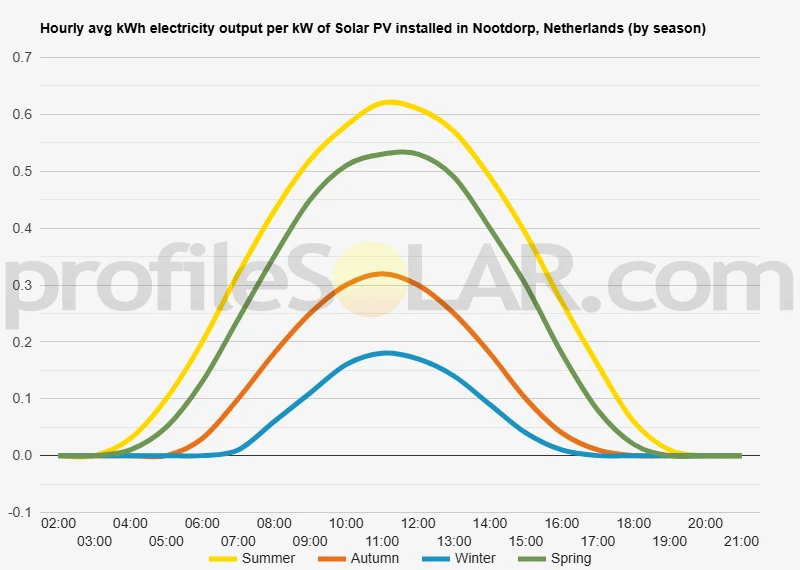

Historical hourly-by-season solar output chart for Nootdorp, Netherlands. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Nootdorp, Netherlands

Hourly profiles by season — Nootdorp, Netherlands · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Nootdorp, Netherlands · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Nootdorp

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 6.81 m

Proportional side viewDesign sun: ≈ 14.51° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 5.37 m
Added margin
≈ 0 m
Gap including margin
≈ 5.37 m
Panel horizontal footprint
≈ 1.44 m
Panel vertical rise
≈ 1.39 m
Pitch before margin
≈ 6.81 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
44°
Added margin
0 m
Latitude from the catalogue
52.041000000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.4386796006773024 m
Panel vertical rise
1.3893167409179945 m
Calculated clear gap
5.368526314847026 m
Pitch before margin
6.807205915524328 m
Gap including margin
5.368526314847026 m
Row pitch including margin
6.807205915524328 m
Design solar elevation
14.509217153186357°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Nootdorp

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Nootdorp's recorded solar profile gives spring and summer the largest role in annual generation. Estimated average daily electricity yields are 5.36 kWh/day per kW of rated capacity in summer, 4.29 in spring, 2.07 in autumn and 0.96 in winter. The difference between summer and winter is large. A household or business comparing solar with its electricity demand should retain that seasonal balance, especially where winter consumption is higher than summer consumption.

Read the full article

The seasonal values are daily energy averages over each season, rather than a constant output available on every day. Longer summer days create a wider production window, while winter's lower solar path increases the importance of the immediate horizon. A system's annual contribution can be useful even where the timing of production and demand differs, but the degree of direct use depends on when the building actually consumes electricity. The recorded year-round fixed-panel reference is 44 degrees facing South. It is a broad output-weighted estimate using simplified solar geometry. On an existing roof, the useful comparison includes roof pitch, orientation and shade. A frame raised above a level surface changes the space needed between rows; at low winter sun angles, a tightly packed arrangement may shade itself. The reference angle therefore belongs within a layout comparison alongside the number and position of panels. Nootdorp's broad polder setting has little large-scale hill relief, but its built areas and wooded recreation landscape create local obstructions. Chimneys, neighbouring roofs and trees should be assessed from the array position through the day and year. The nearby openness of a field or canal does not demonstrate an unobstructed view from a particular roof. A west-facing alternative should be compared on its measured exposure and demand timing rather than selected to avoid an assumed morning fog pattern. Water management is also part of the installation context. Roof drainage should remain accessible and unobstructed, while equipment close to ground level needs to be considered against the site's water levels and drainage. A battery can transfer some available solar energy to later hours, with finite capacity and losses; it does not remove the need to evaluate winter's much smaller production separately. Operating data and inspection can guide cleaning without presuming that a special coating, coastal component grade or fixed schedule is required throughout Nootdorp.

Topography around Nootdorp

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Nootdorp is part of a deeply modified polder landscape in South Holland. The municipality distinguishes former peat-extraction lakes that were pumped dry from surviving peat-meadow polders. The former have relatively deep, regular reclaimed surfaces bounded by higher dikes and embankments; the latter retain older, less regular strips, high water levels and subtle former creek ridges. In built-up and greenhouse areas, those older landscape patterns can be much less visible.

Read the full topography description

Waterways connect these surfaces to an actively managed system. Delfland explains that polder pumps lift excess water from lower polders to the higher boezem network of canals, from which water is discharged onwards. The historic Polder van Nootdorp pumping station is in Delft, illustrating the fact that this water system extends beyond the village's built limits. Surface-water levels also influence groundwater, with local groundwater monitored through measuring wells. The surroundings combine housing, horticulture and recreation rather than uninterrupted open farmland. Delfland identifies greenhouse concentrations in the Polder van Nootdorp around Dwarskade/Oudeweg, Nieuwkoopseweg and Langelandseweg. Buytenhout adds woodland, open spaces and the Dobbeplas to the wider setting. The municipality describes this as a recreation and nature landscape shared with neighbouring areas. For ground-mounted solar, the drainage ditch, embankment and pumping catchment can matter despite the overall low relief. A layout should keep water routes functioning and consider the soil and groundwater beneath the actual supports. Introducing a raised access route or compacted surface can affect runoff across a wider area than the array footprint. The openness of a polder is therefore one physical characteristic within an established system of water management and land use. On roofs, the comparison centres on the building's structure, usable area and local shade. For larger footprints, measured levels and the relevant water and land-use information are needed before judging feasibility. Distance to Delft, The Hague or a visible electrical line does not establish available connection capacity, cost or an uncommitted development parcel.

Technical location reference

Approximate map point used for Nootdorp, Netherlands

This coordinate is the calculation reference for Nootdorp, Netherlands. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
52.041000000000000000, 4.401400000000000000
Originally displayed coordinate
lat52.041 / long4.4014

How the estimate works

How this Nootdorp estimate was calculated

Here is how I calculated the location estimate for Nootdorp, Netherlands.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Nootdorp Location estimate includes and leaves out

Use the Nootdorp figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
