Rheden, Gelderland, Netherlands, located at latitude 52.0014 and longitude 6.0366 in the Northern Temperate Zone, presents a moderately favorable location for solar PV energy generation with significant seasonal variations.

Seasonal Solar Production

Solar energy production in Rheden follows a predictable seasonal pattern, with productivity peaking in summer and reaching its lowest point during winter months. During summer, each kilowatt of installed solar capacity generates approximately 5.26 kWh per day, making this the prime season for solar energy collection. Spring follows as the second most productive season with 4.17 kWh daily per installed kilowatt.

Production drops considerably during autumn to 2.12 kWh per day, while winter sees the lowest output at just 1.01 kWh daily per kilowatt of installed capacity. This winter figure represents less than 20% of the summer production, highlighting the significant seasonal variation at this northern European location.

Optimal Panel Installation

For fixed-panel installations in Rheden, Gelderland, the ideal tilt angle to maximize year-round solar production is 44 degrees facing South. This specific angle optimizes annual energy harvest by accounting for the location's latitude and the seasonal variations in the sun's position throughout the year.

Environmental and Weather Considerations

Several factors can potentially impact solar production in Rheden:

• Cloud cover and precipitation: The Netherlands experiences significant cloud cover throughout the year, particularly in autumn and winter, which can reduce solar irradiance reaching panels.
• Fog and mist: Common in this region, especially during morning hours in autumn and winter months, temporarily reducing solar efficiency.
• Snow accumulation: Winter snowfall can cover panels and halt production until cleared.
• Airborne particulates: Agricultural activities and proximity to urban areas may lead to dust accumulation on panels.

Preventative Measures

To optimize solar production in Rheden despite these challenges, several preventative measures can be implemented:

• Install panels at the recommended 44-degree tilt to facilitate natural cleaning by rainfall and snow sliding off.
• Implement an automated cleaning system or regular maintenance schedule, particularly important during pollen seasons and dry periods.
• Consider micro-inverters or power optimizers to minimize the impact of partial shading from trees or buildings.
• Use high-efficiency panels specifically designed for diffuse light conditions, which perform better under cloudy skies common in the Netherlands.
• Ensure proper spacing between panel rows to minimize self-shading, especially important during winter months when the sun angle is low.

With these considerations addressed, a well-designed solar PV system in Rheden can provide substantial renewable energy, particularly from March through September when production values are highest.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 364 locations across Netherlands. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Netherlands by location

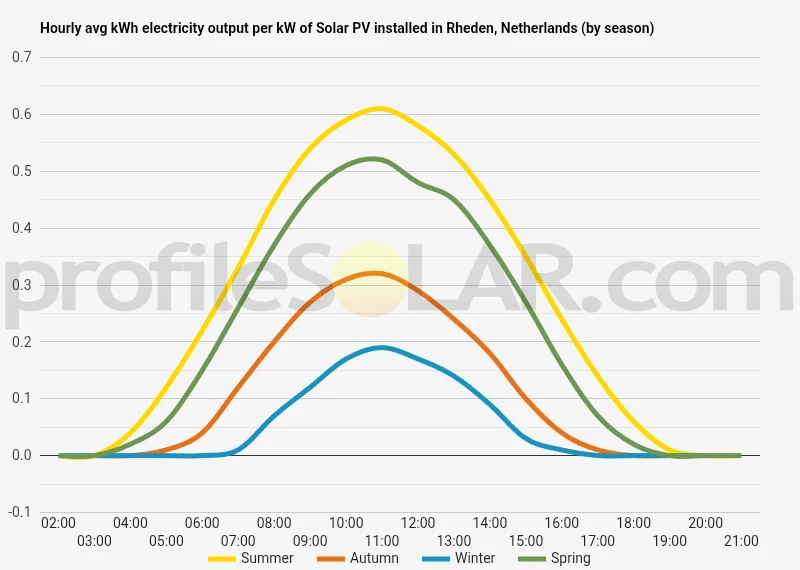

Solar output per kW of installed solar PV by season in Rheden

Seasonal solar PV output for Latitude: 52.0014, Longitude: 6.0366 (Rheden, Netherlands), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Rheden, Netherlands

To maximize your solar PV system's energy output in Rheden, Netherlands (Lat/Long 52.0014, 6.0366) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rheden, Netherlands

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rheden, Netherlands. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	55° South in Autumn	65° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rheden, Netherlands

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rheden, Netherlands.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rheden, Netherlands

Topography of Rheden and Surrounding Areas

Rheden is a municipality located in the eastern part of the Netherlands, in the province of Gelderland. The topography of Rheden is quite distinctive compared to much of the Netherlands, as it sits at the transition between two major landscape types. To the north lies the flat, open IJssel River valley with its fertile agricultural lands, while to the south rises the Veluwe, one of the largest push moraines in the Netherlands, forming a series of forested hills and ridges. This varied landscape gives Rheden a unique character. The elevation ranges from just a few meters above sea level in the northern parts near the IJssel River to approximately 110 meters in the southern forested hills. This elevation change, though modest by international standards, is significant in the predominantly flat Dutch landscape. The municipality includes several settlements including the town of Rheden itself, along with Velp, Dieren, Ellecom, De Steeg, Spankeren, and Laag-Soeren. These settlements are nestled within a diverse landscape that includes river floodplains, agricultural fields, forests, and heathlands.

Solar PV Potential in the Region

When considering areas near Rheden for large-scale solar PV installations, several factors need to be taken into account including topography, existing land use, environmental protections, and grid connectivity. The flat agricultural areas in the northern part of Rheden municipality, extending toward the IJssel River, present favorable conditions for solar PV deployment. These areas offer level terrain that simplifies construction and optimal panel orientation. The open landscape means minimal shading issues from natural features or structures. Additionally, these agricultural zones typically have fewer environmental protections compared to the forested areas to the south. The neighboring municipalities to the north and northeast, such as Brummen and Zutphen, with their predominantly agricultural landscapes, also offer potential sites for large-scale solar installations. These flat areas provide excellent conditions for uniform solar panel arrays and are often already connected to infrastructure networks. In contrast, the southern portions of Rheden municipality, which extend into the Veluwe region, are less suitable for large-scale solar development. These areas are characterized by forests, nature reserves, and protected landscapes with significant ecological value. The Veluwe is one of the Netherlands' most important natural areas and is subject to various environmental protections. Additionally, the hilly terrain would complicate installation and potentially reduce efficiency due to varied panel orientations. The areas around the settlements themselves have limited potential for large-scale installations due to residential development, though smaller commercial or community solar projects might be feasible on the outskirts of towns like Dieren or Velp where industrial or commercial zones exist. Former industrial sites or brownfields in the region could also offer promising locations for solar development, providing an opportunity to repurpose degraded land while preserving agricultural and natural areas. Several such sites exist in the broader region around Arnhem and Zutphen.

Netherlands solar PV Stats as a country

Netherlands ranks 12th in the world for cumulative solar PV capacity, with 14,249 total MW's of solar PV installed. This means that 8.90% of Netherlands's total energy as a country comes from solar PV (that's 7th in the world). Each year Netherlands is generating 817 Watts from solar PV per capita (Netherlands ranks 1st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Netherlands?

Yes, there are several incentives for businesses wanting to install solar energy in the Netherlands. The Dutch government offers a number of financial incentives and subsidies for businesses that invest in renewable energy sources such as solar power. These include grants, tax credits, and low-interest loans. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional funding through the European Union's Horizon 2020 program.

Do you have more up to date information than this on incentives towards solar PV projects in Netherlands? Please reach out to us and help us keep this information current. Thanks!
