Solar PV Analysis of Waddinxveen, Netherlands
Waddinxveen, South Holland, a town in the Netherlands, presents a mixed picture for solar energy generation. Located in the Northern Temperate Zone, this area experiences significant seasonal variations in solar output, which impacts the overall efficiency of photovoltaic (PV) systems throughout the year.
Seasonal Solar Performance
The solar energy production in Waddinxveen fluctuates considerably across the seasons. Summer stands out as the most productive period, with an average daily output of 5.42 kWh per kW of installed solar capacity. Spring follows closely, yielding 4.36 kWh/day. However, the output drops significantly during autumn to 2.14 kWh/day, and reaches its lowest point in winter, producing only 1.01 kWh/day.
Optimal Panel Positioning
To maximize year-round solar energy production in Waddinxveen, South Holland, fixed solar panels should be tilted at a 44-degree angle facing south. This orientation helps optimize the capture of available sunlight throughout the year, considering the town's latitude and seasonal sun angles.
Challenges and Mitigation Strategies
The primary challenge for solar energy production in Waddinxveen is the significant drop in output during autumn and winter months. This reduction is primarily due to shorter daylight hours and the sun's lower position in the sky. Additionally, the region's climate presents some obstacles:
- Frequent cloud cover, especially in winter
- Potential for snow accumulation on panels
To mitigate these issues, consider implementing the following measures:
- Use high-efficiency solar panels designed for low-light conditions
- Install snow sensors and heating elements to prevent snow buildup
- Implement a robust cleaning schedule to maintain panel efficiency
- Consider supplementing with other renewable energy sources during low-production months
Conclusion
While Waddinxveen's location is not ideal for year-round solar energy production, it still offers substantial potential, especially during spring and summer. With proper panel positioning and mitigation strategies for seasonal challenges, solar PV systems can be a viable and beneficial source of renewable energy in this Dutch town.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 364 locations across Netherlands. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Netherlands by location

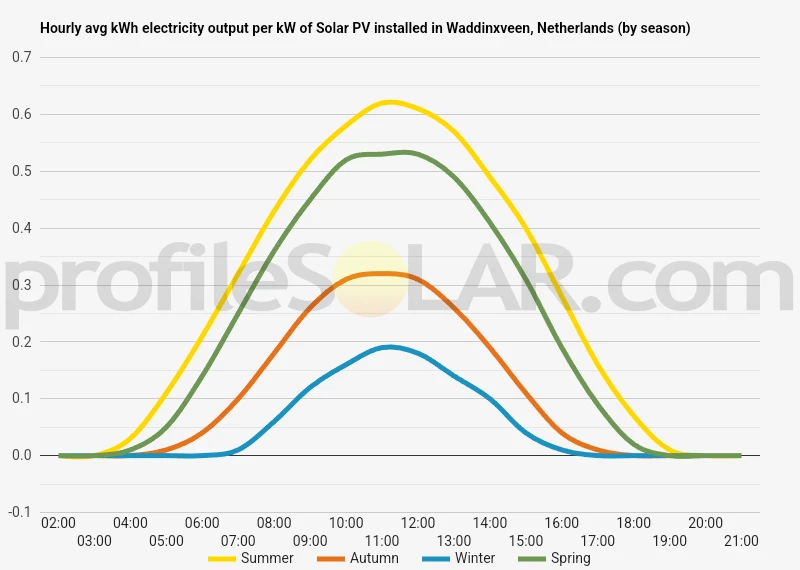

Solar output per kW of installed solar PV by season in Waddinxveen
Seasonal solar PV output for Latitude: 52.0452, Longitude: 4.6468 (Waddinxveen, Netherlands), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 44° South in Waddinxveen, Netherlands
To maximize your solar PV system's energy output in Waddinxveen, Netherlands (Lat/Long 52.0452, 4.6468) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Waddinxveen, Netherlands
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Waddinxveen, Netherlands. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 35° South in Summer | 55° South in Autumn | 65° South in Winter | 44° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Waddinxveen, Netherlands
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Waddinxveen, Netherlands.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Waddinxveen, Netherlands
The area around Waddinxveen, Netherlands, is characterized by a very flat and low-lying landscape, typical of much of the western Netherlands. This region is part of the Dutch lowlands, which are largely at or below sea level. The terrain is predominantly composed of reclaimed land, known as polders, which have been drained and protected from flooding by an extensive system of dikes, canals, and pumping stations.
The topography in and around Waddinxveen is exceptionally level, with very little natural elevation change. The land is primarily used for agriculture, with a patchwork of fields, pastures, and greenhouse complexes. Scattered throughout the area are numerous waterways, including small rivers, canals, and drainage ditches, which are essential for water management in this low-lying region.
While the flat terrain might seem ideal for solar PV installations, there are several factors to consider when identifying suitable areas for large-scale solar projects in this region:
1. Agricultural land: Much of the surrounding area is valuable farmland, and there may be restrictions on converting it to solar farms.
2. Urban proximity: Waddinxveen is situated in a relatively densely populated area, with several towns and cities nearby. This limits the availability of large, contiguous plots of land for solar installations.
3. Water management infrastructure: The extensive network of waterways and flood control systems may pose challenges for large-scale solar development.
Given these considerations, the most suitable areas for large-scale solar PV installations near Waddinxveen would likely be:
1. Former industrial sites or brownfields: These areas, if available, could be repurposed for solar energy production without impacting valuable agricultural land.
2. Roof-mounted systems: Large commercial and industrial buildings in the area could host significant solar installations on their rooftops.
3. Dual-use agricultural land: Some farmers might be open to incorporating solar panels above their crops or pastures, allowing for both energy production and continued agricultural use.
4. Less productive agricultural areas: If there are any parcels of land with poor soil quality or lower agricultural value, these could be considered for solar development.
It's important to note that any large-scale solar PV project in this area would require careful planning and coordination with local authorities, considering the complex water management systems and land-use regulations in place.
Netherlands solar PV Stats as a country
Netherlands ranks 12th in the world for cumulative solar PV capacity, with 14,249 total MW's of solar PV installed. This means that 8.90% of Netherlands's total energy as a country comes from solar PV (that's 7th in the world). Each year Netherlands is generating 817 Watts from solar PV per capita (Netherlands ranks 1st in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Netherlands?
Yes, there are several incentives for businesses wanting to install solar energy in the Netherlands. The Dutch government offers a number of financial incentives and subsidies for businesses that invest in renewable energy sources such as solar power. These include grants, tax credits, and low-interest loans. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional funding through the European Union's Horizon 2020 program.
Do you have more up to date information than this on incentives towards solar PV projects in Netherlands? Please reach out to us and help us keep this information current. Thanks!
