Ashburton, Canterbury, New Zealand, located at latitude -43.885 and longitude 171.7413, presents a mixed picture for solar PV energy generation throughout the year. This Southern Temperate Zone location experiences significant seasonal variations in solar energy production, which can impact the overall efficiency of solar installations.

Seasonal Solar Output

The solar energy output in Ashburton varies considerably across the seasons:

• Summer: 6.54 kWh/day per kW installed
• Spring: 5.32 kWh/day per kW installed
• Autumn: 3.42 kWh/day per kW installed
• Winter: 1.95 kWh/day per kW installed

Summer and spring are the most productive seasons for solar energy generation in Ashburton, Canterbury, with summer offering the highest output. The longer daylight hours and more direct sunlight during these months contribute to increased energy production.

Optimal Panel Angle

For fixed panel installations in Ashburton, Canterbury, the ideal tilt angle to maximize year-round solar production is 38 degrees facing North. This angle helps to optimize energy capture across all seasons, balancing the lower sun angle in winter with the higher sun position in summer.

Environmental and Weather Factors

While Ashburton generally has favorable conditions for solar energy production, there are some factors that could potentially impact solar panel efficiency: 1. Cloud cover: Ashburton can experience cloudy days, particularly in winter, which may reduce solar energy output. 2. Frost and snow: Winter months might see occasional frost or light snow, which could temporarily decrease panel efficiency if not cleared.

Preventative Measures

To mitigate these factors and ensure optimal energy production, consider the following measures when installing solar panels in Ashburton: 1. Use high-efficiency panels that perform well in low-light conditions to maximize output on cloudy days. 2. Install panels at the recommended 38-degree angle to help shed snow and optimize year-round production. 3. Implement a regular cleaning schedule to remove any dust, debris, or frost that may accumulate on the panels. 4. Consider a tracking system for larger installations to follow the sun's path and maximize energy capture, especially during the productive summer months.

In conclusion, while Ashburton experiences significant seasonal variations in solar energy production, with proper planning and installation techniques, it can still be a viable location for solar PV systems, particularly during the spring and summer months.

Note: The Southern Temperate Zone extends from -35° latitude South down to -66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 105 locations across New Zealand. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in New Zealand by location

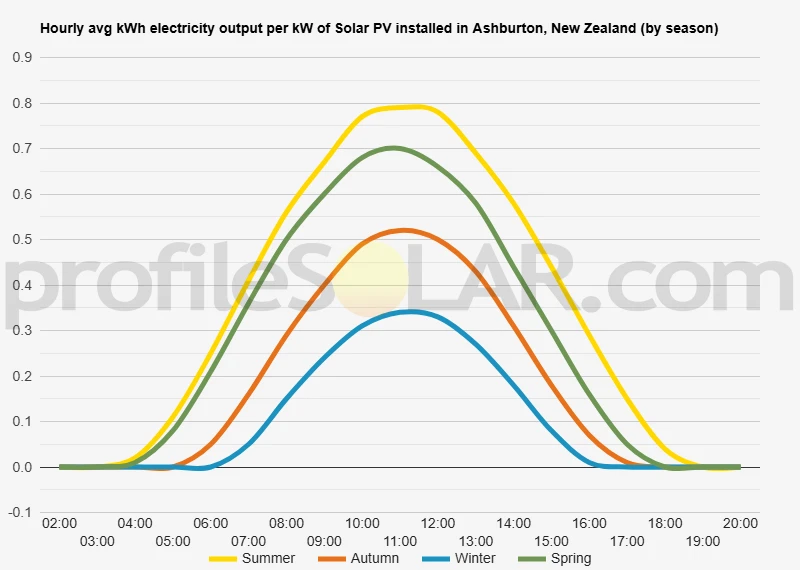

Solar output per kW of installed solar PV by season in Ashburton

Seasonal solar PV output for Latitude: -43.885, Longitude: 171.7413 (Ashburton, New Zealand), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 38° North in Ashburton, New Zealand

To maximize your solar PV system's energy output in Ashburton, New Zealand (Lat/Long -43.885, 171.7413) throughout the year, you should tilt your panels at an angle of 38° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ashburton, New Zealand

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ashburton, New Zealand. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 38° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
28° North in Summer	48° North in Autumn	59° North in Winter	37° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ashburton, New Zealand

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ashburton, New Zealand.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ashburton, New Zealand

The topography around Ashburton, New Zealand, is characterized by a diverse landscape that transitions from coastal plains to rolling hills and eventually to the Southern Alps. Ashburton itself is situated on the Canterbury Plains, a flat and expansive area that stretches from the coast inland towards the mountains. To the east of Ashburton, the terrain is predominantly flat, with the Canterbury Plains extending towards the Pacific Ocean. This area is known for its fertile soil and is extensively used for agriculture. As you move west from Ashburton, the landscape gradually becomes more undulating, with gentle hills and valleys forming the foothills of the Southern Alps. The Rakaia and Rangitata Rivers, which originate in the Southern Alps, flow through the region, carving wide braided river valleys as they make their way to the sea. These rivers have shaped the surrounding landscape over millennia, creating terraces and flood plains that add variety to the otherwise flat plains.

Suitable Areas for Large-Scale Solar PV

When considering areas near Ashburton for large-scale solar photovoltaic (PV) installations, the flat and open spaces of the Canterbury Plains offer the most potential. These areas provide several advantages for solar energy production: Firstly, the relatively flat terrain of the plains allows for easy installation and maintenance of solar panels. There is minimal need for extensive land preparation, which can reduce construction costs and environmental impact. Secondly, the open nature of the plains means there are fewer obstacles that could cast shadows on solar panels, maximizing their exposure to sunlight throughout the day. This is crucial for optimal energy generation. The areas to the east and northeast of Ashburton, extending towards the coast, are particularly well-suited for solar PV installations. These locations not only benefit from the flat terrain but also experience less cloud cover compared to areas closer to the Southern Alps, where orographic lift can create more frequent cloud formations. It's worth noting that while the Canterbury Plains offer ideal topography for solar installations, any large-scale project would need to carefully consider the impact on the region's valuable agricultural land. Balancing renewable energy production with food security and land use would be an important consideration for any proposed solar PV development in the area.

New Zealand solar PV Stats as a country

New Zealand ranks 78th in the world for cumulative solar PV capacity, with 146 total MW's of solar PV installed. Each year New Zealand is generating 29 Watts from solar PV per capita (New Zealand ranks 58th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in New Zealand?

Yes, there are several incentives for businesses wanting to install solar energy in New Zealand. The government offers a range of grants and subsidies to help businesses reduce their energy costs and increase their use of renewable energy sources. These include the Solar PV Grant Scheme, which provides up to $20,000 per installation towards the cost of installing solar photovoltaic (PV) systems; the Low Emission Vehicles Contestable Fund, which provides funding for electric vehicles; and the Energy Efficiency and Conservation Authority’s Business Energy Management Programme, which helps businesses identify ways to save money on their energy bills. Additionally, some local councils offer rates rebates or other incentives for businesses that install solar panels.

Do you have more up to date information than this on incentives towards solar PV projects in New Zealand? Please reach out to us and help us keep this information current. Thanks!
