Solar PV Analysis of Morrinsville, New Zealand
Morrinsville, Waikato Region, New Zealand, located at latitude -37.647 and longitude 175.5141, offers varying potential for solar energy generation throughout the year. This Southern Temperate Zone location experiences significant seasonal fluctuations in solar output, which impacts the efficiency of photovoltaic (PV) systems.
Seasonal Solar Performance
Solar energy production in Morrinsville peaks during the summer months, with an impressive average of 7.08 kWh per day for each kilowatt of installed solar capacity. Spring follows as the second most productive season, generating 5.23 kWh/day. Autumn sees a considerable drop to 3.86 kWh/day, while winter experiences the lowest output at 2.50 kWh/day.
These figures highlight the substantial variation in solar energy potential across seasons. Summer and spring emerge as ideal times for solar energy generation, with longer daylight hours and more direct sunlight. Conversely, autumn and winter face challenges due to shorter days and less intense solar radiation.
Optimal Panel Orientation
To maximize year-round solar energy production in Morrinsville, Waikato Region, fixed solar panels should be tilted at a 33-degree angle facing north. This orientation helps optimize the panels' exposure to sunlight throughout the year, balancing the varying sun angles across seasons.
Environmental Considerations
While Morrinsville's location is generally favorable for solar energy, there are some environmental factors to consider:
- Cloud cover: The region can experience periods of overcast weather, particularly in winter, which may reduce solar output.
- Rainfall: Morrinsville receives moderate rainfall, which can temporarily decrease panel efficiency.
To mitigate these factors, consider installing high-quality, weather-resistant panels and implementing regular cleaning routines. Additionally, using microinverters or power optimizers can help maintain system efficiency during partial shading conditions.
In conclusion, while Morrinsville's solar potential varies significantly throughout the year, proper system design and maintenance can ensure effective energy generation, particularly during the productive summer and spring months.
Note: The Southern Temperate Zone extends from -35° latitude South down to -66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 105 locations across New Zealand. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in New Zealand by location

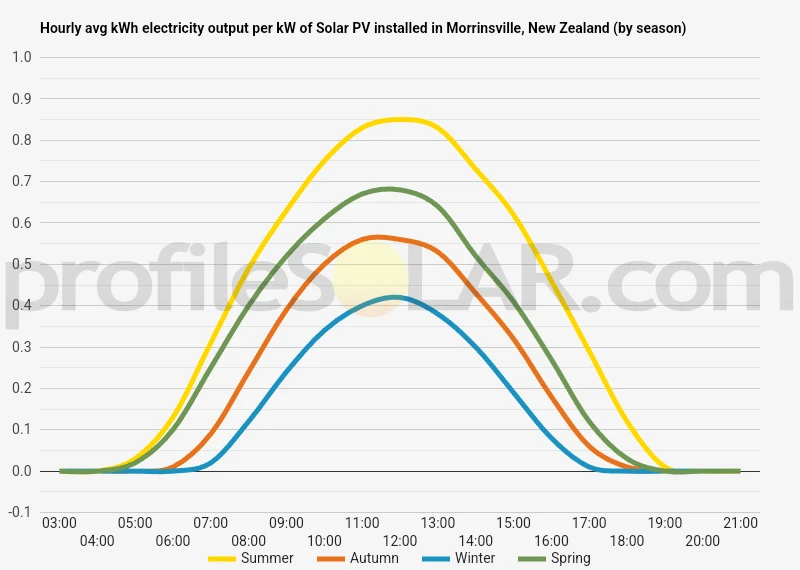

Solar output per kW of installed solar PV by season in Morrinsville
Seasonal solar PV output for Latitude: -37.647, Longitude: 175.5141 (Morrinsville, New Zealand), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 33° North in Morrinsville, New Zealand
To maximize your solar PV system's energy output in Morrinsville, New Zealand (Lat/Long -37.647, 175.5141) throughout the year, you should tilt your panels at an angle of 33° North for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Morrinsville, New Zealand
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Morrinsville, New Zealand. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 33° North tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 22° North in Summer | 42° North in Autumn | 53° North in Winter | 30° North in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Morrinsville, New Zealand
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Morrinsville, New Zealand.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Morrinsville, New Zealand
The area around Morrinsville, New Zealand, is characterized by gently rolling hills and flat plains typical of the Waikato region. This part of the North Island features a mix of pastoral landscapes, with lush green fields stretching across the countryside. The terrain is generally low-lying, with elevations ranging from about 30 to 100 meters above sea level in the immediate vicinity of Morrinsville.
To the east of Morrinsville, the Kaimai Range rises, creating a more pronounced topographical feature. This mountain range forms a natural barrier between the Waikato region and the Bay of Plenty. However, the area immediately surrounding Morrinsville remains relatively flat, with subtle undulations in the landscape.
The Piako River flows near Morrinsville, contributing to the area's gentle topography and fertile soil. This river system has shaped the land over time, creating alluvial plains that are now used extensively for agriculture, particularly dairy farming.
Regarding areas suitable for large-scale solar PV (photovoltaic) installations, the flat to gently sloping terrain around Morrinsville offers several promising locations. The most suitable areas would be found on the open plains to the west and southwest of the town. These locations benefit from relatively unobstructed exposure to sunlight throughout the day, which is crucial for maximizing solar energy production.
Ideal sites for solar PV would be away from any significant hills or tall vegetation that could cast shadows. Fields currently used for grazing or crops could potentially be repurposed for solar farms, as the flat nature of the land would minimize the need for extensive earthworks during installation.
It's worth noting that while the Waikato region receives a good amount of sunshine, it also experiences significant rainfall. This factor should be considered when planning solar installations, ensuring proper drainage and weather-resistant equipment are incorporated into any large-scale solar PV project in the area.
New Zealand solar PV Stats as a country
New Zealand ranks 78th in the world for cumulative solar PV capacity, with 146 total MW's of solar PV installed. Each year New Zealand is generating 29 Watts from solar PV per capita (New Zealand ranks 58th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in New Zealand?
Yes, there are several incentives for businesses wanting to install solar energy in New Zealand. The government offers a range of grants and subsidies to help businesses reduce their energy costs and increase their use of renewable energy sources. These include the Solar PV Grant Scheme, which provides up to $20,000 per installation towards the cost of installing solar photovoltaic (PV) systems; the Low Emission Vehicles Contestable Fund, which provides funding for electric vehicles; and the Energy Efficiency and Conservation Authority’s Business Energy Management Programme, which helps businesses identify ways to save money on their energy bills. Additionally, some local councils offer rates rebates or other incentives for businesses that install solar panels.
Do you have more up to date information than this on incentives towards solar PV projects in New Zealand? Please reach out to us and help us keep this information current. Thanks!
