Mosgiel, Otago, New Zealand, situated in the Southern Temperate Zone, presents a varied landscape for solar energy generation throughout the year. This location, with coordinates -45.8807 latitude and 170.3395 longitude, experiences significant fluctuations in solar PV output across the seasons.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive 6.14kWh per day for each kilowatt of installed solar capacity. Spring follows closely, generating 5.15kWh/day. However, the output drops considerably during autumn, yielding 3.09kWh/day, and reaches its lowest point in winter with only 1.72kWh/day.

These figures indicate that Mosgiel's solar potential is heavily skewed towards the warmer months. The long summer days and higher sun angles contribute to peak performance from December to February. Spring also offers excellent generation potential, making it an ideal time for solar energy production.

Optimizing Panel Installation

To maximize year-round solar production at this location, fixed solar panels should be tilted at a 40-degree angle facing north. This optimal angle has been calculated considering the Earth's elliptical orbit and local solar elevation angles, weighted by daily PV potential.

Environmental Considerations

While Mosgiel's location is generally favorable for solar energy, there are some environmental factors to consider:

1. Cloud cover: The region can experience significant cloud cover, particularly during winter months, which may reduce solar output.
2. Coastal proximity: Being relatively close to the coast, salt spray could potentially affect solar panel efficiency over time.

To mitigate these factors, regular cleaning of solar panels is recommended to remove any salt buildup. Additionally, investing in high-quality, weather-resistant panels can help maintain efficiency despite variable weather conditions.

In conclusion, while Mosgiel's solar potential varies significantly throughout the year, proper panel positioning and maintenance can help maximize energy production, making solar PV a viable option for this New Zealand location.

Note: The Southern Temperate Zone extends from -35° latitude South down to -66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 105 locations across New Zealand. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in New Zealand by location

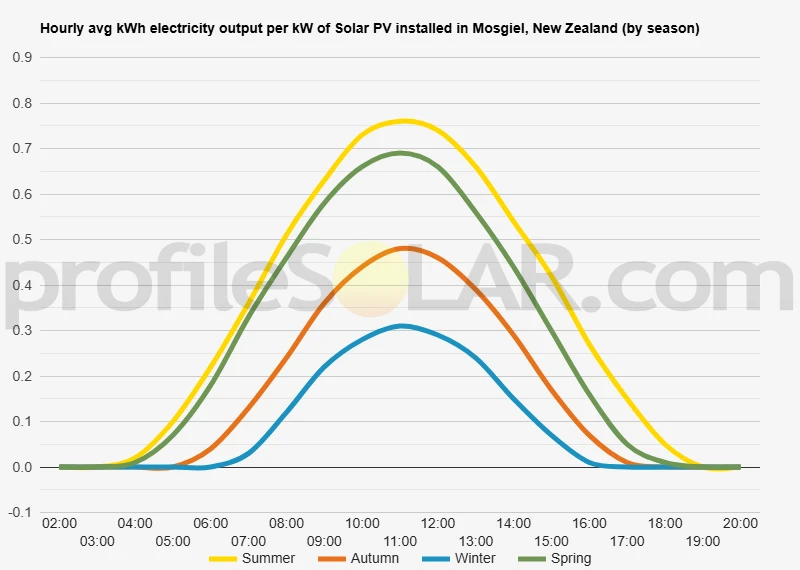

Solar output per kW of installed solar PV by season in Mosgiel

Seasonal solar PV output for Latitude: -45.8807, Longitude: 170.3395 (Mosgiel, New Zealand), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° North in Mosgiel, New Zealand

To maximize your solar PV system's energy output in Mosgiel, New Zealand (Lat/Long -45.8807, 170.3395) throughout the year, you should tilt your panels at an angle of 40° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mosgiel, New Zealand

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mosgiel, New Zealand. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
30° North in Summer	50° North in Autumn	60° North in Winter	39° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mosgiel, New Zealand

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mosgiel, New Zealand.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mosgiel, New Zealand

Mosgiel, a town located in the Otago region of New Zealand's South Island, is situated in a diverse and picturesque landscape. The topography surrounding Mosgiel is characterized by a mix of flat plains and gently rolling hills, creating a varied and visually appealing environment. To the north and west of Mosgiel, the Taieri Plains stretch out in a vast expanse of flat, fertile land. This expansive area was once a shallow sea but has since been filled with sediment, resulting in rich, productive farmland. The plains are predominantly used for agriculture, with numerous farms and lifestyle blocks dotting the landscape. As one moves towards the east and southeast of Mosgiel, the terrain begins to rise, forming the foothills of the Maungatua Range. These hills gradually increase in elevation, offering panoramic views of the surrounding countryside. The Maungatua Range itself is a prominent feature, with its highest peak reaching approximately 895 meters above sea level. To the south of Mosgiel, the land transitions into more undulating terrain, with a series of low hills and shallow valleys. This area provides a gentle buffer between the flat plains and the more mountainous regions further south.

Suitability for Large-Scale Solar PV

When considering areas nearby Mosgiel for large-scale solar photovoltaic (PV) installations, several factors come into play. The most suitable locations would ideally combine flat or gently sloping terrain, good sun exposure, and minimal shading from surrounding landscape features. The Taieri Plains to the north and west of Mosgiel present the most promising areas for large-scale solar PV projects. These expansive flat lands offer several advantages: 1. The lack of significant elevation changes means minimal earthwork would be required for installation. 2. The open nature of the plains provides excellent exposure to sunlight throughout the day. 3. There are fewer natural obstacles that could cast shadows on solar panels. However, it's important to note that much of this land is currently used for agriculture, so any solar development would need to be balanced with food production needs. The gently rolling hills to the east and southeast of Mosgiel could also be suitable for solar PV installations, particularly on south-facing slopes that receive good sun exposure. These areas might require more careful planning and panel arrangement to maximize efficiency, but they could still be viable options. The more mountainous regions to the far east and the undulating terrain to the south are generally less suitable for large-scale solar projects due to increased shading and the challenges posed by steeper slopes. In conclusion, while the diverse topography around Mosgiel offers a range of potential sites for solar PV development, the flat expanses of the Taieri Plains present the most promising opportunities for large-scale installations, provided that land use considerations are carefully addressed.

New Zealand solar PV Stats as a country

New Zealand ranks 78th in the world for cumulative solar PV capacity, with 146 total MW's of solar PV installed. Each year New Zealand is generating 29 Watts from solar PV per capita (New Zealand ranks 58th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in New Zealand?

Yes, there are several incentives for businesses wanting to install solar energy in New Zealand. The government offers a range of grants and subsidies to help businesses reduce their energy costs and increase their use of renewable energy sources. These include the Solar PV Grant Scheme, which provides up to $20,000 per installation towards the cost of installing solar photovoltaic (PV) systems; the Low Emission Vehicles Contestable Fund, which provides funding for electric vehicles; and the Energy Efficiency and Conservation Authority’s Business Energy Management Programme, which helps businesses identify ways to save money on their energy bills. Additionally, some local councils offer rates rebates or other incentives for businesses that install solar panels.

Do you have more up to date information than this on incentives towards solar PV projects in New Zealand? Please reach out to us and help us keep this information current. Thanks!
