Motueka, Tasman District, New Zealand presents a moderately favorable location for solar PV energy generation, though with significant seasonal variation typical of its Southern Temperate Zone position. The area experiences strong summer performance but faces considerable challenges during winter months.

Seasonal Solar Performance

Summer delivers the strongest solar generation at 6.60kWh per day per kW of installed capacity, making it an excellent time for solar energy production. Spring also performs well with 5.00kWh per day per kW, providing good energy output during this transitional season. However, winter presents significant challenges with only 2.05kWh per day per kW - less than one-third of summer production. Autumn shows moderate performance at 3.24kWh per day per kW, representing the seasonal decline toward winter. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 35 degrees facing North. This angle maximizes total annual production by accounting for the sun's varying position throughout the year and weighting for seasonal solar potential.

Environmental Factors Affecting Solar Production

Several local environmental factors can significantly impact solar energy generation in Motueka: **Coastal Weather Patterns**: Being located near Tasman Bay, Motueka experiences marine weather influences including sea fog, coastal clouds, and salt-laden air. Morning fog and low-lying clouds can reduce solar production during peak morning hours, while salt spray can accumulate on panels, reducing their efficiency over time. **Mountain Weather Effects**: The nearby mountain ranges can create localized weather patterns, including orographic cloud formation and varying wind patterns that may bring additional moisture and cloud cover, particularly affecting winter performance when solar output is already at its lowest. **Dust and Pollen**: The region's agricultural activities and natural vegetation can contribute to dust accumulation and seasonal pollen deposits on solar panels, creating a film that reduces light transmission and energy output.

Preventative Installation Measures

To maximize solar energy production despite these challenges, several installation strategies prove effective:

• Install panels with adequate tilt (the recommended 35 degrees North) to promote natural rainfall cleaning and reduce debris accumulation
• Ensure proper spacing between panel rows to minimize shading and allow for maintenance access
• Use high-quality mounting systems designed to withstand coastal conditions and salt air exposure
• Select panels with anti-reflective coatings and self-cleaning surface treatments where possible

**Regular Maintenance Protocol**: Establish a cleaning schedule that accounts for seasonal variations, with more frequent cleaning during high-pollen periods and after significant weather events. Use appropriate cleaning methods that won't damage panel surfaces while effectively removing salt residue and organic matter. **Strategic Positioning**: When possible, position installations to take advantage of prevailing winds that can help keep panels clean, while avoiding areas prone to excessive shade from surrounding vegetation or structures during the critical winter months when solar production is already limited.

Note: The Southern Temperate Zone extends from -35° latitude South down to -66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 105 locations across New Zealand. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in New Zealand by location

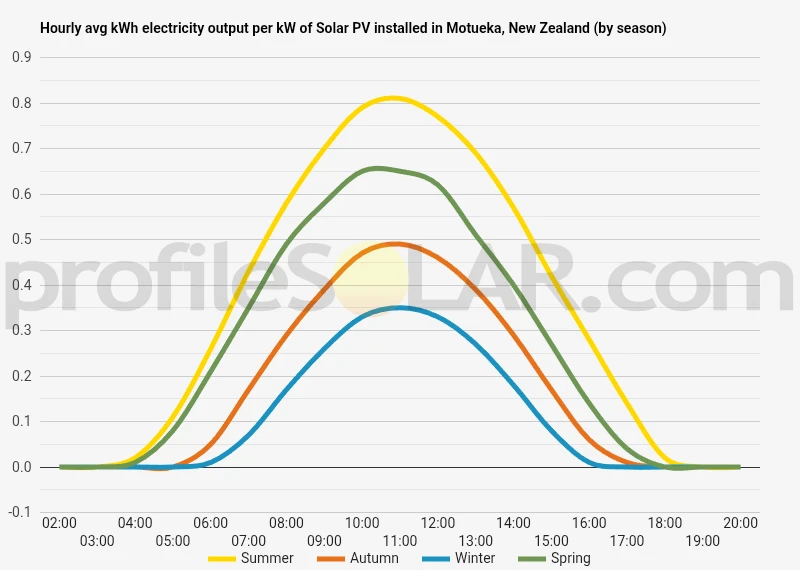

Solar output per kW of installed solar PV by season in Motueka

Seasonal solar PV output for Latitude: -41.0327, Longitude: 172.9376 (Motueka, New Zealand), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° North in Motueka, New Zealand

To maximize your solar PV system's energy output in Motueka, New Zealand (Lat/Long -41.0327, 172.9376) throughout the year, you should tilt your panels at an angle of 35° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Motueka, New Zealand

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Motueka, New Zealand. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° North in Summer	45° North in Autumn	56° North in Winter	34° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Motueka, New Zealand

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Motueka, New Zealand.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Motueka, New Zealand

Topographical Features Around Motueka

Motueka sits in a distinctive geographical setting on the northern coast of New Zealand's South Island, positioned where the Motueka River meets Tasman Bay. The town occupies relatively flat coastal plains that extend inland from the shoreline, creating an expansive area of fertile agricultural land that has made the region famous for its horticulture and farming operations.

The landscape around Motueka is characterized by gently rolling hills that gradually rise from the coastal flats toward more substantial mountain ranges inland. To the south and southeast, the terrain becomes increasingly mountainous as it approaches the Arthur Range and the northern reaches of Kahurangi National Park. These mountains create a dramatic backdrop to the otherwise gentle topography of the immediate Motueka area.

The Motueka River valley forms a significant geographical feature, creating a natural corridor that extends inland through the surrounding hills. This valley system, along with several smaller tributaries, has carved out relatively flat terraces and flood plains that provide excellent growing conditions for the region's extensive orchards and market gardens.

To the west of Motueka, the land rises gradually toward the Takaka Hill range, while to the east, the coastal plains continue toward the Waimea Plains near Nelson. The northern aspect faces directly onto Tasman Bay, providing unobstructed exposure to northern light throughout the day.

Optimal Areas for Large-Scale Solar Development

The flat to gently undulating coastal plains surrounding Motueka present excellent opportunities for large-scale solar photovoltaic installations. These areas combine minimal topographical constraints with optimal solar orientation, particularly the extensive flat lands that stretch inland from the coast toward the foothills of the surrounding ranges.

The river terraces and flood plains of the Motueka River valley offer particularly promising locations for solar development. These areas typically feature minimal slope variations, reducing the need for extensive ground preparation and allowing for efficient panel layout configurations. The valley's orientation also provides good exposure to northern light while offering some protection from prevailing winds.

Areas immediately south and southeast of the town center, where the land begins its gradual rise toward the mountain ranges, present opportunities for solar installations on north-facing slopes. These locations can take advantage of the natural terrain to optimize panel angles while maintaining accessibility for construction and maintenance activities.

The coastal plains extending eastward toward Nelson also offer substantial potential for large-scale solar development. This region features extensive areas of relatively flat farmland with minimal shading from topographical features, creating ideal conditions for solar arrays. The proximity to existing electrical infrastructure in this more developed corridor adds to the appeal of these locations.

Less suitable areas for large-scale solar development include the steeper terrain in the immediate foothills and mountain slopes, where gradient limitations and potential shading from surrounding topography would reduce efficiency. The immediate coastal strip, while flat, may face challenges from salt exposure and coastal weather patterns that could affect long-term equipment performance.

New Zealand solar PV Stats as a country

New Zealand ranks 78th in the world for cumulative solar PV capacity, with 146 total MW's of solar PV installed. Each year New Zealand is generating 29 Watts from solar PV per capita (New Zealand ranks 58th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in New Zealand?

Yes, there are several incentives for businesses wanting to install solar energy in New Zealand. The government offers a range of grants and subsidies to help businesses reduce their energy costs and increase their use of renewable energy sources. These include the Solar PV Grant Scheme, which provides up to $20,000 per installation towards the cost of installing solar photovoltaic (PV) systems; the Low Emission Vehicles Contestable Fund, which provides funding for electric vehicles; and the Energy Efficiency and Conservation Authority’s Business Energy Management Programme, which helps businesses identify ways to save money on their energy bills. Additionally, some local councils offer rates rebates or other incentives for businesses that install solar panels.
