Solar PV Analysis of Ngaruawahia, New Zealand
Ngaruawahia, Waikato, New Zealand (latitude: -37.6681, longitude: 175.1536) is a suitable location for generating solar power through photovoltaic (PV) systems. The average energy production per kW of installed solar in this area varies across seasons, with 7.09 kWh/day in summer, 3.86 kWh/day in autumn, 2.50 kWh/day in winter, and 5.23 kWh/day in spring. These variations can be attributed to the differences in daylight hours and sunlight intensity throughout the year.
Despite its potential for solar power generation, Ngaruawahia may experience certain environmental factors that could impact the efficiency of solar panels. Cloudy or rainy days can limit the amount of sunlight available for electricity generation, leading to reduced daily energy output from PV systems installed at this location.
Moreover, strong winds prevalent in the area might cause dust accumulation on the panels' surface which can further decrease their efficiency and overall power generation capabilities. To mitigate these challenges and ensure optimal energy production from solar installations at Ngaruawahia, Waikato, it is recommended to install panels at an ideal tilt angle of 33 degrees North.
Regular maintenance practices such as cleaning the panels to remove dust or debris should also be implemented to maintain their performance over time. By taking these preventative measures into account during installation and ongoing care of solar PV systems at Ngaruawahia's specific location, greater energy production can be achieved despite any potential environmental or weather-related obstacles that may arise throughout the year.
Note: The Southern Temperate Zone extends from -35° latitude South down to -66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 105 locations across New Zealand. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in New Zealand by location

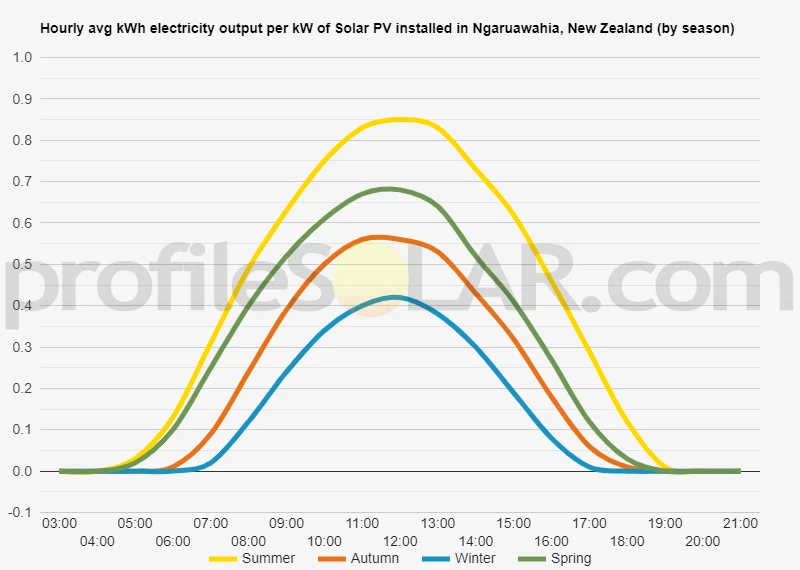

Solar output per kW of installed solar PV by season in Ngaruawahia
Seasonal solar PV output for Latitude: -37.6681, Longitude: 175.1536 (Ngaruawahia, New Zealand), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 33° North in Ngaruawahia, New Zealand
To maximize your solar PV system's energy output in Ngaruawahia, New Zealand (Lat/Long -37.6681, 175.1536) throughout the year, you should tilt your panels at an angle of 33° North for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Ngaruawahia, New Zealand
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ngaruawahia, New Zealand. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 33° North tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 22° North in Summer | 42° North in Autumn | 53° North in Winter | 30° North in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Ngaruawahia, New Zealand
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ngaruawahia, New Zealand.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Ngaruawahia, New Zealand
The topography around Ngaruawahia, New Zealand is mostly flat with rolling hills and valleys. The nearby areas that would be most suited to large scale solar PV installations are the flat plains and open fields located south of the city. These areas have plenty of open space, good access to roads, and direct exposure to sunlight. Additionally, these locations are relatively close to existing power lines which can help with efficient distribution of energy generated from the solar installation.
New Zealand solar PV Stats as a country
New Zealand ranks 78th in the world for cumulative solar PV capacity, with 146 total MW's of solar PV installed. Each year New Zealand is generating 29 Watts from solar PV per capita (New Zealand ranks 58th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in New Zealand?
Yes, there are several incentives for businesses wanting to install solar energy in New Zealand. The government offers a range of grants and subsidies to help businesses reduce their energy costs and increase their use of renewable energy sources. These include the Solar PV Grant Scheme, which provides up to $20,000 per installation towards the cost of installing solar photovoltaic (PV) systems; the Low Emission Vehicles Contestable Fund, which provides funding for electric vehicles; and the Energy Efficiency and Conservation Authority’s Business Energy Management Programme, which helps businesses identify ways to save money on their energy bills. Additionally, some local councils offer rates rebates or other incentives for businesses that install solar panels.
Do you have more up to date information than this on incentives towards solar PV projects in New Zealand? Please reach out to us and help us keep this information current. Thanks!
