Otara, New Zealand, located at latitude -36.9486 and longitude 174.8659 in the Southern Temperate Zone, offers varying potential for solar PV energy generation throughout the year. This Auckland suburb experiences significant seasonal fluctuations in solar energy production that prospective solar panel owners should understand.

Seasonal Solar Production

Solar panels in Otara would produce their highest output during summer months, generating approximately 7.17 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.55 kWh/day. Production decreases considerably during autumn (3.94 kWh/day) and reaches its lowest point in winter, when panels produce only 2.62 kWh/day per installed kilowatt.

This seasonal pattern creates a substantial difference between summer and winter production, with summer generating nearly three times the energy of winter months. The significant drop during colder months means households relying heavily on solar would need to plan for supplementary power sources during winter.

Optimal Panel Installation

For fixed solar panel installations in Otara, the ideal tilt angle to maximize year-round energy production is 32 degrees facing North. This specific angle optimizes the total annual energy harvest by accounting for the sun's changing position throughout the year while considering the location's latitude in the Southern Hemisphere.

Environmental and Weather Considerations

Several environmental factors could impact solar production in Otara:

• Auckland's relatively high rainfall and cloudy days, particularly during winter months, can temporarily reduce solar efficiency
• Coastal proximity means salt spray could accumulate on panels over time, potentially degrading performance if not regularly maintained
• Urban pollution and dust from nearby industrial areas and highways may gradually coat panels, reducing their effectiveness

To mitigate these challenges, solar installations in Otara should incorporate regular cleaning schedules, possibly including automated cleaning systems for larger installations. Panels with high-quality protective coatings resistant to salt corrosion are recommended. Additionally, micro-inverter or power optimizer technology can help minimize production losses when some panels are partially shaded or affected by debris.

Despite these considerations, Otara's location still provides sufficient solar resources to make PV installations worthwhile, especially when properly designed to account for seasonal variations and local environmental conditions.

Note: The Southern Temperate Zone extends from -35° latitude South down to -66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 105 locations across New Zealand. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in New Zealand by location

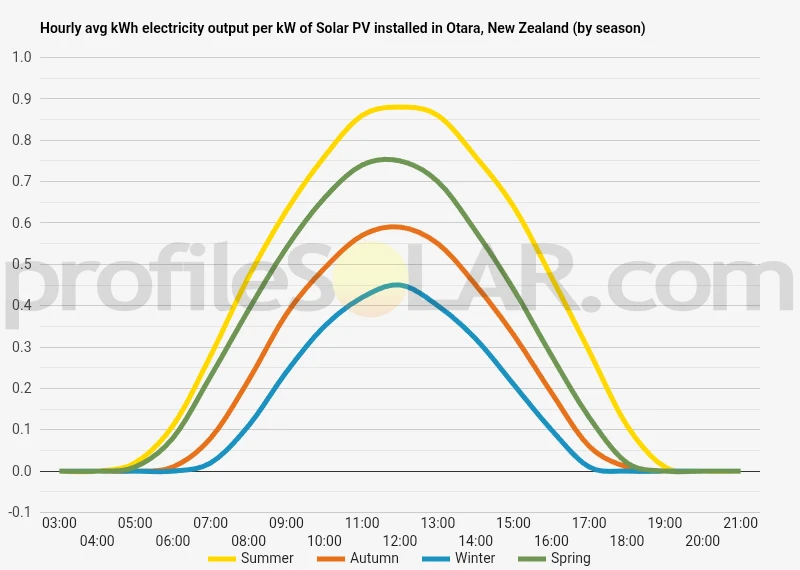

Solar output per kW of installed solar PV by season in Otara

Seasonal solar PV output for Latitude: -36.9486, Longitude: 174.8659 (Otara, New Zealand), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 32° North in Otara, New Zealand

To maximize your solar PV system's energy output in Otara, New Zealand (Lat/Long -36.9486, 174.8659) throughout the year, you should tilt your panels at an angle of 32° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Otara, New Zealand

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Otara, New Zealand. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 32° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
21° North in Summer	42° North in Autumn	52° North in Winter	30° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Otara, New Zealand

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Otara, New Zealand.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Otara, New Zealand

The topography around Otara in South Auckland, New Zealand presents a varied landscape characterized by gentle rolling hills, flat lowlands, and volcanic features. Otara itself sits in a relatively flat basin that forms part of the wider Manukau lowlands. This area was historically dominated by wetlands before urban development transformed the landscape. The terrain gradually rises toward the east, where the Otara Creek flows through the community before eventually emptying into the Tamaki Estuary. To the southwest of Otara lies the Manukau Harbour, a large, relatively shallow harbor that significantly influences the local geography. The harbor's coastal plains extend inland, creating expansive flat areas that gradually transition into more undulating terrain. These flat, open spaces represent some of the most potentially viable areas for solar development in the region.

Volcanic Features

The broader Auckland region, including areas surrounding Otara, is built upon a volcanic field containing approximately 50 volcanoes. While none of these volcanic cones are directly in Otara, several nearby features influence the topography, including Maungarei (Mount Wellington) to the northeast and Ōtāhuhu to the southeast. These volcanic cones create distinctive elevated points in an otherwise moderately flat landscape.

Potential Solar PV Sites

When considering locations for large-scale solar photovoltaic installations near Otara, several areas stand out as particularly suitable based on topographical considerations: The flat, open areas extending toward the Manukau Harbour present excellent potential for solar development. These locations offer minimal topographical shading, good drainage, and relatively unobstructed exposure to the northern sky (which is optimal for solar collection in the Southern Hemisphere). The gently sloping terrain in these areas also facilitates installation without requiring extensive earthworks. The eastern fringes of Otara, where the land begins to rise slightly, could also accommodate solar installations on north-facing slopes. These areas would benefit from favorable orientation toward the sun's path while potentially requiring less land area than completely flat installations due to the natural tilt of the terrain. Industrial zones in neighboring Māngere and East Tamaki feature extensive flat rooftops and open land that could be repurposed for solar arrays. These areas already have significant electrical infrastructure in place, potentially reducing connection costs for new solar installations.

Topographical Challenges

Despite the generally favorable terrain, some topographical challenges exist for solar development around Otara. The urban nature of much of the surrounding area limits available space for truly large-scale installations. Additionally, some low-lying areas near Otara Creek have potential flooding concerns that would need to be addressed in any solar development plans. The volcanic soil composition in parts of the region, while generally stable, may require specific foundation approaches for larger installations. The presence of the Manukau Harbour also means that some potential development areas may be exposed to salt spray, necessitating appropriate equipment selection to prevent accelerated corrosion. In conclusion, the relatively flat topography surrounding Otara, particularly toward the Manukau Harbour and in industrial zones, presents viable opportunities for solar PV development. The most suitable areas combine flat or gently north-sloping terrain with good drainage and minimal obstruction from natural or man-made features that could cast shadows on solar arrays.

New Zealand solar PV Stats as a country

New Zealand ranks 78th in the world for cumulative solar PV capacity, with 146 total MW's of solar PV installed. Each year New Zealand is generating 29 Watts from solar PV per capita (New Zealand ranks 58th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in New Zealand?

Yes, there are several incentives for businesses wanting to install solar energy in New Zealand. The government offers a range of grants and subsidies to help businesses reduce their energy costs and increase their use of renewable energy sources. These include the Solar PV Grant Scheme, which provides up to $20,000 per installation towards the cost of installing solar photovoltaic (PV) systems; the Low Emission Vehicles Contestable Fund, which provides funding for electric vehicles; and the Energy Efficiency and Conservation Authority’s Business Energy Management Programme, which helps businesses identify ways to save money on their energy bills. Additionally, some local councils offer rates rebates or other incentives for businesses that install solar panels.

Do you have more up to date information than this on incentives towards solar PV projects in New Zealand? Please reach out to us and help us keep this information current. Thanks!
