Rukuhia, Waikato Region, New Zealand presents a moderately suitable location for year-round solar PV energy generation, though with notable seasonal variations typical of its Southern Temperate Zone positioning.

Seasonal Solar Performance

The solar energy output at Rukuhia shows significant seasonal fluctuation. Summer delivers the strongest performance at 7.08kWh per day per kW of installed solar capacity, making it an excellent time for solar generation. Spring follows as the second-best season with 5.21kWh per day per kW, offering good energy production during this transitional period. Autumn sees a notable decline to 3.80kWh per day per kW, while winter presents the most challenging conditions with only 2.43kWh per day per kW. This winter output represents just over one-third of summer production, highlighting the seasonal dependency of solar generation at this location. For optimal year-round performance, fixed solar panels at Rukuhia should be tilted at 33 degrees facing north. This angle maximizes total annual energy production by accounting for the sun's varying position throughout the year and the location's specific latitude.

Local Factors Affecting Solar Production

Several environmental and weather factors at Rukuhia can significantly impact solar energy generation:

• High humidity and frequent rainfall, particularly during winter months, can reduce solar irradiance and create persistent cloud cover
• Salt-laden air from nearby coastal areas may cause accelerated corrosion of panel frames and mounting systems
• Strong winds common in the Waikato region can create mechanical stress on installations and blow debris onto panels
• Morning fog and mist, typical of the area's agricultural landscape, can delay peak solar production hours

Preventative Installation Measures

To maximize solar energy production despite these challenges, several installation strategies prove beneficial:

• Use marine-grade aluminum frames and stainless steel mounting hardware to resist salt corrosion
• Install panels with adequate spacing to promote air circulation and faster drying after rain or fog
• Employ robust mounting systems designed for high wind loads, with proper structural engineering assessments
• Consider anti-reflective coatings on panels to maintain efficiency during overcast conditions
• Plan for regular cleaning schedules, particularly after storms or during high-pollen agricultural seasons

While Rukuhia faces some environmental challenges for solar generation, proper installation techniques and equipment selection can significantly mitigate these issues and ensure reliable energy production throughout the year.

Note: The Southern Temperate Zone extends from -35° latitude South down to -66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 105 locations across New Zealand. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in New Zealand by location

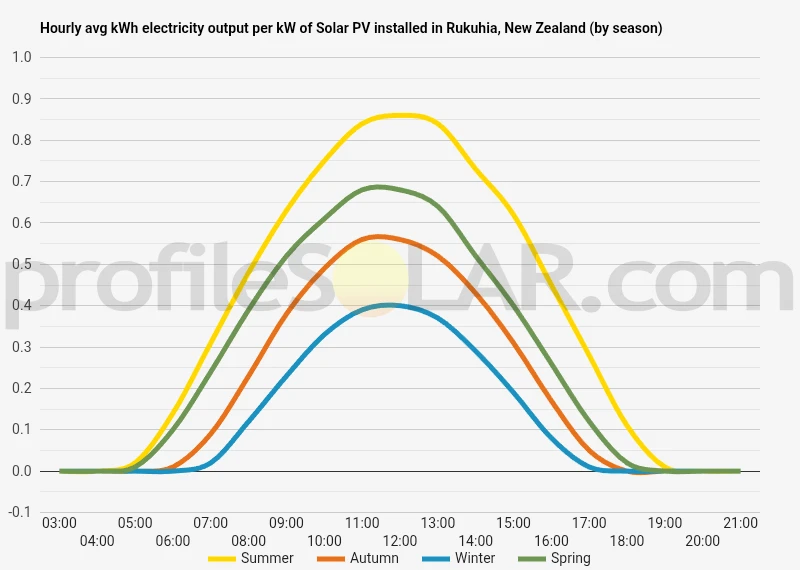

Solar output per kW of installed solar PV by season in Rukuhia

Seasonal solar PV output for Latitude: -37.8701, Longitude: 175.2807 (Rukuhia, New Zealand), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 33° North in Rukuhia, New Zealand

To maximize your solar PV system's energy output in Rukuhia, New Zealand (Lat/Long -37.8701, 175.2807) throughout the year, you should tilt your panels at an angle of 33° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rukuhia, New Zealand

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rukuhia, New Zealand. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 33° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
22° North in Summer	43° North in Autumn	53° North in Winter	31° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rukuhia, New Zealand

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rukuhia, New Zealand.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rukuhia, New Zealand

Topography of the Rukuhia Region

Rukuhia sits in the heart of the Waikato region on New Zealand's North Island, positioned within a landscape characterized by gently rolling hills and expansive flat plains. The area forms part of the broader Waikato River valley system, where the terrain has been shaped by centuries of river meandering and volcanic activity from the nearby Taupo Volcanic Zone. The immediate vicinity around Rukuhia features predominantly low-lying agricultural land with elevations typically ranging between 30 to 80 meters above sea level.

The topography here is remarkably gentle, with gradual slopes that rarely exceed 10 degrees across most of the surrounding farmland. This characteristic rolling landscape is interspersed with small waterways and drainage channels that feed into the Waikato River system. The soil composition consists largely of fertile alluvial deposits and volcanic ash, which has made this region one of New Zealand's premier agricultural areas, particularly for dairy farming and crop cultivation.

Moving outward from Rukuhia, the terrain gradually becomes more varied. To the east, the land begins to rise more noticeably toward the Mamaku Plateau, while to the west, the Hakarimata Range creates a more pronounced topographical feature with steeper gradients and higher elevations reaching several hundred meters above sea level.

Optimal Areas for Large-Scale Solar Development

The flat to gently undulating plains immediately surrounding Rukuhia present excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas lie within a 10-kilometer radius of the town center, where the terrain remains consistently gentle and offers extensive open spaces currently used for pastoral farming. These areas provide the dual advantages of minimal grading requirements and reduced installation costs due to the favorable topography.

Particularly promising locations can be found to the north and northwest of Rukuhia, where large paddocks stretch across relatively flat terrain with minimal tree coverage or other obstructions. The consistent elevation and gentle slopes in these areas would allow for optimal panel orientation and spacing while minimizing shading issues between solar array rows.

The agricultural land to the south and southeast also presents viable options, though some areas feature slightly more undulating terrain that might require additional site preparation. However, these gentle rises and falls could actually be advantageous for drainage and panel positioning when properly planned.

Areas closer to the Hakarimata Range to the west would be less suitable for large-scale installations due to increased slope angles and potential shading from the elevated terrain. Similarly, locations near waterways and wetland areas would face additional environmental and regulatory considerations that could complicate development.

The region's existing agricultural infrastructure, including good road access and proximity to electrical transmission lines, makes many of these flat agricultural areas particularly attractive for solar development. The combination of favorable topography, existing infrastructure, and large available land parcels creates ideal conditions for utility-scale solar projects in the Rukuhia area.

New Zealand solar PV Stats as a country

New Zealand ranks 78th in the world for cumulative solar PV capacity, with 146 total MW's of solar PV installed. Each year New Zealand is generating 29 Watts from solar PV per capita (New Zealand ranks 58th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in New Zealand?

Yes, there are several incentives for businesses wanting to install solar energy in New Zealand. The government offers a range of grants and subsidies to help businesses reduce their energy costs and increase their use of renewable energy sources. These include the Solar PV Grant Scheme, which provides up to $20,000 per installation towards the cost of installing solar photovoltaic (PV) systems; the Low Emission Vehicles Contestable Fund, which provides funding for electric vehicles; and the Energy Efficiency and Conservation Authority’s Business Energy Management Programme, which helps businesses identify ways to save money on their energy bills. Additionally, some local councils offer rates rebates or other incentives for businesses that install solar panels.

Do you have more up to date information than this on incentives towards solar PV projects in New Zealand? Please reach out to us and help us keep this information current. Thanks!
