Te Kuiti, Waikato Region, New Zealand, located at latitude -38.3383 and longitude 175.1705, presents a mixed picture for solar PV energy generation throughout the year. Situated in the Southern Temperate Zone, this location experiences significant seasonal variations in solar energy production.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Te Kuiti, Waikato Region, with an impressive daily output of 7.09kWh per kW of installed solar capacity. Spring follows as the second-best season, generating 5.24kWh per day. Autumn sees a notable decrease in production at 3.76kWh daily, while winter experiences the lowest output at 2.37kWh per day.

These figures highlight the substantial difference between summer and winter production, with summer generating nearly three times more energy than winter. This variance is typical for locations in temperate zones, where the sun's angle and daylight hours change dramatically throughout the year.

Optimal Panel Installation

For fixed panel installations in Te Kuiti, Waikato Region, the ideal tilt angle to maximize year-round solar production is 33 degrees facing North. This angle is calculated to capture the most sunlight across all seasons, balancing the high summer sun with the lower winter sun angle.

Best Times for Solar Generation

The most favorable period for solar energy production in Te Kuiti spans from late spring through early autumn (approximately November to March). During these months, longer daylight hours and higher sun angles contribute to peak energy generation. However, it's important to note that even during the less productive winter months, solar panels will still generate electricity, albeit at reduced levels.

Environmental Factors and Mitigation

While Te Kuiti doesn't face extreme environmental challenges for solar production, there are a few factors to consider:

• Cloud cover: The region can experience periods of overcast weather, particularly in winter, which may reduce solar output. Using high-efficiency panels can help mitigate this issue.
• Rain: Te Kuiti receives moderate rainfall throughout the year. While rain itself doesn't significantly impact solar panels, it's essential to ensure proper drainage and tilting to prevent water accumulation.

To maximize solar energy production in Te Kuiti, Waikato Region, consider installing a tracking system to follow the sun's path, use high-efficiency panels, and implement regular cleaning and maintenance routines. Additionally, a hybrid system combining solar with other renewable energy sources could help balance the seasonal variations in solar output.

Note: The Southern Temperate Zone extends from -35° latitude South down to -66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 105 locations across New Zealand. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in New Zealand by location

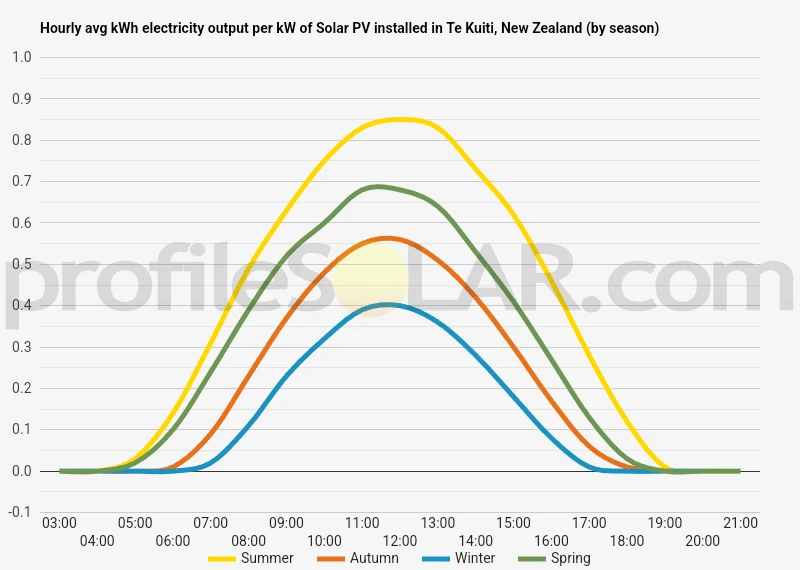

Solar output per kW of installed solar PV by season in Te Kuiti

Seasonal solar PV output for Latitude: -38.3383, Longitude: 175.1705 (Te Kuiti, New Zealand), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 33° North in Te Kuiti, New Zealand

To maximize your solar PV system's energy output in Te Kuiti, New Zealand (Lat/Long -38.3383, 175.1705) throughout the year, you should tilt your panels at an angle of 33° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Te Kuiti, New Zealand

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Te Kuiti, New Zealand. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 33° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
22° North in Summer	43° North in Autumn	53° North in Winter	31° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Te Kuiti, New Zealand

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Te Kuiti, New Zealand.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Te Kuiti, New Zealand

Te Kuiti, located in the heart of New Zealand's North Island, is situated in a region characterized by diverse and picturesque topography. The landscape surrounding this small town is a blend of rolling hills, lush valleys, and limestone formations that create a unique and captivating environment. The area around Te Kuiti is part of the King Country, known for its undulating terrain. To the west of the town, the land gradually rises towards the Mahoenui Range, a series of hills that form part of the western boundary of the region. These hills are often covered in a mix of native bush and pastoral farmland, creating a patchwork of green hues across the landscape. To the east, the terrain becomes more rugged as it approaches the Rangitoto Range. This area is marked by steeper hills and deeper valleys, with some parts covered in dense native forests. The Mangaokewa River winds its way through the landscape, carving out scenic gorges and providing a vital water source for the region.

Potential for Solar PV Development

When considering areas nearby Te Kuiti for large-scale solar PV installations, several factors come into play. The most suitable locations would be those with relatively flat or gently sloping terrain, good sun exposure, and minimal shading from surrounding hills or vegetation. The plains and lower slopes to the north and northeast of Te Kuiti offer promising potential for solar development. These areas tend to have more open, less rugged terrain, which would facilitate easier installation and maintenance of solar panels. The gentler slopes in these directions also receive good sunlight throughout the day, with fewer obstructions from higher hills. Some of the elevated plateaus found in the surrounding countryside could also be suitable for solar farms. These areas often have clear views of the sky and receive consistent sunlight. However, careful consideration would need to be given to accessibility and grid connection. It's important to note that while the region around Te Kuiti has potential for solar PV development, any large-scale projects would need to balance energy production with the preservation of the area's natural beauty and agricultural land use. Environmental impact assessments and community consultations would be crucial steps in identifying the most appropriate locations for such installations.

New Zealand solar PV Stats as a country

New Zealand ranks 78th in the world for cumulative solar PV capacity, with 146 total MW's of solar PV installed. Each year New Zealand is generating 29 Watts from solar PV per capita (New Zealand ranks 58th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in New Zealand?

Yes, there are several incentives for businesses wanting to install solar energy in New Zealand. The government offers a range of grants and subsidies to help businesses reduce their energy costs and increase their use of renewable energy sources. These include the Solar PV Grant Scheme, which provides up to $20,000 per installation towards the cost of installing solar photovoltaic (PV) systems; the Low Emission Vehicles Contestable Fund, which provides funding for electric vehicles; and the Energy Efficiency and Conservation Authority’s Business Energy Management Programme, which helps businesses identify ways to save money on their energy bills. Additionally, some local councils offer rates rebates or other incentives for businesses that install solar panels.

Do you have more up to date information than this on incentives towards solar PV projects in New Zealand? Please reach out to us and help us keep this information current. Thanks!
