Location estimate

Twizel

Canterbury · New Zealand

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

6.78

kWh/day

Autumn

3.51

kWh/day

Winter

2.04

kWh/day

Spring

5.64

kWh/day

Shared scale: 0–7.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Twizel, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 6.78 6.78 × 1 kWp = 6.78 kWh/day
Autumn 3.51 3.51 × 1 kWp = 3.51 kWh/day
Winter 2.04 2.04 × 1 kWp = 2.04 kWh/day
Spring 5.64 5.64 × 1 kWp = 5.64 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
6.78
Autumn · kWh/day
3.51
Winter · kWh/day
2.04
Spring · kWh/day
5.64

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 38 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
38°
Facing direction
North

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Dec, Jan, Feb
28°North
Autumn
Mar, Apr, May
48°North
Winter
Jun, Jul, Aug
59°North
Spring
Sep, Oct, Nov
37°North

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Twizel, Canterbury, New Zealand.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 28 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

28° tilt · North

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 48 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

48° tilt · North

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 59 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

59° tilt · North

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 37 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

37° tilt · North

Illustrative direction; exact azimuth not recorded.

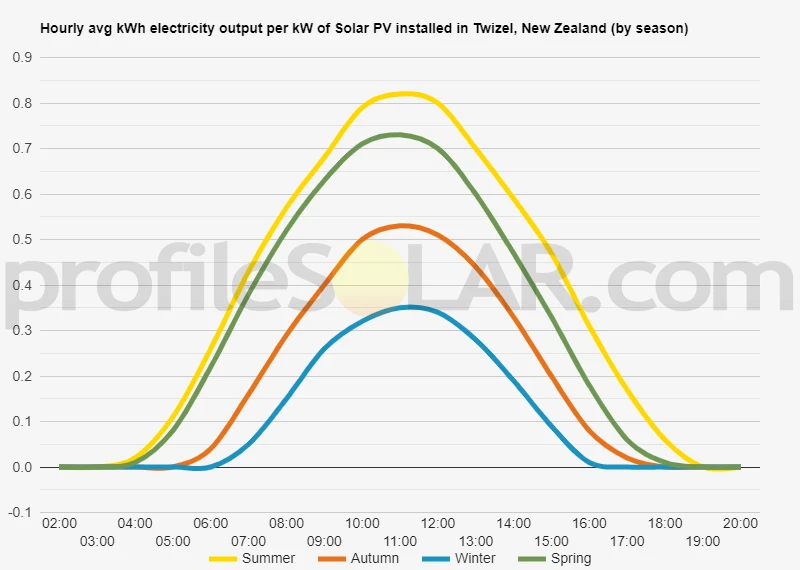

Historical hourly-by-season solar output chart for Twizel, New Zealand. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Twizel, New Zealand

Hourly profiles by season — Twizel, New Zealand · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Twizel, New Zealand · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Twizel

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 4.58 m

Proportional side viewDesign sun: ≈ 22.29° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 3 m
Added margin
≈ 0 m
Gap including margin
≈ 3 m
Panel horizontal footprint
≈ 1.58 m
Panel vertical rise
≈ 1.23 m
Pitch before margin
≈ 4.58 m

Simplified level ground, equator-facing cross-section. Approximate Southern Hemisphere winter solstice at solar noon (day 172). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
38°
Added margin
0 m
Latitude from the catalogue
-44.258200000000000000° (Southern Hemisphere)
Panel horizontal footprint
1.5760215072134438 m
Panel vertical rise
1.2313229506513166 m
Calculated clear gap
3.003467454443459 m
Pitch before margin
4.579488961656903 m
Gap including margin
3.003467454443459 m
Row pitch including margin
4.579488961656903 m
Design solar elevation
22.292017153186347°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Twizel

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Twizel's Mackenzie Basin setting is expansive, but its apparent openness is only one part of the solar picture. Glacial landscapes, lakes, altered water routes and the distant mountain skyline give the area a distinctive character. A real installation still needs its own horizon rather than assuming every flat-looking surface is equally exposed.

Read the full article

Our seasonal estimate for each 1 kW of rated panel capacity gives average daily electricity of 6.78 kWh/day in summer, 5.64 kWh/day in spring, 3.51 kWh/day in autumn and 2.04 kWh/day in winter. Summer leads the comparison and winter is substantially lower. The figures help compare generation with demand without proving that cloudy or foggy periods are insignificant. The recorded year-round panel reference is 38° from horizontal, facing North. It uses output weighting and simplified solar geometry. It is a broad fixed setting, not a site survey or evidence that areas north and east of town receive more usable sunshine than all other directions. Around the wider basin, moraines, meltwater deposits, hollows and wetlands reflect the history of large valley glaciers. Lakes Pukaki, Ohau and Tekapo occupy glacial troughs, with hydropower infrastructure also reshaping parts of the water system. These are working and ecological landscapes as well as visually open ones. Vegetation is another locally important detail. DOC describes the spread of wilding conifers from earlier plantings near the Ben Ohau Range and other basin sites, affecting native tussock and shrub country. The distinction between an open area, a planted shelter belt and a dense stand can matter to a nearby roof's horizon. It does not mean vegetation should be cleared for a project without considering its role and permissions. Structure, actual shadows, exposure and access need assessment at the proposed array, separately from the broad basin resource.

Topography around Twizel

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Twizel lies within the Mackenzie Basin, southeast of the Southern Alps. The wider basin contains broad surfaces alongside rugged mountain chains, large glacial lakes and smaller hollows and wetlands.

Read the full topography description

DOC's wetland directory describes moraine and outwash deposits left by valley glaciers, with undulating ground and scattered depressions between the major lakes. These features show why the basin is more varied than an entirely level plain. Hydroelectric development has also modified lake outlets and river connections, adding engineered water routes to the natural landforms. Native tussock and shrubland are important parts of the regional landscape. Wilding conifers spreading from past plantings have changed some areas, including surroundings of the Ben Ohau Range near Twizel. The visible tree cover and local mountain horizon therefore need to be checked at the time and position of an actual proposal. A broad open view does not establish the availability or suitability of a field, wetland edge or terrace for solar development. Local ground, water routes, ecological values and the installation's precise horizon remain separate questions. The catalogue's seasonal estimate does not select a preferred compass sector around town or calculate a property's shade.

Technical location reference

Approximate map point used for Twizel, New Zealand

This coordinate is the calculation reference for Twizel, New Zealand. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
-44.258200000000000000, 170.109200000000000000
Originally displayed coordinate
lat-44.2582 / long170.1092

How the estimate works

How this Twizel estimate was calculated

Here is how I calculated the location estimate for Twizel, New Zealand.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Twizel Location estimate includes and leaves out

Use the Twizel figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
