Upper Moutere, Tasman District, New Zealand offers a moderately favorable location for year-round solar energy generation, though with significant seasonal variation typical of its Southern Temperate Zone position. The solar output data reveals a clear pattern that makes this location reasonably suitable for solar PV installations, with some important considerations for optimal performance.

Seasonal Solar Performance

The location experiences its strongest solar generation during summer months, producing 7.00kWh per day per kW of installed capacity. This represents the peak performance period when solar panels will deliver their maximum energy output. Spring follows as the second-best season with 5.44kWh/day per kW, making it another highly productive period for solar energy generation. Autumn sees a notable decline to 3.52kWh/day per kW, while winter represents the most challenging period with only 2.13kWh/day per kW of installed capacity. This winter figure is approximately 30% of the summer output, indicating substantial seasonal variation that potential solar adopters should factor into their energy planning.

Optimal Installation Configuration

For fixed panel installations at Upper Moutere, Tasman District, the ideal tilt angle to maximize total year-round solar production is 36 degrees facing North. This angle has been calculated to optimize solar capture across all seasons by accounting for the sun's varying elevation throughout the year and weighting these angles according to actual solar irradiance data.

Local Environmental Factors

Several environmental and weather factors at Upper Moutere could potentially impact solar panel performance:

• Coastal moisture and salt air: Being relatively close to Tasman Bay, salt-laden air can accumulate on solar panels, reducing their efficiency over time
• Dust and pollen: The rural agricultural setting may contribute to dust accumulation, particularly during dry periods and harvest seasons
• Bird activity: Rural locations often experience higher bird populations, leading to potential soiling from bird droppings
• Vegetation growth: The temperate climate supports vigorous plant growth that could create shading issues if not properly managed

Preventative Measures for Optimal Performance

To maximize solar energy production at this location, several preventative measures should be considered during installation and ongoing maintenance: Regular cleaning schedules become particularly important due to the salt air and rural dust. Installing panels with adequate spacing from surrounding vegetation and ensuring trees are trimmed to prevent future shading will help maintain optimal sun exposure. The panel mounting system should be robust enough to handle the coastal wind conditions while maintaining the optimal 36-degree tilt angle. Selecting panels with good low-light performance characteristics will help maximize energy capture during the lower-output autumn and winter months. Additionally, considering the significant seasonal variation, battery storage systems or grid-tie arrangements become more valuable at this location to manage the substantial difference between summer and winter production levels. The location's moderate solar resource makes it suitable for solar PV installation, particularly when proper attention is paid to positioning, maintenance, and system design that accounts for the notable seasonal production variations.

Note: The Southern Temperate Zone extends from -35° latitude South down to -66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 105 locations across New Zealand. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in New Zealand by location

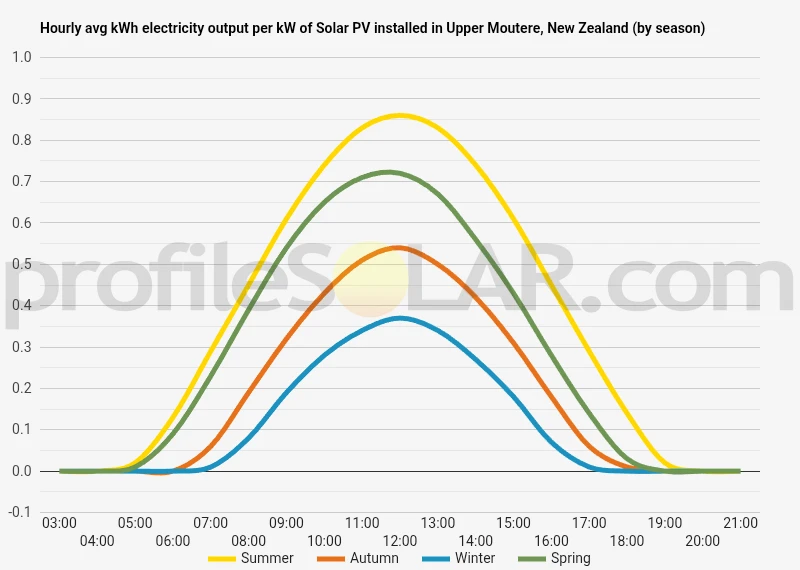

Solar output per kW of installed solar PV by season in Upper Moutere

Seasonal solar PV output for Latitude: -41.2627, Longitude: 173.0511 (Upper Moutere, New Zealand), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° North in Upper Moutere, New Zealand

To maximize your solar PV system's energy output in Upper Moutere, New Zealand (Lat/Long -41.2627, 173.0511) throughout the year, you should tilt your panels at an angle of 36° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Upper Moutere, New Zealand

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Upper Moutere, New Zealand. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° North in Summer	46° North in Autumn	56° North in Winter	34° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Upper Moutere, New Zealand

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Upper Moutere, New Zealand.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Upper Moutere, New Zealand

Topographical Features of Upper Moutere

Upper Moutere sits within the Tasman District of New Zealand's South Island, positioned in a region characterized by gently rolling hills and undulating terrain. The area forms part of the broader Moutere Hills, which extend across much of the western Nelson region. These hills represent an ancient landscape of weathered sedimentary rocks that have been shaped over millions of years into relatively gentle, rounded forms.

The elevation around Upper Moutere typically ranges from 100 to 400 meters above sea level, creating a landscape of moderate relief that rises gradually from the nearby Tasman Bay coastal plains. The terrain is predominantly composed of clay-rich soils developed from underlying mudstone and siltstone formations, which contribute to the area's reputation for fertile agricultural land.

Water features in the region include numerous small streams and creeks that flow through valleys carved between the hills. These waterways generally drain toward either the Moutere River system to the east or directly toward Tasman Bay to the north. The valleys tend to be relatively shallow and broad rather than deeply incised, reflecting the gentle nature of the local topography.

Slope Characteristics and Orientation

The hillsides around Upper Moutere display a mix of aspects, with slopes facing various directions throughout the undulating landscape. Many of the hills feature gradual gradients that rarely exceed 20 degrees, making them accessible for various land uses including agriculture and potentially renewable energy infrastructure. The rounded nature of these hills means that north-facing slopes, which receive optimal solar exposure in the Southern Hemisphere, are well represented throughout the area.

The relatively stable geology and moderate slopes contribute to minimal erosion concerns across much of the region. This stability, combined with the clay-rich soils that provide good foundation conditions, creates favorable circumstances for infrastructure development where appropriate.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Upper Moutere would be the gently sloping, north-facing hillsides that characterize much of the local landscape. These areas offer the dual advantages of optimal solar orientation and manageable gradients that would facilitate construction and maintenance access.

Particularly favorable sites would include the broader hilltops and upper slopes where the terrain is most stable and where development would have minimal impact on productive agricultural land in the valleys. The elevated positions of these sites would also help minimize shading issues that could affect solar panel efficiency.

Areas to the west and southwest of Upper Moutere village center present especially promising opportunities, where several hills offer extensive north-facing slopes with gradual gradients. These locations benefit from being somewhat removed from the most intensively farmed valley floors while still maintaining reasonable access to existing road networks.

The region's distance from major urban centers means that visual impact considerations might be less restrictive than in more densely populated areas, potentially allowing for larger installations on prominent hilltops. However, the most practical approach would likely focus on sites that balance solar exposure with accessibility, avoiding the steepest slopes and areas prone to seasonal waterlogging in the clay soils.

New Zealand solar PV Stats as a country

New Zealand ranks 78th in the world for cumulative solar PV capacity, with 146 total MW's of solar PV installed. Each year New Zealand is generating 29 Watts from solar PV per capita (New Zealand ranks 58th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in New Zealand?

Yes, there are several incentives for businesses wanting to install solar energy in New Zealand. The government offers a range of grants and subsidies to help businesses reduce their energy costs and increase their use of renewable energy sources. These include the Solar PV Grant Scheme, which provides up to $20,000 per installation towards the cost of installing solar photovoltaic (PV) systems; the Low Emission Vehicles Contestable Fund, which provides funding for electric vehicles; and the Energy Efficiency and Conservation Authority’s Business Energy Management Programme, which helps businesses identify ways to save money on their energy bills. Additionally, some local councils offer rates rebates or other incentives for businesses that install solar panels.

Do you have more up to date information than this on incentives towards solar PV projects in New Zealand? Please reach out to us and help us keep this information current. Thanks!
