Chinandega, Nicaragua presents an excellent location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates 12.6312°N, -87.1347°W, this region benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods than traditional temperature-based seasons.

Solar Energy Output Performance

The solar energy production data for Chinandega shows remarkably consistent performance across all seasons. Spring emerges as the most productive period, generating 7.40 kWh per day per kW of installed solar capacity. Summer follows closely with 6.76 kWh/day per kW, while winter maintains strong output at 6.53 kWh/day per kW. Autumn shows the lowest but still substantial production at 6.46 kWh/day per kW. This consistent year-round performance makes Chinandega an ideal location for solar installations, as the variation between the highest and lowest producing seasons is less than 15%. The slight peak in spring production aligns well with the dry season when cloud cover is typically minimal.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 12 degrees facing south. This relatively shallow angle reflects the location's proximity to the equator, where the sun maintains a high position in the sky throughout the year.

Environmental and Weather Challenges

Several significant environmental factors could potentially impact solar production in Chinandega and require careful consideration during installation:

• Volcanic ash: Nicaragua's active volcanic region can deposit fine ash particles on solar panels, significantly reducing their efficiency
• Heavy rainfall: The pronounced wet season brings intense downpours that can cause flooding and water damage
• High humidity: Tropical humidity levels can accelerate corrosion of metal components and electrical connections
• Dust accumulation: The dry season can create dusty conditions that coat panels and reduce light transmission

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these challenges, several installation strategies should be implemented. Regular cleaning schedules become essential, particularly during volcanic activity and dusty dry periods. Installing panels with easy access for maintenance will facilitate this upkeep. Elevated mounting systems help protect against flooding while improving air circulation around panels, which reduces overheating and moisture buildup. Using marine-grade or specially treated mounting hardware and electrical components will resist corrosion in the humid tropical environment. Implementing robust drainage systems around the installation site prevents water accumulation during heavy rains. Additionally, installing monitoring systems allows for quick identification of performance drops that may indicate cleaning or maintenance needs. The consistent solar resource and manageable environmental challenges make Chinandega an attractive location for solar development, provided proper installation techniques and maintenance protocols are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 6 locations across Nicaragua. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Nicaragua by location

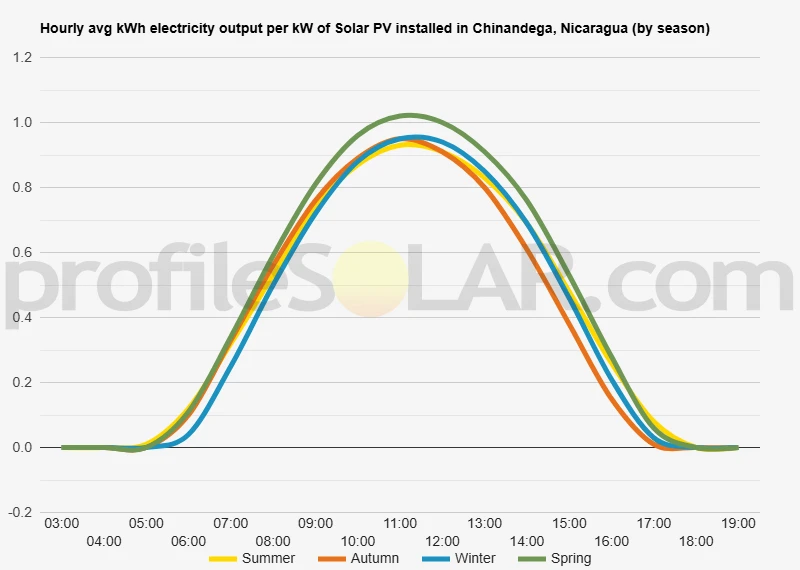

Solar output per kW of installed solar PV by season in Chinandega

Seasonal solar PV output for Latitude: 12.6312, Longitude: -87.1347 (Chinandega, Nicaragua), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 12° South in Chinandega, Nicaragua

To maximize your solar PV system's energy output in Chinandega, Nicaragua (Lat/Long 12.6312, -87.1347) throughout the year, you should tilt your panels at an angle of 12° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chinandega, Nicaragua

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chinandega, Nicaragua. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 12° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° North in Summer	18° South in Autumn	28° South in Winter	6° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chinandega, Nicaragua

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chinandega, Nicaragua.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chinandega, Nicaragua

Topographical Features of Chinandega

Chinandega sits in the northwestern region of Nicaragua within a relatively flat coastal plain that extends from the Pacific Ocean inland toward the volcanic highlands. The immediate area around the city is characterized by gently rolling terrain with minimal elevation changes, making it part of the broader Pacific lowlands that define much of western Nicaragua. This low-lying landscape gradually slopes from the interior toward the coastline, creating favorable conditions for both agriculture and potential renewable energy development.

The region's topography is heavily influenced by its position between two distinct geographical features: the Pacific Ocean to the west and the Cordillera de los Maribios volcanic chain to the east. While Chinandega itself occupies relatively level ground at modest elevations, the surrounding area includes both the flat coastal plains and the rising foothills that lead toward the volcanic highlands. This varied terrain creates microclimates and different land use opportunities across the broader region.

Several prominent volcanic peaks are visible from Chinandega, including Volcán San Cristóbal and Volcán Chonco, though these elevated areas lie some distance to the southeast of the city. The volcanic soils throughout the region are generally fertile, which explains the area's importance for agricultural production, particularly cotton, sugarcane, and various food crops. The landscape is intersected by seasonal waterways and drainage channels that carry runoff from the highlands toward the Pacific during the rainy season.

Optimal Areas for Large-Scale Solar Development

The expansive flat to gently rolling terrain surrounding Chinandega presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas would be found on the relatively level agricultural lands that extend both north and south of the city, where minimal grading would be required for solar array installation. These areas offer the dual advantages of accessible terrain and proximity to existing electrical infrastructure.

The coastal plain areas to the west of Chinandega would be particularly well-suited for solar development, as they combine favorable topographical conditions with lower agricultural value compared to the more fertile volcanic soils closer to the highlands. These western areas experience consistent exposure to solar radiation throughout the day without significant shadowing from topographical features, while remaining accessible via the region's road network.

Areas to the north and northwest of the city, extending toward the border with Honduras, offer additional promising locations for solar installations. This region features similar flat to gently undulating topography but with potentially lower land acquisition costs due to its distance from major population centers. The relatively sparse development in these areas would minimize conflicts with existing land uses while still providing reasonable access to transmission infrastructure.

The southeastern areas, while offering good solar exposure, become increasingly hilly as they approach the volcanic highlands. These locations would be less suitable for large-scale solar development due to the increased complexity and cost of installation on sloped terrain, as well as potential shadowing effects from the elevated topography. However, some of the transitional areas between the flat coastal plain and the rising foothills might still offer viable development opportunities with proper site selection and engineering.
