Solar Energy Potential in Masaya, Nicaragua

Masaya, Nicaragua, located at 11.9732° N, 86.0959° W, presents a highly favorable location for solar energy production throughout the year. Situated in the tropics, this location benefits from consistent sunlight patterns that make solar photovoltaic (PV) systems particularly effective as a renewable energy source. The seasonal electricity output from solar panels in Masaya demonstrates remarkable consistency with a slight advantage during springtime. For each kilowatt of installed solar capacity, the system produces 6.41 kWh per day in summer, 6.29 kWh per day in autumn, 6.36 kWh per day in winter, and an impressive 7.28 kWh per day in spring. This pattern indicates that while solar production remains strong year-round, the spring months offer peak generation potential.

Optimal Panel Installation

For fixed solar panel installations in Masaya, the ideal tilt angle to maximize year-round energy production is 11 degrees facing South. This specific angle has been calculated to optimize solar capture throughout the year, accounting for the Earth's elliptical orbit and the location's proximity to the equator.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Masaya that should be considered when planning installations:

• Volcanic ash from nearby Masaya Volcano can accumulate on panels, reducing efficiency if not regularly cleaned
• The region's wet season (typically May to October) can bring heavy rainfall and increased cloud cover, temporarily reducing solar output
• High humidity levels can cause accelerated degradation of electrical components if not properly protected
• Occasional tropical storms may bring strong winds that could damage improperly secured installations

Preventative Measures

To maximize energy production despite these challenges, several preventative measures are recommended: Installing panels at the optimal 11-degree tilt not only maximizes production but also promotes natural cleaning during rainfall. Additionally, implementing a regular cleaning schedule, especially during the dry season or after volcanic activity, will maintain optimal efficiency. Using corrosion-resistant components and proper sealing for all electrical connections will protect against humidity damage. For areas susceptible to strong winds, reinforced mounting systems with wind-rated components should be used. Finally, incorporating a monitoring system can help quickly identify any performance issues due to environmental factors and address them promptly. Despite these considerations, Masaya's consistent solar conditions throughout the year make it an excellent location for solar PV installations, with only minor seasonal variations in energy production.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 6 locations across Nicaragua. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Nicaragua by location

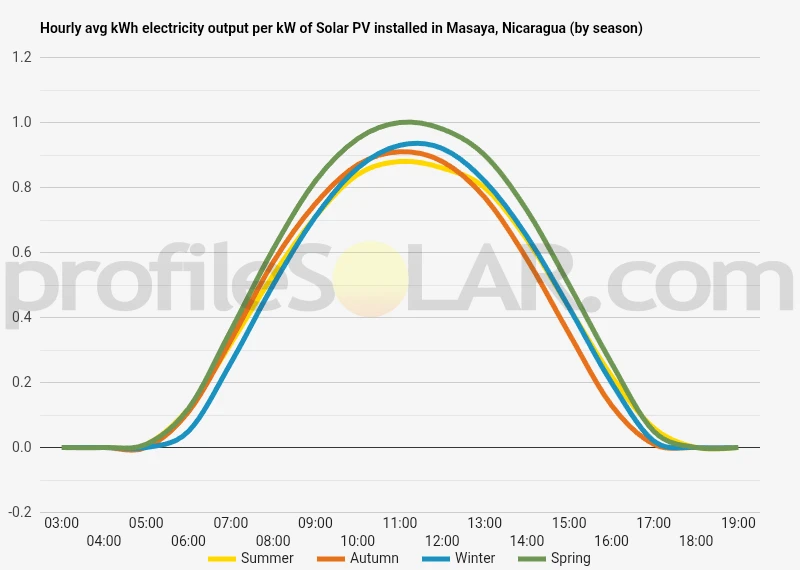

Solar output per kW of installed solar PV by season in Masaya

Seasonal solar PV output for Latitude: 11.9732, Longitude: -86.0959 (Masaya, Nicaragua), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 11° South in Masaya, Nicaragua

To maximize your solar PV system's energy output in Masaya, Nicaragua (Lat/Long 11.9732, -86.0959) throughout the year, you should tilt your panels at an angle of 11° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Masaya, Nicaragua

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Masaya, Nicaragua. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 11° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	18° South in Autumn	27° South in Winter	6° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Masaya, Nicaragua

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Masaya, Nicaragua.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Masaya, Nicaragua

The landscape surrounding Masaya, Nicaragua is characterized by a diverse topography shaped primarily by volcanic activity. Masaya sits within the Nicaraguan Depression, a vast lowland corridor that runs northwest to southeast through western Nicaragua. This region is part of the Central American Volcanic Arc, with the iconic Masaya Volcano being the dominant geological feature of the area. Masaya Volcano itself rises to approximately 635 meters above sea level and features a complex of calderas and craters. The most notable is Santiago Crater, which continuously emits sulfur dioxide gases. This active volcano creates a dramatic elevation change in the immediate vicinity of Masaya town, which sits at about 240 meters above sea level.

Surrounding Terrain

To the north and east of Masaya, the terrain gradually transitions to the more level plains that extend toward Lake Managua (Lake Xolotlán). These relatively flat areas have gentle slopes and are largely used for agriculture, particularly coffee plantations and other crops. The southern region becomes more undulating, with rolling hills that eventually rise toward the highlands near the border with Costa Rica. These hills are part of the volcanic chain that defines much of Nicaragua's Pacific region. To the west, the topography descends toward the Pacific coastal plains, with several volcanic formations creating interruptions in the otherwise gradually sloping terrain. This western corridor between Masaya and Managua features a mix of flat areas and volcanic hills.

Hydrological Features

The area contains significant hydrological features, most notably Lake Masaya, which lies in a volcanic crater adjacent to the city. Additionally, the region is not far from Lake Nicaragua (Lake Cocibolca), the largest freshwater lake in Central America, which influences the local climate and topography. Numerous small streams and seasonal waterways cut through the landscape, creating minor valleys and drainage patterns that follow the volcanic contours of the region.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, several areas around Masaya present favorable conditions: The northwestern plains between Masaya and Managua offer extensive flat terrain with minimal shading obstacles. These areas receive abundant solar radiation and have good accessibility via the existing road network, making them prime candidates for solar development. The southeastern regions, particularly the gently sloping areas extending toward Granada, provide substantial open spaces with favorable topography for solar arrays. These locations combine good solar exposure with relatively stable terrain that would require minimal grading for installation. The southwestern expanses, which feature plateaus and elevated flat areas, could also accommodate large solar installations. These higher elevation sites often experience less fog and atmospheric interference, potentially increasing solar efficiency. Areas to avoid would include the immediate vicinity of the Masaya Volcano due to potential volcanic hazards, the more densely forested regions to the south where clearing would present environmental concerns, and the steeper hillsides throughout the region where installation would be technically challenging and potentially disruptive to natural drainage patterns. The region's volcanic soil, while fertile for agriculture, generally provides good stability for ground-mounted solar systems, and the relatively consistent elevation across many of the plains areas would minimize the engineering complexities associated with varied terrain.
