Location estimate

Haugesund

Rogaland · Norway

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

5.44

kWh/day

Autumn

1.42

kWh/day

Winter

0.58

kWh/day

Spring

4.31

kWh/day

Shared scale: 0–6.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Haugesund, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 5.44 5.44 × 1 kWp = 5.44 kWh/day
Autumn 1.42 1.42 × 1 kWp = 1.42 kWh/day
Winter 0.58 0.58 × 1 kWp = 0.58 kWh/day
Spring 4.31 4.31 × 1 kWp = 4.31 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
5.44
Autumn · kWh/day
1.42
Winter · kWh/day
0.58
Spring · kWh/day
4.31

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 49 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
49°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
43°South
Autumn
Sep, Oct, Nov
61°South
Winter
Dec, Jan, Feb
72°South
Spring
Mar, Apr, May
51°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Haugesund, Rogaland, Norway.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 43 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

43° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 61 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

61° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 72 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

72° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 51 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

51° tilt · South

Illustrative direction; exact azimuth not recorded.

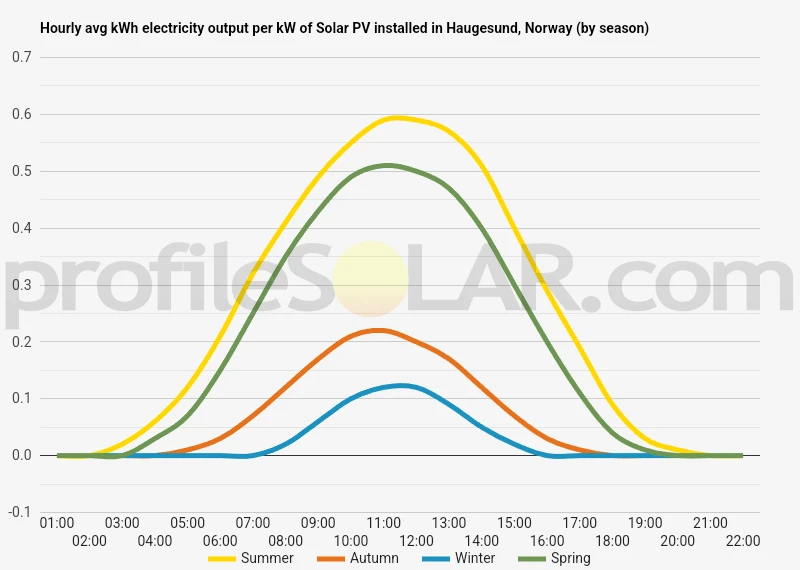

Historical hourly-by-season solar output chart for Haugesund, Norway. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Haugesund, Norway

Hourly profiles by season — Haugesund, Norway · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Haugesund, Norway · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Haugesund

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 13.36 m

Proportional side viewDesign sun: ≈ 7.14° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 12.05 m
Added margin
≈ 0 m
Gap including margin
≈ 12.05 m
Panel horizontal footprint
≈ 1.31 m
Panel vertical rise
≈ 1.51 m
Pitch before margin
≈ 13.36 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
49°
Added margin
0 m
Latitude from the catalogue
59.411600000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.3121180579810148 m
Panel vertical rise
1.5094191604455438 m
Calculated clear gap
12.052107658654908 m
Pitch before margin
13.364225716635923 m
Gap including margin
12.052107658654908 m
Row pitch including margin
13.364225716635923 m
Design solar elevation
7.138617153186355°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Haugesund

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

<p>Haugesund, Norway, situated at 59.4116 latitude and 5.2677 longitude, presents a challenging environment for year-round solar PV energy generation. Located in the Northern Temperate Zone, this coastal city experiences significant seasonal variations in solar output, which greatly impact its potential for consistent solar energy production.</p>

Read the full article

<h3>Seasonal Solar Performance</h3> <p>The solar energy output in Haugesund varies dramatically throughout the year. Summer months offer the most favorable conditions, with an average daily output of 5.44 kWh per kW of installed solar capacity. Spring follows as the second-most productive season, generating 4.31 kWh/day. However, autumn and winter see a sharp decline in solar performance, with outputs of 1.42 kWh/day and a mere 0.58 kWh/day, respectively.</p> <h3>Optimal Panel Installation</h3> <p>For fixed panels in Haugesund, our recorded year-round reference is 49 degrees facing south. The actual roof and local horizon also affect the layout.</p> <h3>Challenges and Considerations</h3> <p>Several factors pose challenges to solar energy production in Haugesund:</p> <ol> <li>Limited winter sunlight: With its northern latitude, Haugesund experiences very short days during winter, severely limiting solar energy generation.</li> <li>Cloud cover: The coastal location often brings overcast conditions, reducing solar irradiance.</li> <li>Snow and ice: Winter precipitation can accumulate on panels, obstructing sunlight.</li> </ol> <h3>Mitigation Strategies</h3> <p>The large summer-to-winter difference makes seasonal demand important in system planning. Storage shifts generated electricity to later use, with conversion losses; a battery’s usable capacity and supported duration need their own calculation. The seasonal figures do not establish that storage or a wind–solar combination will cover winter demand.</p> <p>Cleaning should follow actual deposits and installer guidance. Snow cover blocks light, while structural wind and snow loads belong in the mounting design. Low-light product labels or snow guards are not a substitute for assessing those conditions.</p> <p>While Haugesund's location is far from ideal for year-round solar energy production, careful planning and appropriate technology can still make solar PV a viable part of the local energy mix, particularly during the extended daylight hours of spring and summer.</p>

Topography around Haugesund

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

<p>The topography around Haugesund, Norway, is characterized by a mix of coastal and inland features typical of western Norway. Haugesund itself is situated on a relatively flat peninsula on the North Sea coast, surrounded by fjords and islands. The immediate coastal area is generally low-lying, with some gentle hills and rocky outcrops.</p>

Read the full topography description

<p>North and east of Haugesund’s centre, the Byheiene form a varied, partly hilly landscape of rock knolls, lakes, small ponds, bogs, grass and heath. The boundary between city and heath gives a distinctive contrast between developed ground, upland and sea.</p> <p>The coastal lowlands, islands and Byheiene offer different horizons and land uses. Inland rock knolls and nearby woodland can screen the sun even where a site looks open. Bogs, lakes and heath also have landscape and ecological roles that matter to ground-mounted proposals.</p> <p>Existing roofs and any proposed field or cleared site need to be considered individually for slope, access, water conditions and connection requirements. A general preference for coastal plains or south-facing island land does not identify an available solar site.</p> <p>However, it's important to note that Haugesund's high latitude means it receives less sunlight than more southern locations, especially during the winter months. This factor, combined with the often cloudy weather in western Norway, may limit the overall efficiency and viability of large-scale solar PV projects in this region. Any potential solar installations would need to be carefully planned and engineered to maximize their effectiveness in these challenging conditions.</p>

Technical location reference

Approximate map point used for Haugesund, Norway

This coordinate is the calculation reference for Haugesund, Norway. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
59.411600000000000000, 5.267700000000000000
Originally displayed coordinate
lat59.4116 / long5.2677

How the estimate works

How this Haugesund estimate was calculated

Here is how I calculated the location estimate for Haugesund, Norway.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Haugesund Location estimate includes and leaves out

Use the Haugesund figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
