Ngerulmud, Melekeok, Palau represents a reasonably good location for year-round solar energy generation, with the tropical climate providing consistent sunlight throughout most of the year. Located at coordinates 7.4968°N, 134.6232°E, this Pacific island nation enjoys relatively stable solar production across all seasons.

Seasonal Solar Performance

The solar energy output at Ngerulmud shows good consistency throughout the year, with spring delivering the highest production at 5.80 kWh per day per kW of installed solar capacity. Summer and autumn perform similarly well at 5.67 kWh/day and 5.63 kWh/day respectively, while winter shows the lowest but still respectable output of 5.04 kWh/day per kW installed. Spring emerges as the ideal season for solar generation, followed closely by summer and autumn. Even during the winter months, the location maintains over 5 kWh/day per kW, demonstrating the advantages of Palau's tropical positioning where seasonal variations in solar intensity are relatively modest. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 7 degrees facing south. This angle maximizes total annual energy production by accounting for the sun's path throughout the year and the location's proximity to the equator.

Environmental Challenges and Solutions

Several significant environmental factors could impact solar energy production in Ngerulmud, Melekeok, requiring careful consideration during installation planning. The tropical marine climate brings high humidity levels year-round, which can reduce solar panel efficiency and accelerate corrosion of electrical components. Salt air from the surrounding ocean poses additional corrosion risks to metal mounting systems and electrical connections. To combat these issues, installers should use marine-grade aluminum or stainless steel mounting systems with protective coatings, and ensure all electrical components have appropriate IP ratings for humid, salt-air environments. Palau's wet season brings intense tropical rainfall and potential for severe weather events including typhoons. Heavy rain can temporarily reduce solar output, while strong winds and flying debris during storms pose physical risks to panel installations. Proper drainage systems around ground-mounted installations and robust mounting systems designed to withstand high wind loads are essential preventative measures. The island environment presents unique maintenance challenges that can significantly impact long-term performance:

• Frequent cleaning schedules to remove salt deposits and tropical vegetation debris
• Regular inspection of seals and electrical connections due to accelerated wear from humidity
• Vegetation management to prevent shading from fast-growing tropical plants
• Pest control measures to prevent nesting birds or insects from affecting system performance

Installation Recommendations

To maximize energy production and system longevity in Ngerulmud's challenging environment, several specific installation practices should be followed. Elevated mounting systems improve air circulation around panels, helping to reduce operating temperatures and improve efficiency in the tropical heat. Adequate spacing between panel rows prevents shading while allowing for proper airflow and maintenance access. Selecting panels and inverters specifically rated for high-temperature, high-humidity operation ensures better performance and longer equipment life. Anti-reflective coatings and self-cleaning panel surfaces can help maintain efficiency despite the challenging environmental conditions. Regular professional maintenance becomes even more critical in this tropical island setting, with quarterly inspections recommended rather than the typical annual schedule used in temperate climates. This proactive approach helps identify and address environmental damage before it significantly impacts energy production.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 2 locations across Palau. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Palau by location

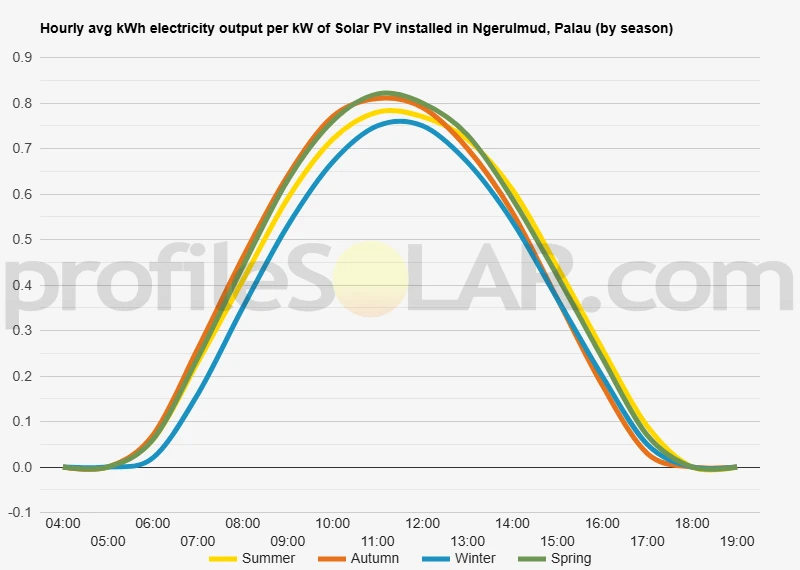

Solar output per kW of installed solar PV by season in Ngerulmud

Seasonal solar PV output for Latitude: 7.4968, Longitude: 134.6232 (Ngerulmud, Palau), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° South in Ngerulmud, Palau

To maximize your solar PV system's energy output in Ngerulmud, Palau (Lat/Long 7.4968, 134.6232) throughout the year, you should tilt your panels at an angle of 7° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ngerulmud, Palau

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ngerulmud, Palau. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	14° South in Autumn	23° South in Winter	1° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ngerulmud, Palau

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ngerulmud, Palau.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ngerulmud, Palau

Topographical Features of Ngerulmud

Ngerulmud, the capital of Palau, sits on the main island of Babeldaob in a landscape characterized by gently rolling hills and coastal lowlands. The terrain around the capital is relatively modest in elevation, with the surrounding area featuring undulating topography that rises gradually from sea level to low hills reaching several hundred feet in height. The region is dominated by tropical vegetation, including dense forests and grasslands that have developed over the limestone and volcanic bedrock typical of this Pacific island nation. The immediate vicinity of Ngerulmud consists of cleared areas and developed zones interspersed with patches of secondary forest growth. The topography is generally well-drained, with numerous small streams and waterways flowing toward the coast. The landscape shows evidence of both natural erosion patterns and human modification, particularly where infrastructure development has occurred to support the capital city and its surrounding communities.

Coastal Plains and Interior Valleys

Moving outward from Ngerulmud, the topography transitions between coastal plains and interior valley systems. The coastal areas feature relatively flat terrain that extends inland for varying distances before meeting the rising hills of the interior. These plains are intersected by tidal creeks and mangrove systems that create a complex network of waterways and wetlands along much of the shoreline. The interior valleys between the low hills provide natural corridors that have been utilized for transportation routes and settlement patterns. These valley floors are generally well-suited to development due to their relatively flat profiles and good drainage characteristics. The surrounding hillsides display typical tropical erosion patterns, with steep-sided gullies carved by seasonal rainfall runoff.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Ngerulmud would be the cleared and semi-cleared areas on the gently sloping hillsides and the flatter portions of the coastal plains. The low hills immediately east and southeast of the capital offer particular advantages, as they provide elevated sites with good exposure while maintaining relatively gentle gradients suitable for solar array installation. The coastal plains to the west and northwest of Ngerulmud also present excellent opportunities for solar development. These areas combine flat topography with minimal shading from surrounding vegetation or terrain features. The cleared grasslands and former agricultural areas in these zones would require minimal site preparation while providing ample space for large solar installations. Areas to avoid for solar development include the steeper hillsides where erosion control would be challenging, the wetland zones near tidal areas where foundations would be problematic, and the remaining forested areas where environmental impacts would be significant. The optimal sites would be those cleared areas with southern exposure on gentle slopes or flat terrain, positioned away from major waterways and existing infrastructure corridors.
