Caraguatay, Cordillera Department, Paraguay presents a moderately favorable location for year-round solar PV energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location varies considerably throughout the year. Summer delivers the strongest performance at 7.50kWh per day per kW of installed capacity, making it the optimal season for solar generation. Spring follows as the second-best period with 6.07kWh/day per kW, while autumn drops to 5.26kWh/day per kW. Winter presents the most challenging conditions, producing only 3.85kWh/day per kW of installed solar capacity. This seasonal pattern means solar installations will generate nearly twice as much electricity during peak summer months compared to winter, which is typical for locations in the Southern Hemisphere but represents a substantial variation that affects energy planning and system sizing.

Optimal Panel Configuration

For fixed panel installations at Caraguatay, Cordillera Department, the ideal tilt angle to maximize total year-round solar production is 22 degrees facing North. This angle has been calculated to optimize performance across all seasons by accounting for the sun's changing position throughout the year and weighting the angles based on solar irradiance data.

Environmental and Weather Factors

Several environmental factors in Paraguay's subtropical climate could potentially impact solar energy production:

• High humidity and frequent rainfall: Paraguay experiences significant precipitation, particularly during summer months, which can reduce solar irradiance and create cloudy conditions that diminish panel efficiency
• Dust and debris accumulation: The subtropical environment can lead to faster accumulation of organic matter, dust, and pollen on solar panels
• Extreme temperature variations: Hot summers can reduce panel efficiency, while the significant seasonal temperature swings may affect equipment longevity

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation strategies should be considered: Regular cleaning schedules become essential in this climate, with panels requiring more frequent maintenance during rainy seasons when organic debris accumulates rapidly. Installing panels with adequate spacing and ventilation helps manage heat buildup during intense summer periods. Choosing high-quality mounting systems resistant to humidity and temperature fluctuations will ensure long-term stability. Additionally, selecting solar panels with good low-light performance can help maintain output during Paraguay's cloudier periods. Proper drainage around installations prevents water pooling that could damage equipment, while using anti-reflective coatings designed for high-humidity environments can help maintain panel efficiency over time.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 55 locations across Paraguay. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Paraguay by location

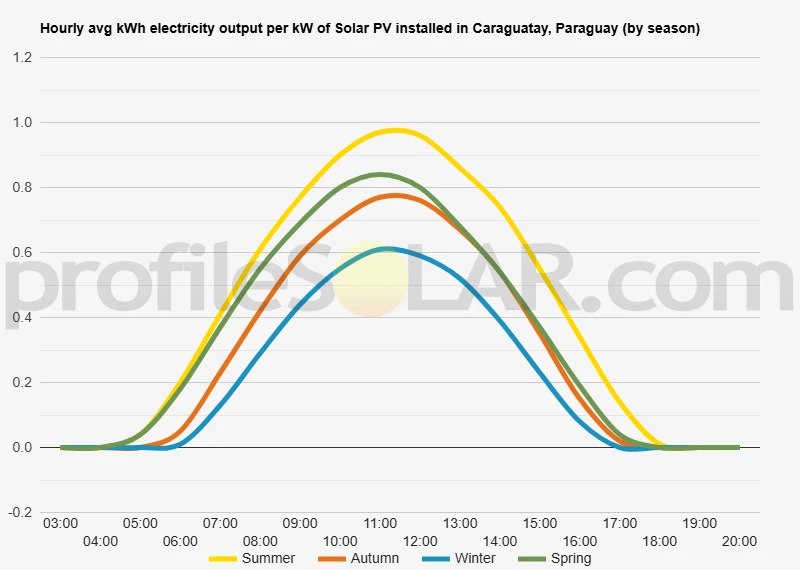

Solar output per kW of installed solar PV by season in Caraguatay

Seasonal solar PV output for Latitude: -25.2333, Longitude: -56.8167 (Caraguatay, Paraguay), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Caraguatay, Paraguay

To maximize your solar PV system's energy output in Caraguatay, Paraguay (Lat/Long -25.2333, -56.8167) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Caraguatay, Paraguay

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Caraguatay, Paraguay. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	30° North in Autumn	40° North in Winter	18° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Caraguatay, Paraguay

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Caraguatay, Paraguay.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Caraguatay, Paraguay

Topographical Features Around Caraguatay

The landscape surrounding Caraguatay in Paraguay is characterized by gently rolling terrain typical of the eastern region of the country. This area sits within the Atlantic Forest ecoregion, where the topography consists primarily of low hills and broad valleys that rarely exceed significant elevation changes. The terrain gradually slopes from east to west, forming part of the larger geological transition zone between the Brazilian Highlands and the Paraguay River basin. The region features a mix of natural grasslands and forested areas, with numerous small streams and seasonal waterways cutting through the landscape. These watercourses have created shallow valleys and gentle ridgelines over thousands of years, resulting in a relatively stable geological foundation. The soil composition includes red lateritic soils common to this part of South America, which provide good drainage characteristics.

Elevation and Slope Characteristics

The elevation around Caraguatay typically ranges from 200 to 400 meters above sea level, with most of the surrounding area falling within this moderate range. The slopes are generally quite manageable, rarely exceeding gradients that would pose significant challenges for large-scale development projects. This gentle topography means that extensive earthwork or terracing would not be necessary for most construction activities in the region. The area lacks dramatic elevation changes such as steep mountains, deep canyons, or significant escarpments. Instead, the landscape presents as a series of undulating hills separated by shallow depressions and valleys. This consistent pattern extends for many kilometers in all directions from Caraguatay, creating opportunities for development across substantial areas.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be found on the broader hilltops and gentle south-facing slopes that characterize the region. These elevated areas typically offer the best combination of stable ground conditions and minimal shading from surrounding terrain features. The hilltops also tend to have better drainage characteristics, which helps prevent waterlogging during Paraguay's rainy season. Areas to the south and southwest of Caraguatay appear particularly promising due to their combination of gentle topography and relatively open terrain. These zones feature fewer established settlements and agricultural operations, potentially making land acquisition more straightforward. The rolling nature of the landscape means that large solar arrays could be positioned to follow the natural contours of the land, minimizing the need for extensive grading or site preparation. The flatter areas within the broader valleys could also accommodate solar installations, though careful attention would need to be paid to drainage patterns and seasonal flooding potential. These lower-lying areas might require additional site preparation but could offer advantages in terms of easier access for construction equipment and maintenance vehicles. Areas with existing cleared land or pasture would be preferable to heavily forested zones, as this would reduce environmental impact and development costs. The region's network of rural roads and proximity to existing electrical infrastructure would also be important factors in determining the most practical locations for large-scale solar development.
