Pedro Juan Caballero, Amambay Department, Paraguay presents a moderately favorable location for year-round solar PV energy generation, though with some seasonal limitations that potential solar installers should consider.

Solar Production Performance

The solar energy output at this tropical location shows significant seasonal variation. Summer delivers the strongest performance at 7.10 kWh per day per kW of installed solar capacity, making it the ideal time for solar generation. Spring follows as the second-best season with 6.16 kWh per day per kW, while autumn drops to 5.41 kWh per day per kW. Winter presents the most challenging period, producing only 4.18 kWh per day per kW of installed capacity. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 20 degrees facing north. This angle maximizes total annual solar production by accounting for the sun's path throughout the year and the location's specific latitude.

Local Factors Affecting Solar Production

Several environmental and weather factors in Pedro Juan Caballero can significantly impact solar energy generation:

• Seasonal rainfall patterns: The tropical climate brings distinct wet and dry seasons, with heavy rains during certain months that can reduce solar irradiance and create cloud cover
• High humidity levels: Tropical humidity can lead to moisture buildup on solar panels, reducing their efficiency
• Dust and debris accumulation: The dry season can bring dust storms and airborne particles that coat solar panels
• Extreme weather events: Tropical storms and heavy rainfall can damage equipment if not properly protected

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented:

• Regular cleaning schedule: Establish monthly panel cleaning during dry seasons and bi-weekly cleaning during dusty periods
• Proper drainage systems: Install adequate drainage around solar installations to prevent water damage during heavy rains
• Elevated mounting: Mount panels with sufficient clearance above roof surfaces to promote air circulation and reduce moisture retention
• Weather-resistant equipment: Use corrosion-resistant mounting hardware and weatherproof electrical components designed for tropical climates
• Monitoring systems: Install performance monitoring to quickly identify when panels need cleaning or maintenance

Despite the seasonal variations and tropical climate challenges, Pedro Juan Caballero can still provide reasonable solar energy production throughout the year with proper installation techniques and maintenance practices.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 55 locations across Paraguay. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Paraguay by location

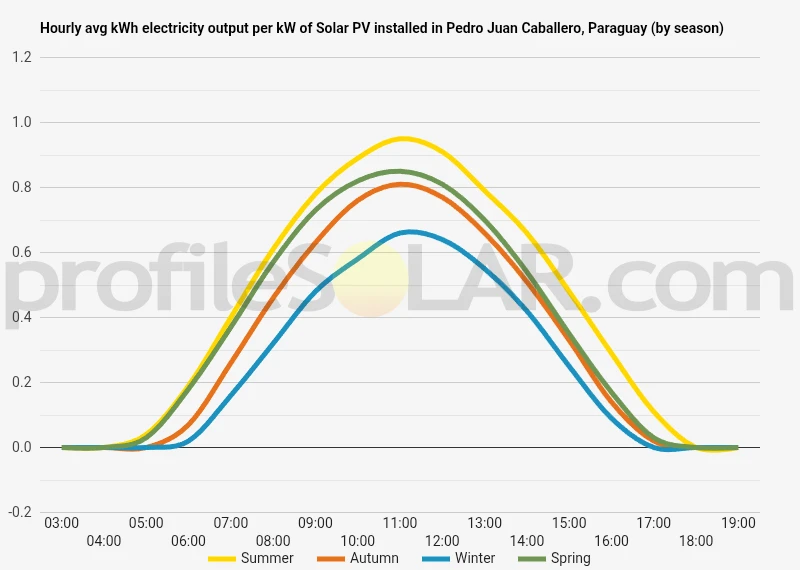

Solar output per kW of installed solar PV by season in Pedro Juan Caballero

Seasonal solar PV output for Latitude: -22.5476, Longitude: -55.7372 (Pedro Juan Caballero, Paraguay), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Pedro Juan Caballero, Paraguay

To maximize your solar PV system's energy output in Pedro Juan Caballero, Paraguay (Lat/Long -22.5476, -55.7372) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pedro Juan Caballero, Paraguay

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pedro Juan Caballero, Paraguay. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pedro Juan Caballero, Paraguay

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pedro Juan Caballero, Paraguay.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pedro Juan Caballero, Paraguay

Topography and Landscape Features

Pedro Juan Caballero sits in the northeastern region of Paraguay, positioned along the border with Brazil in what is known as the Amambay department. The city is located on a relatively elevated plateau that forms part of the broader Amambay mountain range, with the surrounding terrain characterized by gentle rolling hills and undulating plains. This elevated position provides the area with good natural drainage and creates a landscape that transitions between the lower wetlands to the south and the higher Brazilian highlands to the north. The immediate vicinity around Pedro Juan Caballero features a mix of grasslands, scattered forest patches, and agricultural areas. The terrain is generally well-drained with moderate slopes, making it distinct from the flatter, more flood-prone regions found in other parts of Paraguay. The elevation changes are gradual rather than steep, creating a landscape of gentle ridges and shallow valleys that extend in multiple directions from the city center.

Regional Terrain Characteristics

Moving outward from Pedro Juan Caballero, the topography becomes increasingly varied. To the east and northeast, the land rises toward the Brazilian border, where the terrain becomes more pronounced with deeper valleys and higher ridges. The western and southwestern areas tend to be flatter and more open, transitioning into the vast plains that characterize much of Paraguay's interior. The soil composition in this region is generally well-suited to agriculture, consisting primarily of red clay soils typical of the subtropical highland areas. These soils provide good stability and drainage, which has made the region attractive for both farming and development. The natural vegetation consists of a mixture of grasslands and gallery forests along waterways, with some areas of secondary forest growth where land has been allowed to return to its natural state.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Pedro Juan Caballero would be found in the flatter agricultural areas to the west and southwest of the city. These zones offer several advantages including relatively level terrain that minimizes grading requirements, good access to existing transportation infrastructure, and proximity to electrical grid connections that serve the urban area and surrounding communities. The elevated plateau areas directly south and southeast of the city also present excellent opportunities for solar development. These locations benefit from the natural elevation which provides good air circulation and drainage, while still maintaining relatively gentle slopes that are manageable for large-scale installations. The terrain in these areas is stable and well-drained, reducing concerns about flooding or ground instability that could affect solar panel arrays. Areas closer to the Brazilian border, while potentially attractive due to their elevation, tend to have more challenging topography with steeper slopes and more irregular terrain. These locations would likely require more extensive site preparation and could face additional regulatory complexities due to their proximity to the international border. The western approaches to the city, where the landscape opens into broader plains, offer perhaps the greatest potential for very large solar installations. These areas combine favorable topography with good accessibility and the space needed for utility-scale projects. The transition zone between the Amambay highlands and the Paraguay River basin provides stable ground conditions while maintaining the elevated position that characterizes this region of the country.
