Arroyo, Puerto Rico, situated at 17.9666° N, 66.0655° W, presents a favorable location for solar energy generation throughout the year. This tropical setting benefits from consistent sunlight, with seasons primarily characterized by wet and dry periods rather than significant temperature variations.

Seasonal Solar Performance

Solar panel performance in Arroyo demonstrates strong year-round potential. Spring yields the highest energy output at 7.29 kWh per day for each kilowatt of installed capacity. Summer follows closely with 6.83 kWh/day, while autumn and winter show slightly reduced but still substantial production at 6.11 kWh/day and 5.64 kWh/day, respectively.

Optimal Installation Angle

For fixed panel installations in Arroyo, the ideal tilt angle to maximize year-round solar production is 16 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the location's latitude and the Earth's elliptical orbit.

Peak Generation Periods

The most productive period for solar energy generation in Arroyo spans from late winter through spring and into early summer. During these months, the combination of clearer skies, lower humidity, and optimal sun angles contributes to peak solar panel efficiency.

Environmental Considerations

While Arroyo's tropical climate is generally conducive to solar energy production, there are some environmental factors to consider: 1. Hurricane season: From June to November, the risk of tropical storms and hurricanes increases. Strong winds and heavy rainfall can potentially damage solar installations. 2. High humidity: The tropical climate's humidity can lead to increased dust accumulation on panels, potentially reducing efficiency over time. To mitigate these risks, several preventative measures can be implemented:

• Use hurricane-resistant mounting systems and high-quality, durable panels designed to withstand extreme weather conditions.
• Install panels at a slightly steeper angle than the optimal 16 degrees to promote natural cleaning by rainfall and reduce dust accumulation.
• Implement a regular cleaning and maintenance schedule to ensure optimal panel performance.
• Consider micro-inverter systems, which can help maintain overall system performance even if individual panels are affected by shading or damage.

By addressing these factors during installation and maintenance, solar energy systems in Arroyo can maximize their potential and provide reliable, sustainable power throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 42 locations across Puerto Rico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Puerto Rico by location

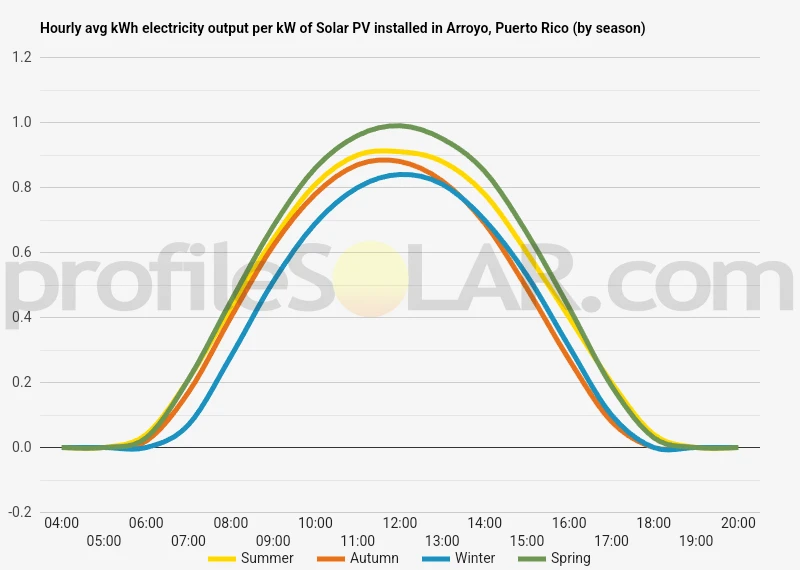

Solar output per kW of installed solar PV by season in Arroyo

Seasonal solar PV output for Latitude: 17.9666, Longitude: -66.0655 (Arroyo, Puerto Rico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 16° South in Arroyo, Puerto Rico

To maximize your solar PV system's energy output in Arroyo, Puerto Rico (Lat/Long 17.9666, -66.0655) throughout the year, you should tilt your panels at an angle of 16° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Arroyo, Puerto Rico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Arroyo, Puerto Rico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 16° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° South in Summer	23° South in Autumn	33° South in Winter	11° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Arroyo, Puerto Rico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Arroyo, Puerto Rico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Arroyo, Puerto Rico

The topography around Arroyo, Puerto Rico, is quite diverse and interesting. This coastal town is situated in the southeastern part of the island, where the landscape transitions from flat coastal plains to rolling hills and eventually to more mountainous terrain as you move inland.

Near the coast, where Arroyo is located, the land is generally flat to gently sloping. This area is characterized by sandy beaches, mangrove swamps, and low-lying coastal plains. As you move slightly inland, the terrain begins to undulate with small hills and shallow valleys. These areas are often used for agriculture, particularly sugar cane cultivation.

Further inland, to the north and northwest of Arroyo, the landscape becomes more rugged and elevated. This region marks the beginning of the Cordillera Central, the main mountain range that runs through the center of Puerto Rico. Here, you'll find steeper hills, deeper valleys, and more dramatic changes in elevation.

For large-scale solar PV installations, the areas best suited would likely be the gently sloping terrain just inland from the coast. These locations offer several advantages:

1. They are relatively flat, which makes construction and maintenance easier.
2. They receive ample sunlight due to their southern exposure and lack of tall obstacles.
3. They are close enough to populated areas for easy grid connection but not so close as to compete with urban development.
4. They are often former agricultural lands that may be available for repurposing.

Specific areas that might be suitable include the slightly elevated lands to the north and northeast of Arroyo town, as well as the gently rolling terrain between Arroyo and the neighboring municipalities of Patillas to the east and Guayama to the west. These areas provide a good balance of favorable topography, solar exposure, and proximity to existing infrastructure.

However, it's important to note that any large-scale solar development would need to consider other factors beyond topography, such as environmental impact, land ownership, grid capacity, and local regulations. Additionally, Puerto Rico's vulnerability to hurricanes means that solar installations would need to be designed with resilience in mind.

Puerto Rico solar PV Stats as a country

Puerto Rico ranks 48th in the world for cumulative solar PV capacity, with 491 total MW's of solar PV installed. Each year Puerto Rico is generating 154 Watts from solar PV per capita (Puerto Rico ranks 33rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Puerto Rico?

Yes, there are several incentives for businesses wanting to install solar energy in Puerto Rico. The Puerto Rico Energy Commission (PREC) offers a net metering program that allows businesses to receive credits on their electricity bills for the excess energy they generate from their solar systems. Additionally, businesses may be eligible for federal tax credits and accelerated depreciation benefits. The PREC also provides grants and loans to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Puerto Rico? Please reach out to us and help us keep this information current. Thanks!
