Solar PV Analysis of Caguas, Puerto Rico
Caguas, Puerto Rico is a good location for generating solar energy throughout the year because it's located in the Tropics where sunlight is fairly consistent. The amount of electricity that can be produced from each kilowatt of installed solar panels varies slightly by season. In summer and spring, you can expect to generate around 6.5 to 6.8 kilowatt-hours per day, while in autumn and winter, this decreases slightly to between 5.3 and 5.7 kilowatt-hours per day.
To maximize your solar power production for the entire year at this location, you should tilt your panels at an angle of 17 degrees towards the south if they're fixed installations.
However, there are some factors that could potentially hinder solar production in Caguas which need to be taken into account when installing a system:
1) Weather: While Puerto Rico generally has plenty of sunshine due to its tropical climate, it also experiences periods of heavy rain especially during hurricane season (June through November). This could reduce the amount of sunlight reaching your panels and thereby decrease their output.
Preventive Measure: Make sure your system includes a good energy storage solution like batteries so you can store excess power on sunny days for use when weather conditions aren't as favorable.
2) Dust & Debris: Wind can carry dust or other debris onto your panels which may block sunlight and reduce efficiency.
Preventive Measure: Regular cleaning of the panel surfaces will help maintain their performance level over time.
3) Shade: Buildings or vegetation nearby might cast shadows on your panels during certain times of day or year reducing their productivity.
Preventive Measure: Consider potential shading issues carefully when choosing where to install your panels; ideally they should have clear access to sun all day long throughout all seasons.
By taking these factors into consideration with proper planning and maintenance measures implemented accordingly, Caguas would still offer an excellent environment for solar energy production year-round.
Note: The Tropics are located between 23.5° North and -23.5° South of the equator.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 42 locations across Puerto Rico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Puerto Rico by location

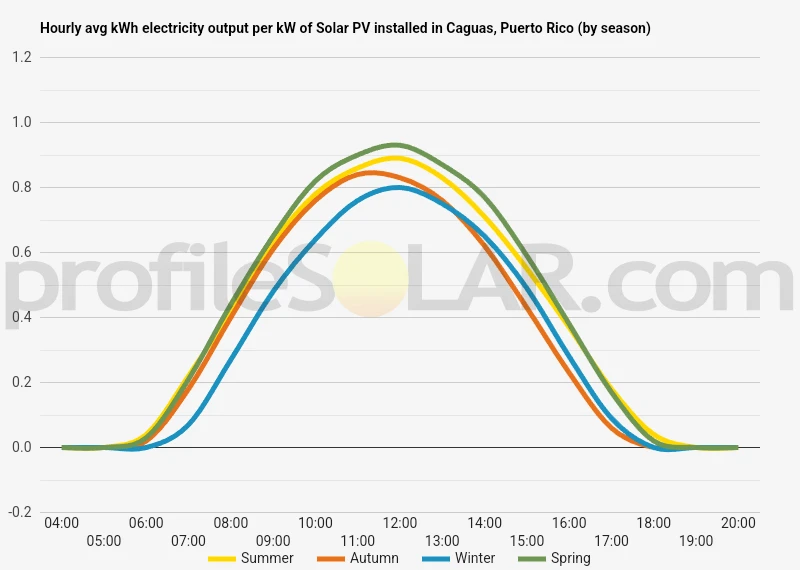

Solar output per kW of installed solar PV by season in Caguas
Seasonal solar PV output for Latitude: 18.2317, Longitude: -66.047 (Caguas, Puerto Rico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 17° South in Caguas, Puerto Rico
To maximize your solar PV system's energy output in Caguas, Puerto Rico (Lat/Long 18.2317, -66.047) throughout the year, you should tilt your panels at an angle of 17° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Caguas, Puerto Rico
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Caguas, Puerto Rico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 17° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 2° South in Summer | 24° South in Autumn | 34° South in Winter | 12° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Caguas, Puerto Rico
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Caguas, Puerto Rico.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Caguas, Puerto Rico
Caguas, Puerto Rico is located in the central-eastern part of the island. The topography of this region is characterized by a mix of mountains and valleys, with some flat plains as well. The highest peak in Caguas is Cerro Las Pinas at 1082 feet.
When considering the suitability for large-scale solar PV installations, it would be ideal to look for areas that have relatively flat terrain and receive high amounts of sunlight throughout the year. Given these criteria, the valley regions around Caguas could potentially be suitable locations for solar farms.
However, it's important to note that other factors such as land use restrictions, proximity to power grids or substations (for electricity transmission), and environmental considerations also play a significant role in determining whether an area is suitable for large-scale solar installations.
Therefore, while certain geographic features may suggest potential suitability for solar PV installation from a purely physical perspective (like availability of sunlight and flatness of terrain), actual feasibility would require more detailed studies including socio-economic aspects like land ownership rights and cost-benefit analysis taking into account installation costs versus expected energy generation over time.
Also remember that Puerto Rico lies within a hurricane-prone zone which might impact infrastructure durability requirements or insurance costs related to potential weather-related damage risks.
Puerto Rico solar PV Stats as a country
Puerto Rico ranks 48th in the world for cumulative solar PV capacity, with 491 total MW's of solar PV installed. Each year Puerto Rico is generating 154 Watts from solar PV per capita (Puerto Rico ranks 33rd in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Puerto Rico?
Yes, there are several incentives for businesses wanting to install solar energy in Puerto Rico. The Puerto Rico Energy Commission (PREC) offers a net metering program that allows businesses to receive credits on their electricity bills for the excess energy they generate from their solar systems. Additionally, businesses may be eligible for federal tax credits and accelerated depreciation benefits. The PREC also provides grants and loans to help offset the cost of installing solar systems.
Do you have more up to date information than this on incentives towards solar PV projects in Puerto Rico? Please reach out to us and help us keep this information current. Thanks!
