Solar Energy Potential in Hatillo, Puerto Rico

Hatillo, Puerto Rico, located in the tropical region at coordinates 18.4891, -66.8278, offers a promising location for solar photovoltaic (PV) energy generation throughout the year. The tropical climate provides consistent sunlight, with seasons primarily distinguished by wet and dry periods rather than significant temperature variations. The energy generation potential shows strong performance across all seasons. Spring delivers the highest output at 6.80 kWh per day for each kilowatt of installed solar capacity. Summer follows closely with 6.56 kWh/day, while autumn and winter show somewhat reduced but still substantial generation at 5.72 kWh/day and 5.23 kWh/day respectively. This seasonal pattern indicates that Hatillo experiences its peak solar generation potential during spring months, followed by summer. The slightly lower production in autumn and winter still represents good generation capacity compared to many non-tropical locations. This year-round productivity makes Hatillo an excellent candidate for solar PV installations.

Optimal Panel Installation

For fixed solar panel installations in Hatillo, the ideal tilt angle to maximize year-round energy production is 17 degrees facing South. This specific angle has been calculated by analyzing the daily solar elevation at this latitude, accounting for the Earth's elliptical orbit, and weighting these factors against NASA solar irradiance data to determine the most productive fixed position.

Environmental and Weather Considerations

Several significant environmental factors could impact solar production in Hatillo:

• Hurricane exposure: Puerto Rico's location in the Caribbean hurricane belt means solar installations face potential damage from extreme winds and flying debris during hurricane season (June through November).
• High humidity and salt exposure: Proximity to the ocean creates a corrosive environment that can degrade solar equipment more rapidly than in drier locations.
• Heavy rainfall: The wet season can bring extended periods of cloud cover, temporarily reducing solar output.

Preventative Measures

To maximize energy production despite these challenges, several installation considerations are recommended: Solar panels should be mounted on hurricane-rated racking systems designed to withstand high winds. Using marine-grade components and corrosion-resistant materials will extend system lifespan in the salt-rich coastal environment. Regular cleaning schedules are important to remove salt deposits that can reduce panel efficiency. Additionally, incorporating microinverters or power optimizers rather than string inverters can minimize production losses during partial shading from passing clouds. Finally, slightly oversizing the system can help compensate for the reduced production during the cloudier wet season months. With these preventative measures in place, Hatillo's consistent year-round sunlight makes it a very favorable location for solar PV energy generation, with only modest seasonal variations in expected output.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 42 locations across Puerto Rico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Puerto Rico by location

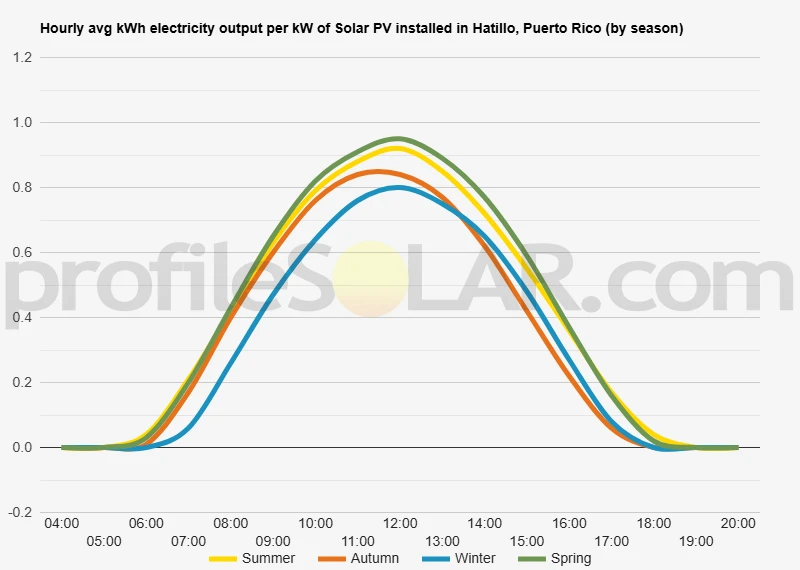

Solar output per kW of installed solar PV by season in Hatillo

Seasonal solar PV output for Latitude: 18.4891, Longitude: -66.8278 (Hatillo, Puerto Rico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 17° South in Hatillo, Puerto Rico

To maximize your solar PV system's energy output in Hatillo, Puerto Rico (Lat/Long 18.4891, -66.8278) throughout the year, you should tilt your panels at an angle of 17° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Hatillo, Puerto Rico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Hatillo, Puerto Rico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 17° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° South in Summer	24° South in Autumn	34° South in Winter	12° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Hatillo, Puerto Rico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Hatillo, Puerto Rico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Hatillo, Puerto Rico

The topography around Hatillo, Puerto Rico, is characterized by a mix of coastal plains and rolling hills that gradually rise into the island's central mountain range. Situated on the northern coast of Puerto Rico, Hatillo features a relatively flat coastal area that transitions to increasingly undulating terrain as one moves inland toward the south. Near the coastline, the elevation is close to sea level, with sandy beaches and some wetland areas. Moving slightly inland, the landscape begins to show gentle hills with elevations ranging from 50 to 200 meters. These hills become progressively more pronounced as they extend southward toward the Cordillera Central, Puerto Rico's main mountain range.

Coastal Plains

The northern section of Hatillo consists primarily of coastal plains with minimal elevation changes. This area has been shaped by both natural processes and human development, including agricultural activities that have historically been important to the region's economy. The flat to gently sloping terrain near the coast offers large, uninterrupted spaces that could potentially accommodate solar installations.

Karst Country

A distinctive topographical feature of this region is the karst landscape, characterized by limestone formations that create a unique terrain of sinkholes, caves, and haystack-shaped hills known locally as "mogotes." This karst topography is particularly prevalent in the areas west and southwest of Hatillo, creating an irregular landscape with numerous small hills and depressions.

River Valleys

Several river valleys cut through the region, including that of the Río Camuy, which has carved significant features into the landscape over time. These valleys typically have flatter bottoms surrounded by steeper slopes, creating natural divisions in the topography.

Areas Suited for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Hatillo would be: The inland plains and plateaus south of the immediate coastal zone offer substantial flat or gently sloping land that would minimize grading requirements for solar installations. These areas, particularly between Hatillo and Arecibo, provide relatively large contiguous spaces that could accommodate utility-scale solar farms. Former agricultural lands that have been previously cleared represent opportune sites for solar development. Many of these areas have good road access and are already somewhat altered from their natural state, potentially reducing environmental concerns associated with new development. The slightly elevated plateaus (between 100-200 meters above sea level) found in the southern portions of Hatillo municipality provide good solar exposure while typically being above flood-prone zones. These plateaus often have less valuable agricultural potential due to their distance from water sources, making them appropriate candidates for alternative land uses such as renewable energy production. Areas to avoid would include the steeper hillsides of the karst region, environmentally sensitive wetlands near the coast, and flood-prone river valleys. Additionally, the most productive agricultural lands should be preserved where possible, focusing solar development instead on marginal or abandoned agricultural areas. The road infrastructure in the region is relatively well-developed, with PR-2 (a major highway) running through the area, facilitating equipment transport and grid connection for potential solar installations. This existing infrastructure adds to the attractiveness of the flatter portions of Hatillo and surrounding municipalities for renewable energy development.

Puerto Rico solar PV Stats as a country

Puerto Rico ranks 48th in the world for cumulative solar PV capacity, with 491 total MW's of solar PV installed. Each year Puerto Rico is generating 154 Watts from solar PV per capita (Puerto Rico ranks 33rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Puerto Rico?

Yes, there are several incentives for businesses wanting to install solar energy in Puerto Rico. The Puerto Rico Energy Commission (PREC) offers a net metering program that allows businesses to receive credits on their electricity bills for the excess energy they generate from their solar systems. Additionally, businesses may be eligible for federal tax credits and accelerated depreciation benefits. The PREC also provides grants and loans to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Puerto Rico? Please reach out to us and help us keep this information current. Thanks!
