Solar PV Analysis of Barnaul, Russia
Barnaul, Altai Krai, Russia, situated at 53.3579°N, 83.7679°E, presents a mixed picture for solar energy generation throughout the year. Located in the Northern Temperate Zone, this city experiences significant seasonal variations in solar potential.
Seasonal Solar Performance
Summer stands out as the most productive season for solar energy in Barnaul, Altai Krai, with an impressive daily output of 6.21 kWh per kW of installed solar capacity. Spring follows closely, generating 5.25 kWh/day. However, the city faces challenges during autumn and winter, with outputs dropping to 2.17 kWh/day and 1.31 kWh/day, respectively.
The substantial difference between summer and winter production highlights the impact of Barnaul's northern latitude on solar potential. Long summer days contribute to high energy yields, while short winter days with low sun angles significantly reduce output.
Optimal Panel Installation
To maximize year-round solar production in Barnaul, Altai Krai, fixed solar panels should be installed at a 45-degree tilt angle facing south. This orientation helps capture more sunlight during the lower winter sun angles while still performing well in summer.
Environmental and Weather Factors
Several factors can impede solar production in Barnaul:
- Snow accumulation in winter can cover panels, reducing efficiency.
- Extremely cold temperatures may affect solar panel performance.
To mitigate these issues, consider installing panels at a steeper angle to encourage snow sliding off. Using high-quality, cold-resistant panels and ensuring proper insulation for electrical components can help maintain efficiency in cold conditions.
Despite challenges, Barnaul's location can still be viable for solar energy, especially when combined with energy storage solutions to balance seasonal variations. The extended daylight hours in summer provide an opportunity to generate surplus energy, which can partially offset the reduced winter production.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 35 locations across Russia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Russia by location

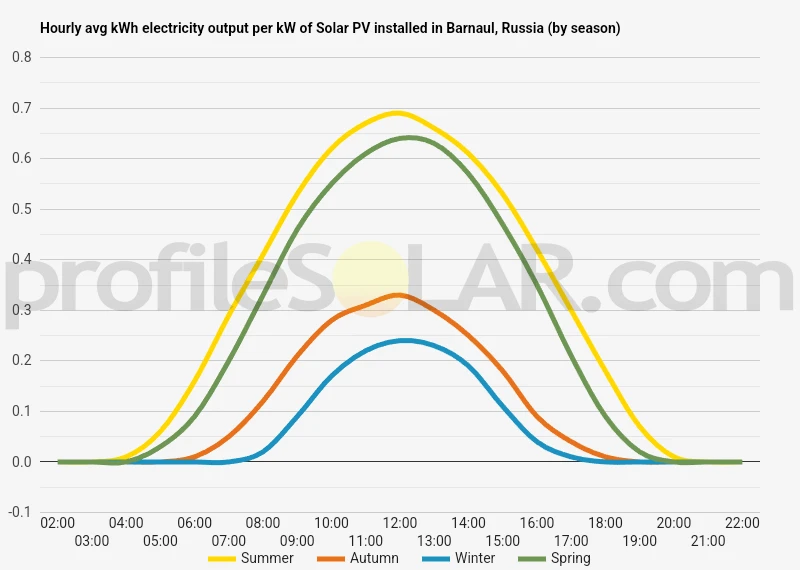

Solar output per kW of installed solar PV by season in Barnaul
Seasonal solar PV output for Latitude: 53.3579, Longitude: 83.7679 (Barnaul, Russia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 45° South in Barnaul, Russia
To maximize your solar PV system's energy output in Barnaul, Russia (Lat/Long 53.3579, 83.7679) throughout the year, you should tilt your panels at an angle of 45° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Barnaul, Russia
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Barnaul, Russia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 45° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 37° South in Summer | 56° South in Autumn | 67° South in Winter | 45° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Barnaul, Russia
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Barnaul, Russia.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Barnaul, Russia
The topography around Barnaul, Russia, is characterized by a mix of flat plains and gently rolling hills. Barnaul is situated in southwestern Siberia, in the Altai Krai region, along the banks of the Ob River. The city itself lies on relatively flat terrain, with an average elevation of about 180 meters (590 feet) above sea level.
To the west and northwest of Barnaul, the landscape is dominated by the vast West Siberian Plain, which is predominantly flat with occasional low hills and shallow depressions. This area is known for its expansive steppes, grasslands, and agricultural fields. As you move eastward from the city, the terrain gradually becomes more varied, with low hills and small valleys becoming more common.
To the south and southeast of Barnaul, the landscape transitions into the foothills of the Altai Mountains. While these mountains are still quite far from the city, their influence can be seen in the increasingly hilly terrain in this direction. The area between Barnaul and the mountains is characterized by a mix of forests, meadows, and agricultural land.
Regarding areas nearby that would be most suited for large-scale solar PV (photovoltaic) installations, the flat and open areas to the west and northwest of Barnaul present the most promising opportunities. These regions offer several advantages for solar energy production:
- Extensive flat terrain, which simplifies construction and minimizes shading issues
- Relatively low population density, allowing for large installations without significant land use conflicts
- Good solar radiation potential, particularly during the long summer days typical of this latitude
- Proximity to existing power infrastructure, as Barnaul is a major urban center
However, it's important to note that while the topography is favorable, the climate in this region can be challenging for solar energy production. Barnaul experiences long, cold winters with significant snow cover, which can reduce the efficiency of solar panels. Additionally, the relatively high latitude means shorter days during winter months, further impacting solar energy generation. Despite these challenges, advances in solar technology and careful site selection could still make large-scale solar PV installations viable in the region, particularly if combined with other renewable energy sources.
Russia solar PV Stats as a country
Russia ranks 35th in the world for cumulative solar PV capacity, with 1,661 total MW's of solar PV installed. Each year Russia is generating 11 Watts from solar PV per capita (Russia ranks 72nd in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Russia?
Yes, there are incentives for businesses wanting to install solar energy in Russia. The Russian government has implemented a number of policies and programs to encourage the development of renewable energy sources, including solar energy. These include tax breaks, subsidies, grants, and other financial incentives. Additionally, the government has established a feed-in tariff system that guarantees long-term contracts with fixed prices for electricity generated from renewable sources such as solar power.
Do you have more up to date information than this on incentives towards solar PV projects in Russia? Please reach out to us and help us keep this information current. Thanks!
