Belovo, Kemerovo Oblast, Russia, located at 54.3613°N, 86.1831°E, presents a challenging environment for year-round solar energy generation via photovoltaic (PV) systems. This location in the Northern Temperate Zone experiences significant seasonal variations in solar energy production, which greatly impacts the overall efficiency of solar installations.

Seasonal Solar Energy Production

The solar energy output at Belovo varies dramatically across the four meteorological seasons:

• Summer: 6.07 kWh/day per kW installed
• Spring: 4.57 kWh/day per kW installed
• Autumn: 1.93 kWh/day per kW installed
• Winter: 1.09 kWh/day per kW installed

This data clearly shows that summer and spring are the most productive seasons for solar energy generation in Belovo, Kemerovo Oblast, while autumn and winter see a significant drop in output.

Optimal Panel Tilt Angle

For fixed panel installations in Belovo, Kemerovo Oblast, the ideal tilt angle to maximize year-round solar production is 46 degrees facing South. This angle helps optimize energy capture throughout the year, considering the location's latitude and seasonal sun angles.

Challenges and Mitigation Strategies

Several environmental and weather factors can impede solar production in Belovo: 1. Long, harsh winters: The region experiences extended periods of cold weather with heavy snowfall, which can significantly reduce solar panel efficiency and even damage equipment. To mitigate this, installing panels at a steeper angle (like the recommended 46 degrees) can help snow slide off more easily. Additionally, using snow-resistant panels and implementing a regular snow removal plan can help maintain production during winter months. 2. Limited daylight hours in winter: Belovo's northern latitude means very short days during winter, severely limiting solar energy production. While this can't be entirely mitigated, using high-efficiency panels and incorporating energy storage systems can help balance out the seasonal variations in production. 3. Cloud cover: The region experiences significant cloud cover, particularly during autumn and winter. Choosing panels with good low-light performance and implementing microinverters or power optimizers can help maximize energy production even under cloudy conditions.

In conclusion, while Belovo's location presents challenges for year-round solar energy production, careful system design and the implementation of appropriate mitigation strategies can still make solar PV a viable option, particularly during the more productive summer and spring months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 35 locations across Russia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Russia by location

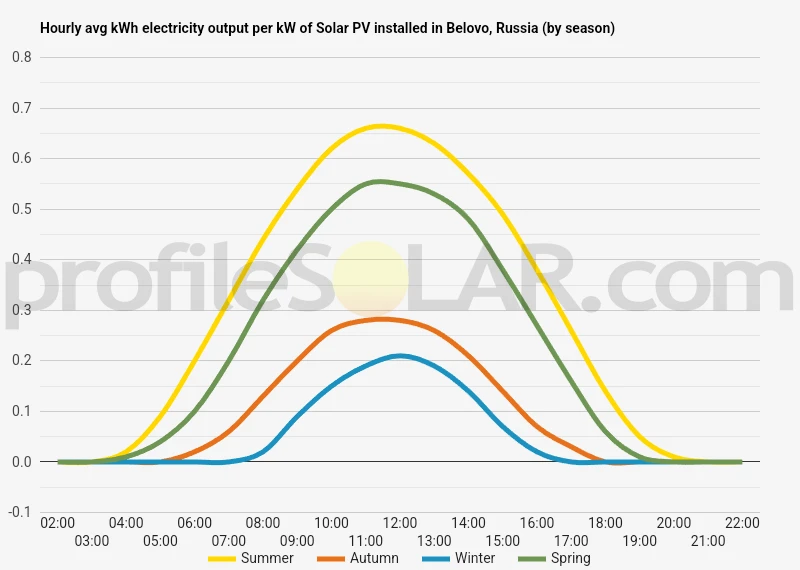

Solar output per kW of installed solar PV by season in Belovo

Seasonal solar PV output for Latitude: 54.3613, Longitude: 86.1831 (Belovo, Russia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 46° South in Belovo, Russia

To maximize your solar PV system's energy output in Belovo, Russia (Lat/Long 54.3613, 86.1831) throughout the year, you should tilt your panels at an angle of 46° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Belovo, Russia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Belovo, Russia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 46° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
38° South in Summer	57° South in Autumn	68° South in Winter	46° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Belovo, Russia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Belovo, Russia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Belovo, Russia

The area around Belovo, Russia, is characterized by a mix of gently rolling hills and relatively flat plains. This region is part of the larger West Siberian Plain, which is known for its vast expanses of relatively level terrain. The landscape is punctuated by small rivers and streams that have carved shallow valleys over time.

The topography in this area is generally conducive to various types of land use, including agriculture and industrial development. The terrain is not particularly mountainous, with most elevation changes being gradual rather than steep. This gentle landscape is typical of much of southwestern Siberia.

When considering areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, several factors come into play. The ideal locations would be relatively flat or gently sloping areas that receive ample sunlight throughout the year. Open fields or cleared land away from forested areas would be preferable, as they would have fewer obstructions blocking sunlight.

The plains to the south and southeast of Belovo might be particularly well-suited for solar PV projects. These areas tend to have fewer trees and more open space, which is advantageous for solar panel placement. Additionally, slightly elevated areas or south-facing slopes could potentially receive more direct sunlight, making them attractive options for solar farm development.

It's important to note that while the topography around Belovo is generally favorable for solar PV, other factors such as local climate conditions, proximity to power infrastructure, and land use regulations would also need to be considered when planning large-scale solar installations. The region experiences cold winters and relatively short summers, which could impact the overall efficiency of solar power generation.

Russia solar PV Stats as a country

Russia ranks 35th in the world for cumulative solar PV capacity, with 1,661 total MW's of solar PV installed. Each year Russia is generating 11 Watts from solar PV per capita (Russia ranks 72nd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Russia?

Yes, there are incentives for businesses wanting to install solar energy in Russia. The Russian government has implemented a number of policies and programs to encourage the development of renewable energy sources, including solar energy. These include tax breaks, subsidies, grants, and other financial incentives. Additionally, the government has established a feed-in tariff system that guarantees long-term contracts with fixed prices for electricity generated from renewable sources such as solar power.

Do you have more up to date information than this on incentives towards solar PV projects in Russia? Please reach out to us and help us keep this information current. Thanks!
