Solar PV Analysis of Chelyabinsk, Russia
Chelyabinsk, Russia, located at latitude 55.1581 and longitude 61.4313, presents a challenging environment for year-round solar PV energy generation. This location in the Northern Temperate Zone experiences significant seasonal variations in solar output, which greatly impacts the efficiency of solar installations.
Seasonal Solar Output
The solar energy production in Chelyabinsk varies dramatically throughout the year. Summer months offer the highest potential, with an average daily output of 6.15kWh per kW of installed solar capacity. Spring follows with 5.25kWh/day, making these two seasons the most productive for solar energy generation.
In contrast, autumn and winter see a sharp decline in solar output. Autumn produces an average of 1.92kWh/day, while winter drops to a mere 1.11kWh/day per kW installed. This substantial difference highlights the challenges of relying on solar energy year-round in this location.
Optimal Panel Installation
To maximize year-round solar production in Chelyabinsk, fixed solar panels should be tilted at a 46-degree angle facing south. This angle is calculated to optimize the total annual energy output, taking into account the location's latitude and seasonal sun positions.
Environmental and Weather Factors
Several environmental and weather factors can significantly impact solar production in Chelyabinsk:
- Long, cold winters with heavy snowfall can cover solar panels, reducing efficiency.
- Limited daylight hours during winter months further decrease potential energy production.
To mitigate these issues, solar installations in Chelyabinsk should incorporate the following preventative measures:
- Use of snow-shedding panel designs or regular snow removal systems
- Installation of panels at steeper angles to promote snow sliding off
- Incorporation of cold-resistant technologies to maintain efficiency in low temperatures
While Chelyabinsk's location poses challenges for year-round solar energy production, proper planning and preventative measures can help maximize output during the more favorable seasons and mitigate the impact of harsh winter conditions.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 35 locations across Russia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Russia by location

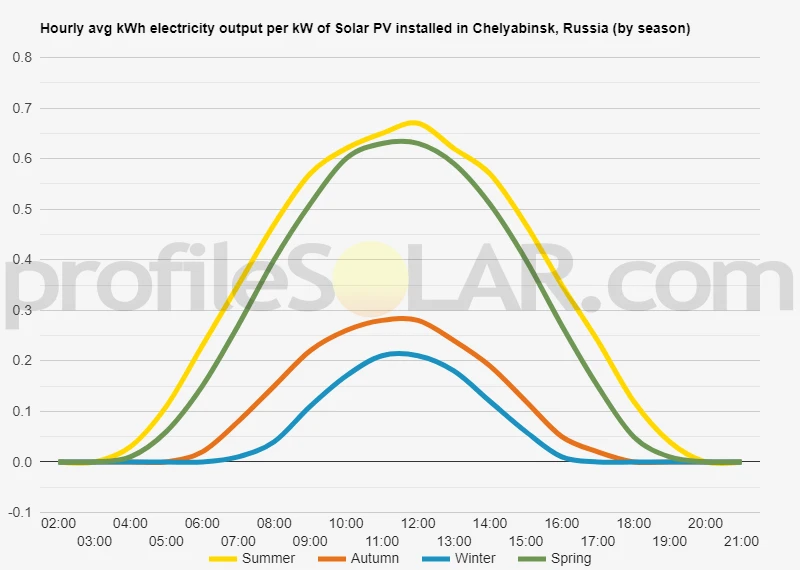

Solar output per kW of installed solar PV by season in Chelyabinsk
Seasonal solar PV output for Latitude: 55.1581, Longitude: 61.4313 (Chelyabinsk, Russia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 46° South in Chelyabinsk, Russia
To maximize your solar PV system's energy output in Chelyabinsk, Russia (Lat/Long 55.1581, 61.4313) throughout the year, you should tilt your panels at an angle of 46° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Chelyabinsk, Russia
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chelyabinsk, Russia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 46° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 39° South in Summer | 58° South in Autumn | 68° South in Winter | 47° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Chelyabinsk, Russia
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chelyabinsk, Russia.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Chelyabinsk, Russia
The topography around Chelyabinsk, Russia, is characterized by a mix of flat plains and gently rolling hills. The city itself is situated in a relatively flat area on the eastern side of the Ural Mountains, which run north to south and form a natural boundary between Europe and Asia. The terrain gradually becomes more hilly as you move westward towards the Ural Mountains, while to the east, the landscape transitions into the vast West Siberian Plain.
Chelyabinsk is located in the southern part of the Ural region, where the elevation is generally lower compared to the northern parts of the mountain range. The city sits at an average elevation of about 200-250 meters above sea level. The surrounding area features numerous small rivers and lakes, including the Miass River, which flows through the city.
When considering areas nearby that would be most suited for large-scale solar PV (photovoltaic) installations, several factors come into play. The ideal locations would be relatively flat, open areas with minimal shading from trees or other obstructions. These areas should also have good access to existing infrastructure, such as roads and power transmission lines.
Based on these criteria, the most suitable areas for large-scale solar PV near Chelyabinsk would likely be found in the plains to the east and southeast of the city. These areas offer vast, open spaces with fewer geographical obstacles compared to the more hilly regions to the west. The flat terrain would make it easier to install and maintain large arrays of solar panels, and there would be less risk of shading from natural features.
However, it's important to note that while the topography in these areas may be suitable, other factors such as local climate conditions, land ownership, and proximity to power infrastructure would also need to be considered when planning a large-scale solar PV project. Additionally, environmental impact assessments and regulatory approvals would be necessary before any such project could move forward.
Russia solar PV Stats as a country
Russia ranks 35th in the world for cumulative solar PV capacity, with 1,661 total MW's of solar PV installed. Each year Russia is generating 11 Watts from solar PV per capita (Russia ranks 72nd in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Russia?
Yes, there are incentives for businesses wanting to install solar energy in Russia. The Russian government has implemented a number of policies and programs to encourage the development of renewable energy sources, including solar energy. These include tax breaks, subsidies, grants, and other financial incentives. Additionally, the government has established a feed-in tariff system that guarantees long-term contracts with fixed prices for electricity generated from renewable sources such as solar power.
Do you have more up to date information than this on incentives towards solar PV projects in Russia? Please reach out to us and help us keep this information current. Thanks!
