Serpukhov, Moscow Oblast, Russia, located at latitude 54.9213 and longitude 37.4217, presents a challenging environment for year-round solar energy generation. Situated in the Northern Temperate Zone, this location experiences significant seasonal variations in solar potential.

Seasonal Solar Performance

The solar output at Serpukhov varies dramatically across seasons. Summer proves to be the most productive period, with an impressive 5.99 kWh per day for each kilowatt of installed solar capacity. Spring follows as the second-best season, yielding 4.18 kWh/day. However, autumn and winter see a sharp decline in production, with 1.75 kWh/day and a mere 0.91 kWh/day, respectively.

Optimal Times for Solar Generation

Given these figures, the ideal time for solar energy production in Serpukhov is clearly during the summer months, typically from June to August. Spring, particularly late spring, also offers good potential. The extended daylight hours and higher sun angles during these periods contribute significantly to the enhanced solar output.

Panel Installation Considerations

To maximize year-round solar production at this location, fixed panels should be tilted at an angle of 46 degrees facing south. This optimal angle helps capture the most sunlight throughout the year, considering the Earth's elliptical orbit and Serpukhov's northern latitude.

Environmental and Weather Factors

Several environmental and weather factors can impede solar production in Serpukhov:

1. Long, harsh winters with heavy snowfall can cover panels, reducing efficiency.
2. Frequent cloud cover, especially during autumn and winter, limits solar irradiance.

To mitigate these issues, consider installing panels at a steeper angle to promote snow sliding off. Additionally, use high-quality, weather-resistant panels and implement a regular cleaning schedule. Snow sensors and automated cleaning systems can also help maintain efficiency during winter months.

Conclusion

While Serpukhov's location presents challenges for year-round solar energy production, proper planning and installation techniques can help maximize output during the more favorable seasons. The stark contrast between summer and winter production emphasizes the need for supplementary energy sources or storage solutions to ensure consistent power supply throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 35 locations across Russia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Russia by location

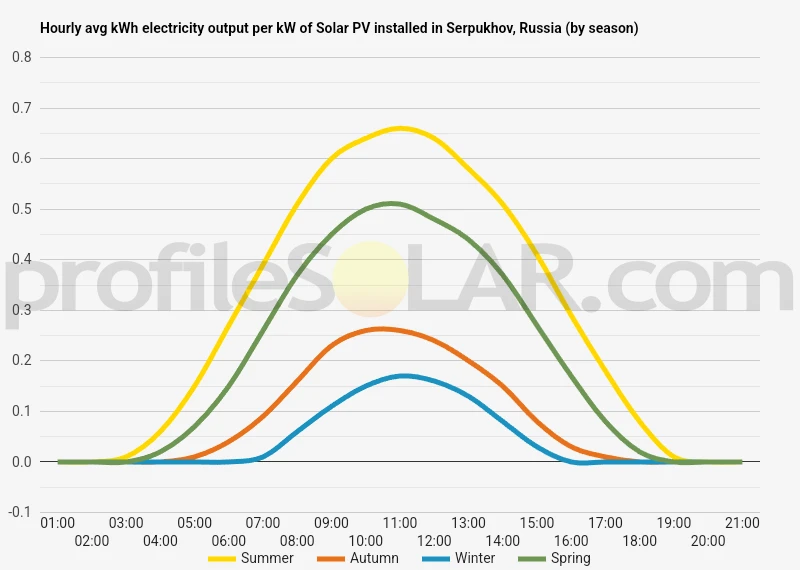

Solar output per kW of installed solar PV by season in Serpukhov

Seasonal solar PV output for Latitude: 54.9213, Longitude: 37.4217 (Serpukhov, Russia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 46° South in Serpukhov, Russia

To maximize your solar PV system's energy output in Serpukhov, Russia (Lat/Long 54.9213, 37.4217) throughout the year, you should tilt your panels at an angle of 46° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Serpukhov, Russia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Serpukhov, Russia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 46° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
38° South in Summer	58° South in Autumn	67° South in Winter	47° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Serpukhov, Russia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Serpukhov, Russia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Serpukhov, Russia

The topography around Serpukhov, Russia, is characterized by gently rolling hills and plains typical of the East European Plain. Located approximately 100 kilometers south of Moscow, Serpukhov sits near the confluence of the Oka and Nara rivers. The surrounding landscape is a mix of forested areas, agricultural fields, and small settlements. The terrain in this region is generally flat to slightly undulating, with occasional low hills and shallow valleys. The elevation varies between 100 to 200 meters above sea level, with gradual changes in altitude across the area. The Oka River valley, which runs to the east of Serpukhov, creates a broader, flatter floodplain that contrasts with the slightly more elevated areas to the west.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The relatively flat terrain in many parts of the region surrounding Serpukhov is generally favorable for solar PV development, as it reduces the complexity and cost of site preparation and construction. The most suitable areas for large-scale solar PV would likely be found in the open agricultural lands to the south and southwest of Serpukhov. These areas typically have fewer trees and structures that could cast shadows on solar panels, maximizing potential sunlight exposure. The gently sloping terrain in these directions also provides good drainage and the possibility of orienting panels for optimal solar gain. It's worth noting that while the topography is suitable, the region's latitude means that solar irradiance is not as high as in more southern locations. This factor, combined with the area's climate, which includes significant cloud cover and snowfall in winter, would need to be carefully considered when planning any large-scale solar PV project. Areas to the north and east of Serpukhov, closer to the Oka River, may be less ideal due to potential flooding risks and higher humidity levels, which could affect solar panel efficiency and longevity. Additionally, these areas often have more tree cover, which would require clearing and potentially impact local ecosystems. In conclusion, while the topography around Serpukhov is generally favorable for solar PV development, with many flat and gently sloping areas, the most promising locations would likely be in the open agricultural lands to the south and southwest of the city. Any large-scale solar project in this region would need to carefully balance topographical advantages with other environmental and climatic factors to ensure optimal performance and sustainability.

Russia solar PV Stats as a country

Russia ranks 35th in the world for cumulative solar PV capacity, with 1,661 total MW's of solar PV installed. Each year Russia is generating 11 Watts from solar PV per capita (Russia ranks 72nd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Russia?

Yes, there are incentives for businesses wanting to install solar energy in Russia. The Russian government has implemented a number of policies and programs to encourage the development of renewable energy sources, including solar energy. These include tax breaks, subsidies, grants, and other financial incentives. Additionally, the government has established a feed-in tariff system that guarantees long-term contracts with fixed prices for electricity generated from renewable sources such as solar power.

Do you have more up to date information than this on incentives towards solar PV projects in Russia? Please reach out to us and help us keep this information current. Thanks!
