Tomsk, Russia, located at latitude 56.4957° and longitude 84.9636° in the Northern Temperate Zone, presents varied potential for solar energy generation throughout the year. The location experiences significant seasonal fluctuations in solar electricity production.

Seasonal Solar Production

Solar panels in Tomsk demonstrate considerable variation in energy output across the seasons. Summer is clearly the most productive period, generating 5.61 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 4.48 kWh/day. Energy production drops substantially during autumn to 1.79 kWh/day, while winter sees the lowest output at just 1.00 kWh/day per kilowatt installed.

This pattern shows that solar energy generation in Tomsk is heavily weighted toward the warmer months, with summer and spring accounting for the majority of annual production. The nearly six-fold difference between summer and winter outputs highlights the seasonal challenges of relying on solar power in this northern location.

Optimal Panel Installation

For fixed solar panel installations in Tomsk, the ideal tilt angle to maximize year-round energy production is 48 degrees facing South. This angle has been calculated by analyzing daily solar elevation patterns at this latitude, weighted by the potential daily production throughout the year.

Environmental and Weather Challenges

Several significant factors can impede solar production in Tomsk:

• Heavy snowfall in winter can cover panels and drastically reduce output during already low-production months
• Frequent cloud cover, particularly in autumn and winter
• Extremely cold temperatures that can affect electrical components
• Short winter days combined with low sun angle in this northern location
• Potential for dust and pollen accumulation during spring and summer

Preventative Measures

To maximize solar production despite these challenges, several strategies can be implemented:

• Install panels at the optimal 48-degree angle to facilitate snow shedding and maximize year-round production
• Use snow-removal systems or manual clearing procedures during winter months
• Select cold-weather rated equipment designed to maintain efficiency at low temperatures
• Implement regular cleaning maintenance, especially after winter and during pollen seasons
• Consider dual-axis tracking systems to capture more energy during limited daylight periods (though cost-benefit analysis is needed)
• Use micro-inverters or power optimizers to minimize the impact of partial shading

Given these considerations, Tomsk represents a location where solar energy is best viewed as a seasonal contributor to an energy mix rather than a year-round primary source. The substantial summer and spring production could effectively supplement other energy sources during these periods.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 35 locations across Russia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Russia by location

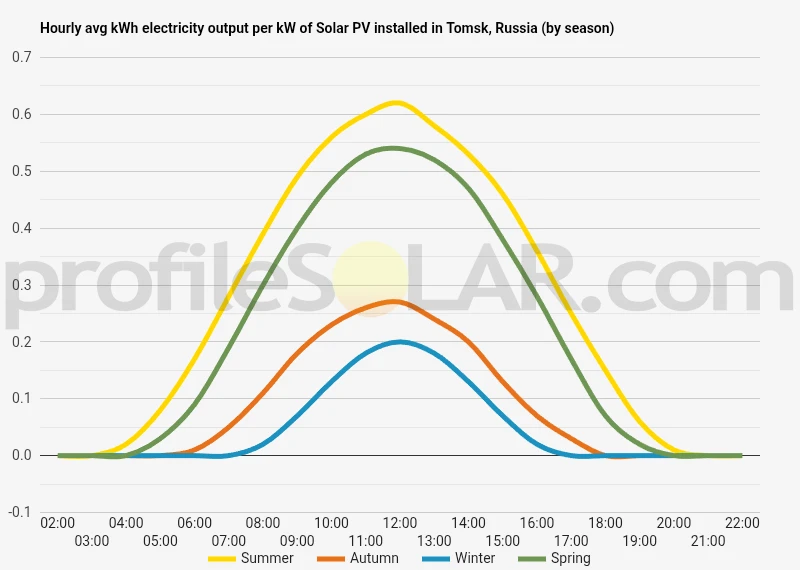

Solar output per kW of installed solar PV by season in Tomsk

Seasonal solar PV output for Latitude: 56.4957, Longitude: 84.9636 (Tomsk, Russia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 48° South in Tomsk, Russia

To maximize your solar PV system's energy output in Tomsk, Russia (Lat/Long 56.4957, 84.9636) throughout the year, you should tilt your panels at an angle of 48° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tomsk, Russia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tomsk, Russia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 48° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
40° South in Summer	59° South in Autumn	69° South in Winter	48° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tomsk, Russia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tomsk, Russia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tomsk, Russia

The city of Tomsk is nestled within the southeastern portion of the West Siberian Plain, characterized by a gently undulating landscape with subtle variations in elevation. The terrain around Tomsk features a mix of low hills, shallow valleys, and flat plateaus, with the Tom River being a dominant natural feature cutting through the area. The elevation within the city and surrounding regions typically ranges between 80 to 200 meters above sea level, creating a moderately varied topographical profile. To the east of Tomsk, the landscape gradually transitions toward the foothills of the Kuznetsk Alatau mountain range, part of the larger Sayan-Altai mountain system. This transition zone exhibits more pronounced relief with increasing elevation. The western areas maintain the characteristic flatness of the West Siberian Plain, with occasional depressions and minor elevations.

Forested Areas and Open Spaces

The region surrounding Tomsk is predominantly covered by southern taiga forests, primarily composed of pine, cedar, fir, and birch trees. These forested areas are interspersed with clearings, agricultural lands, and natural meadows. The forest density gradually increases toward the east and southeast, while more open spaces can be found to the west and northwest of the city. The river systems around Tomsk, including the Tom River and its tributaries, have carved valleys and floodplains that create natural breaks in the otherwise continuous forest cover. These river valleys often feature wider open spaces with less tree coverage.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Tomsk would be the relatively flat, open territories to the west and northwest of the city. These regions offer several advantages for solar development: The open plains to the west feature fewer tall forests and less dramatic elevation changes, minimizing shadowing effects that could reduce solar efficiency. Agricultural lands and natural clearings in this direction provide potential sites with minimal need for forest clearing, reducing environmental impact and installation costs. Elevated plateaus within 30-50 kilometers of the city, particularly those with southern exposures, would offer improved solar collection potential. These slightly elevated areas often experience less fog and ground-level atmospheric interference than the river valleys. The floodplains along the Tom River and its tributaries, while flat and accessible, may be less suitable due to seasonal flooding risks and higher humidity levels that can affect solar panel performance and longevity. Areas to the immediate east of Tomsk become increasingly challenging for large-scale solar installations due to the more varied topography, denser forest coverage, and increasing elevation as the land transitions toward the Kuznetsk Alatau foothills. These factors would increase the complexity and cost of installation while potentially reducing overall efficiency. The northwestern sector beyond Tomsk offers the best balance of flat terrain, reduced forest density, and land availability for substantial solar PV projects. These areas would require less extensive land preparation while providing adequate space for the arrangement of solar arrays in configurations that maximize exposure to available sunlight.

Russia solar PV Stats as a country

Russia ranks 35th in the world for cumulative solar PV capacity, with 1,661 total MW's of solar PV installed. Each year Russia is generating 11 Watts from solar PV per capita (Russia ranks 72nd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Russia?

Yes, there are incentives for businesses wanting to install solar energy in Russia. The Russian government has implemented a number of policies and programs to encourage the development of renewable energy sources, including solar energy. These include tax breaks, subsidies, grants, and other financial incentives. Additionally, the government has established a feed-in tariff system that guarantees long-term contracts with fixed prices for electricity generated from renewable sources such as solar power.

Do you have more up to date information than this on incentives towards solar PV projects in Russia? Please reach out to us and help us keep this information current. Thanks!
