Gitarama, Southern Province, Rwanda presents an excellent location for year-round solar photovoltaic energy generation. Located in the tropics where sunlight remains consistent throughout most of the year, this region experiences seasons characterized more by wet and dry periods rather than the traditional temperature-based seasons found in temperate climates.

Solar Energy Output Performance

The solar energy production data for Gitarama shows remarkably consistent and high performance across all seasons. The location generates between 5.12 and 5.71 kWh per day for each kW of installed solar capacity, with minimal seasonal variation of only 0.59 kWh difference between the lowest and highest producing seasons. Summer produces 5.12 kWh/day per kW, while autumn shows a slight improvement to 5.37 kWh/day per kW. Winter and spring represent the peak solar generation periods, delivering 5.68 kWh/day and 5.71 kWh/day per kW respectively. This makes spring the optimal time for solar energy generation at this location, closely followed by winter.

Optimal Panel Installation

For maximum year-round solar production at Gitarama, Southern Province, fixed solar panels should be tilted at an angle of 3 degrees North. This optimal tilt angle has been calculated by analyzing daily solar elevation angles at this latitude, determining daily optimal panel positioning, and weighting these angles according to photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Several significant environmental factors could impact solar production at this location and require careful consideration during installation:

• Dust accumulation during dry seasons: The tropical climate's distinct dry periods can lead to substantial dust buildup on solar panels, reducing their efficiency
• Heavy rainfall and potential hail during wet seasons: Intense tropical precipitation patterns may cause physical damage or temporary performance reduction
• High humidity levels: Consistent tropical humidity can affect electrical components and connections over time
• Volcanic dust exposure: Rwanda's location in the East African Rift Valley means potential exposure to volcanic ash from regional volcanic activity

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented. Installing panels with appropriate tilt angles not only optimizes sun exposure but also facilitates natural cleaning through rainfall runoff, reducing dust accumulation. Regular maintenance schedules become crucial, particularly during dry season transitions when dust buildup peaks. Automated or manual cleaning systems should be considered for larger installations. Using high-quality, weather-resistant mounting systems and electrical components rated for tropical conditions helps combat humidity-related degradation. Panel positioning should allow adequate ventilation to prevent moisture buildup, while protective measures against potential hail damage, such as impact-resistant glass, provide additional security. Monitoring systems can help detect performance drops quickly, enabling prompt maintenance responses. Despite these environmental considerations, Gitarama's consistent high solar output throughout the year makes it an exceptionally viable location for solar energy projects, with proper installation and maintenance practices ensuring optimal long-term performance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 6 locations across Rwanda. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Rwanda by location

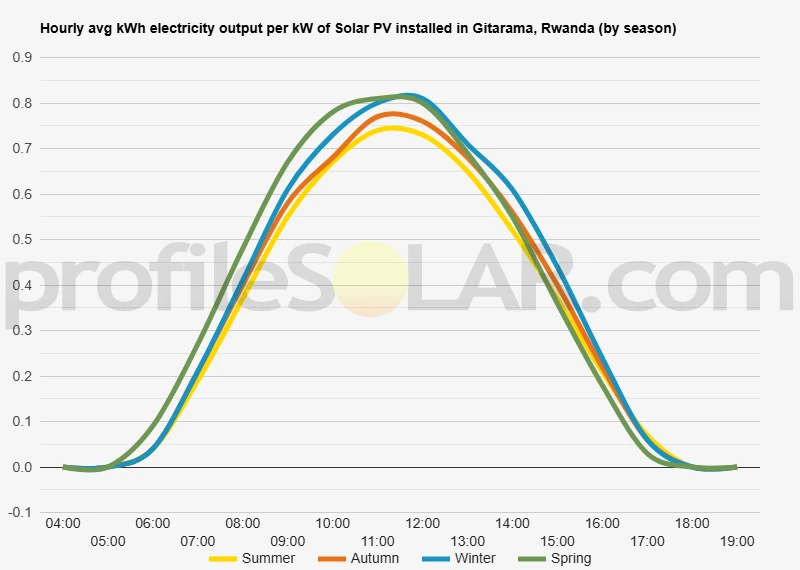

Solar output per kW of installed solar PV by season in Gitarama

Seasonal solar PV output for Latitude: -2.0681, Longitude: 29.7661 (Gitarama, Rwanda), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 3° North in Gitarama, Rwanda

To maximize your solar PV system's energy output in Gitarama, Rwanda (Lat/Long -2.0681, 29.7661) throughout the year, you should tilt your panels at an angle of 3° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Gitarama, Rwanda

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Gitarama, Rwanda. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 3° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° South in Summer	8° North in Autumn	18° North in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Gitarama, Rwanda

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Gitarama, Rwanda.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Gitarama, Rwanda

Topography Around Gitarama

Gitarama, now officially known as Muhanga, sits in the heart of Rwanda's central highlands at an elevation of approximately 1,700 meters above sea level. The terrain around this area is characterized by the rolling hills and ridges that define Rwanda's distinctive landscape, earning the country its nickname as the "Land of a Thousand Hills." The topography features a series of undulating hills separated by valleys, with slopes that range from gentle to moderately steep.

The region experiences a temperate climate due to its high altitude, which moderates what would otherwise be tropical conditions given Rwanda's proximity to the equator. The landscape is predominantly agricultural, with terraced hillsides supporting crops like coffee, tea, and various food crops. The area receives regular rainfall, contributing to the lush green appearance of the hills throughout much of the year.

Water features include several small rivers and streams that flow through the valleys between the hills, eventually draining toward larger river systems. The soil composition varies across the region, with some areas featuring rich volcanic soils while others have more lateritic characteristics typical of highland tropical regions.

Optimal Areas for Large-Scale Solar Development

When considering large-scale solar photovoltaic installations around Gitarama, the most suitable locations would be the broader hilltops and ridge areas that offer relatively flat or gently sloping terrain. These elevated positions provide several advantages for solar development, including reduced shading from surrounding topography and better access to consistent solar exposure throughout the day.

The wider valley floors present another promising option, particularly those that are not currently under intensive agricultural use or do not serve as important water catchment areas. These locations often provide larger contiguous areas suitable for extensive solar arrays, though careful consideration must be given to drainage patterns and flood risk during the rainy seasons.

Areas with south-facing slopes would be particularly advantageous, as they receive optimal solar exposure in the Southern Hemisphere. However, slopes should be moderate rather than steep to minimize construction challenges and reduce the risk of erosion. The ideal sites would combine accessible terrain with proximity to existing electrical infrastructure or roads that could facilitate connection to the power grid and maintenance access.

Environmental considerations play a crucial role in site selection. Areas with less ecological sensitivity or those not critical for local water supplies would be preferable. Additionally, locations that avoid prime agricultural land would help minimize conflicts with food production and local farming communities. The region's relatively stable geological conditions, typical of the central highlands, generally support the construction requirements for large-scale solar installations.
