Khamis Mushait, 'Asir Region, Saudi Arabia presents an excellent location for year-round solar photovoltaic energy generation, with consistently high solar output throughout all seasons due to its tropical positioning and abundant sunshine.

Seasonal Solar Performance

The solar energy production at this location shows strong performance across all meteorological seasons. Spring delivers the highest output at 7.56 kWh per day per kW of installed solar capacity, making it the ideal time for maximum generation. Summer follows closely with 7.16 kWh per day, while autumn maintains good productivity at 6.66 kWh per day. Even winter, the lowest-producing season, still generates a respectable 5.84 kWh per day per kW installed. This seasonal variation of only 1.72 kWh between the best and worst performing seasons demonstrates the location's reliability for consistent solar energy production throughout the year. The peak production period spans from late winter through summer, with spring and summer offering optimal conditions.

Optimal Panel Configuration

For fixed panel installations at Khamis Mushait, 'Asir Region, the ideal tilt angle is 17 degrees facing south. This angle maximizes total year-round solar production by accounting for the sun's varying elevation throughout the seasons and weighting these angles based on actual solar irradiance data and daily photovoltaic potential.

Environmental Challenges and Solutions

Despite the excellent solar potential, several environmental factors in this desert region can impact solar panel performance and require careful consideration during installation. Dust and Sand Accumulation represents the most significant challenge for solar installations in Khamis Mushait. The arid climate and frequent dust storms can coat solar panels, reducing their efficiency by blocking sunlight from reaching the photovoltaic cells. Extreme Heat poses another concern, as solar panels lose efficiency when operating temperatures become excessive. While abundant sunshine is beneficial, the intense desert heat can reduce overall system performance.

Preventative Measures

To combat dust accumulation, several strategies prove effective:

• Install automated cleaning systems that regularly wash panels with minimal water usage
• Apply anti-soiling coatings to panel surfaces that reduce dust adhesion
• Design mounting systems with adequate tilt to promote natural dust removal during occasional rainfall
• Schedule regular manual cleaning during peak dust season periods

For heat management, proper installation techniques include:

• Ensure adequate ventilation space beneath panels to promote air circulation
• Use mounting systems that elevate panels sufficiently above roof surfaces
• Select high-quality panels with better temperature coefficients that maintain efficiency in extreme heat
• Consider tracking systems that can optimize panel positioning while providing some heat management benefits

Overall Assessment

Khamis Mushait offers exceptional conditions for solar energy generation, with consistent high output throughout the year and minimal seasonal variation. While dust and heat present operational challenges common to desert installations, these can be effectively managed through proper system design and maintenance protocols. The location's solar potential far outweighs these manageable environmental factors, making it highly suitable for both residential and commercial solar installations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 26 locations across Saudi Arabia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Saudi Arabia by location

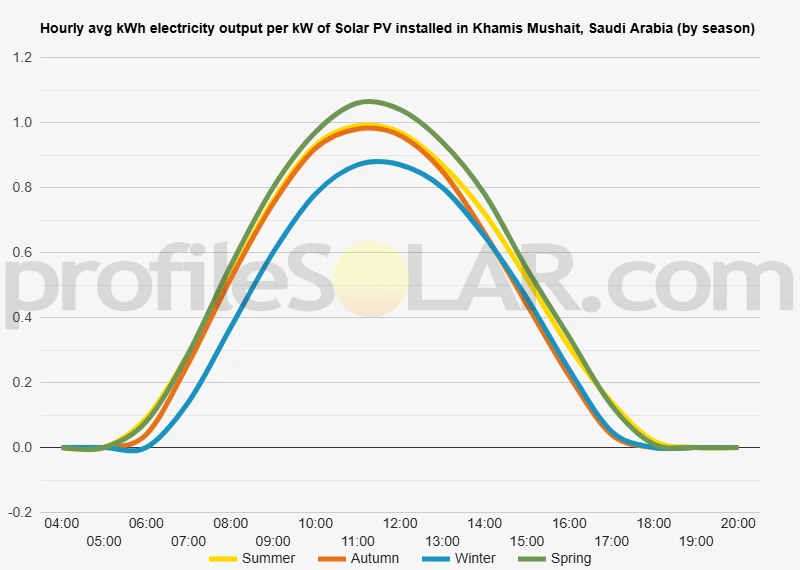

Solar output per kW of installed solar PV by season in Khamis Mushait

Seasonal solar PV output for Latitude: 18.3009, Longitude: 42.733 (Khamis Mushait, Saudi Arabia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 17° South in Khamis Mushait, Saudi Arabia

To maximize your solar PV system's energy output in Khamis Mushait, Saudi Arabia (Lat/Long 18.3009, 42.733) throughout the year, you should tilt your panels at an angle of 17° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Khamis Mushait, Saudi Arabia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Khamis Mushait, Saudi Arabia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 17° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° South in Summer	24° South in Autumn	34° South in Winter	12° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Khamis Mushait, Saudi Arabia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Khamis Mushait, Saudi Arabia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Khamis Mushait, Saudi Arabia

Topographical Features of Khamis Mushait

Khamis Mushait sits in the southwestern region of Saudi Arabia within the Asir Province, positioned at an elevation of approximately 2,000 meters above sea level. The city is nestled in the Asir Mountains, part of the larger Arabian Peninsula's western highlands that run parallel to the Red Sea coast. This mountainous terrain creates a dramatically different landscape compared to the vast desert plains that characterize much of Saudi Arabia. The immediate area around Khamis Mushait features rolling hills and steep-sided valleys, with the terrain becoming increasingly rugged as one moves toward the western escarpment that drops down to the Tihama coastal plain. To the east, the mountains gradually give way to the edge of the Rub' al Khali or Empty Quarter desert. The region's topography is characterized by ancient volcanic and metamorphic rock formations that have been carved by centuries of erosion into complex patterns of ridges, wadis (dry riverbeds), and plateaus.

Climate and Environmental Considerations

The elevated position of Khamis Mushait creates a notably different climate compared to the surrounding lowlands. The mountainous terrain moderates temperatures throughout the year, making the region one of the most temperate areas in Saudi Arabia. The area experiences a semi-arid climate with relatively mild summers and cool winters, though precipitation remains limited throughout most of the year. The topographical diversity means that microclimates exist within relatively short distances. Higher elevations tend to be cooler and may experience occasional fog, while lower valleys and plateaus receive more consistent solar exposure. The region's position on the western side of the Arabian Peninsula also means it can be influenced by weather patterns from the Red Sea, though the mountainous barrier limits most moisture from reaching the interior.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Khamis Mushait would be the relatively flat plateaus and gentle slopes found to the east and northeast of the city. These areas offer several advantages including more stable ground conditions, reduced construction complexity, and consistent solar exposure without the shading effects that can occur in the deeper mountain valleys. The eastern approaches toward the desert margin present particularly promising opportunities. Here, the terrain transitions from the steep mountain slopes to broader, more gently undulating plateaus that extend toward the interior of the peninsula. These areas combine the benefits of elevated positioning with the practical advantages of flatter topography that simplifies both construction and maintenance access. Areas to the south and southeast of Khamis Mushait also show potential, where the landscape opens into wider valleys and elevated plains. These locations benefit from good solar exposure while remaining accessible via existing road networks that connect the region to major population centers.

Topographical Challenges and Considerations

The mountainous nature of the region does present certain challenges for solar development. The steep slopes and rocky terrain that characterize much of the immediate vicinity would require significant grading and preparation work, increasing development costs. The complex topography also means that careful site selection is essential to avoid areas prone to seasonal water flow during the rare but intense rainfall events that can affect the region. The volcanic and metamorphic bedrock, while providing stable foundations once prepared, may require specialized equipment for excavation and site preparation. However, this same geological stability offers advantages for long-term installations, as the risk of ground subsidence or shifting is minimal compared to areas with sedimentary soils. Wind patterns in mountainous terrain can be unpredictable and may create challenges for solar panel positioning and maintenance access. The elevation changes also mean that temperature variations across a large installation could be significant, requiring careful consideration in system design and component selection.

Saudi Arabia solar PV Stats as a country

Saudi Arabia ranks 54th in the world for cumulative solar PV capacity, with 439 total MW's of solar PV installed. Each year Saudi Arabia is generating 13 Watts from solar PV per capita (Saudi Arabia ranks 70th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Saudi Arabia?

Yes, there are incentives for businesses wanting to install solar energy in Saudi Arabia. The government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include feed-in tariffs, net metering, and subsidies for installation costs. Additionally, the government has set up a Renewable Energy Project Development Office (REPDO) which provides technical assistance and financial support to companies interested in developing renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Saudi Arabia? Please reach out to us and help us keep this information current. Thanks!
