Solar PV Analysis of Makkah, Saudi Arabia
In Makkah, Mecca Region, Saudi Arabia, located at latitude 21.423 and longitude 39.821, the potential for solar energy production is high due to its consistently sunny climate throughout all four seasons. The average energy generated per day for each kilowatt of installed solar capacity is estimated to be 7.69 kWh in summer, 6.24 kWh in autumn, 5.23 kWh in winter and 7.78 kWh in spring.
The city's dry climate conditions coupled with minimal cloud cover provide an excellent environment for uninterrupted solar power generation year-round without significant weather-related impediments or disruptions.
For fixed panel installations at this particular location, the optimal tilt angle is found to be approximately 19 degrees towards the South which maximizes exposure to sunlight and further enhances energy output.
However, it's important to consider local factors that could potentially affect solar production such as dust storms which are common in this region due to its desert environment. These can reduce the efficiency of solar panels by blocking sunlight and accumulating on their surface thereby reducing their effectiveness.
To mitigate against this issue and ensure greater energy production from your installation, regular maintenance including cleaning of panels should be scheduled especially after dust storms or during periods of high dust levels. This will help maintain optimal performance of your system while maximizing your return on investment from this renewable energy source.
Note: The Tropics are located between 23.5° North and -23.5° South of the equator.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 26 locations across Saudi Arabia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Saudi Arabia by location

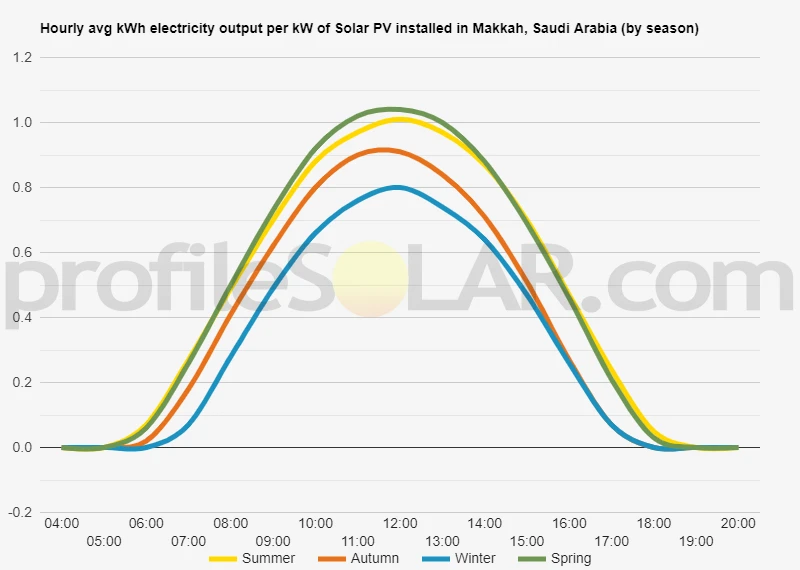

Solar output per kW of installed solar PV by season in Makkah
Seasonal solar PV output for Latitude: 21.423, Longitude: 39.821 (Makkah, Saudi Arabia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 19° South in Makkah, Saudi Arabia
To maximize your solar PV system's energy output in Makkah, Saudi Arabia (Lat/Long 21.423, 39.821) throughout the year, you should tilt your panels at an angle of 19° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Makkah, Saudi Arabia
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Makkah, Saudi Arabia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 5° South in Summer | 27° South in Autumn | 37° South in Winter | 15° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Makkah, Saudi Arabia
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Makkah, Saudi Arabia.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Makkah, Saudi Arabia
The topography around Makkah, Saudi Arabia is mostly flat and consists of desert plains. The highest point in the area is Mount Uhad, which stands at 1,053 meters above sea level. Areas that are most suitable for large-scale solar PV installations include open areas with little to no shade such as desert plains or rooftops. Additionally, areas with good access to roads and other infrastructure would be ideal for installation purposes.
Saudi Arabia solar PV Stats as a country
Saudi Arabia ranks 54th in the world for cumulative solar PV capacity, with 439 total MW's of solar PV installed. Each year Saudi Arabia is generating 13 Watts from solar PV per capita (Saudi Arabia ranks 70th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Saudi Arabia?
Yes, there are incentives for businesses wanting to install solar energy in Saudi Arabia. The government has implemented a number of policies and programs to encourage the adoption of renewable energy sources such as solar power. These include feed-in tariffs, net metering, and subsidies for installation costs. Additionally, the government has set up a Renewable Energy Project Development Office (REPDO) which provides technical assistance and financial support to companies interested in developing renewable energy projects.
Do you have more up to date information than this on incentives towards solar PV projects in Saudi Arabia? Please reach out to us and help us keep this information current. Thanks!
Citation Guide
Article Details for Citation
Author: Aaron Robinson
Publisher: profileSOLAR.com
First Published: Sunday 24th of December 2023
Last Updated: Monday 21st of July 2025
