Solar Energy Potential at Chia Keng, Singapore

Chia Keng, Singapore, located at 1.3552, 103.8859, offers remarkably consistent solar energy generation potential throughout the year. This tropical location benefits from relatively steady sunlight patterns across seasons, which are typically characterized more by wet and dry periods rather than traditional temperature-based seasons. The solar electricity output at this location shows impressive consistency across meteorological seasons. Spring emerges as the most productive period with an average daily output of 5.43kWh per kW of installed solar capacity. Autumn follows with 5.10kWh/day, then winter with 5.00kWh/day, and summer with 4.76kWh/day. This relatively small variation between seasons (less than 0.7kWh difference between the highest and lowest producing seasons) indicates excellent year-round solar generation potential.

Optimal Panel Installation

For fixed solar panel installations in Chia Keng, the ideal tilt angle to maximize year-round energy production is just 1 degree facing South. This nearly horizontal orientation reflects Singapore's proximity to the equator, where the sun passes almost directly overhead throughout the year.

Environmental and Weather Considerations

Several significant factors can impact solar production in Chia Keng:

• Monsoon seasons and heavy rainfall, particularly during the Northeast Monsoon (December to early March) and Southwest Monsoon (June to September), can temporarily reduce solar output.
• Haze from regional forest fires, especially during dry periods, can significantly diminish solar radiation reaching panels.
• High humidity levels can create condensation on panels, potentially reducing efficiency.
• Urban heat island effects in this densely populated area may actually provide a slight benefit by creating air circulation that can help cool panels.

Preventative Measures

To maximize solar energy production despite these challenges, consider:

• Installing self-cleaning panels or implementing regular cleaning schedules to address dust accumulation and rainfall residue.
• Using anti-soiling coatings to reduce dirt buildup during dry periods and improve water runoff during monsoons.
• Ensuring proper ventilation behind panels to mitigate efficiency losses from Singapore's high ambient temperatures.
• Considering micro-inverters or power optimizers to minimize production losses when parts of the array are shaded or affected by atmospheric conditions.
• Implementing robust lightning protection systems, given Singapore's high thunderstorm frequency.

Overall, Chia Keng presents an excellent location for solar PV installations due to its consistent year-round solar resource, with only minor seasonal variations in production potential.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 12 locations across Singapore. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Singapore by location

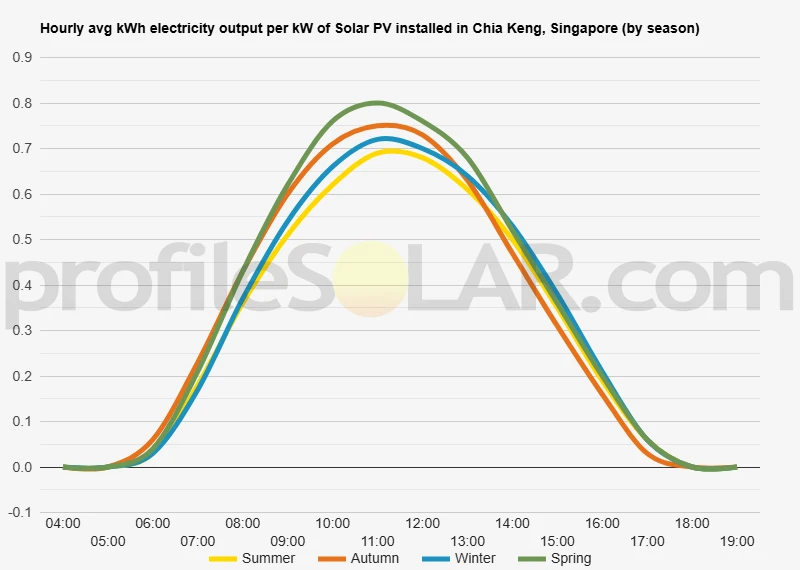

Solar output per kW of installed solar PV by season in Chia Keng

Seasonal solar PV output for Latitude: 1.3552, Longitude: 103.8859 (Chia Keng, Singapore), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 1° South in Chia Keng, Singapore

To maximize your solar PV system's energy output in Chia Keng, Singapore (Lat/Long 1.3552, 103.8859) throughout the year, you should tilt your panels at an angle of 1° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chia Keng, Singapore

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chia Keng, Singapore. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° North in Summer	7° South in Autumn	16° South in Winter	5° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chia Keng, Singapore

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chia Keng, Singapore.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chia Keng, Singapore

Topography of Chia Keng and Surrounding Areas

Chia Keng is situated in the northeastern part of Singapore, within the Hougang planning area. The topography of this region is predominantly characterized by flat, low-lying terrain with minimal elevation changes. Like much of Singapore, the area was once covered with swamps and secondary forests that have been extensively developed through land reclamation and urban planning initiatives. The terrain around Chia Keng features a gentle undulation with elevations typically ranging from 5 to 15 meters above sea level. This relatively flat landscape is part of Singapore's central catchment area, which gradually slopes toward the coastline in the northeast. The Serangoon River and Punggol River watersheds influence the subtle contours of the land in this region. To the west of Chia Keng lies the Central Catchment Nature Reserve, where the terrain becomes slightly more varied with small hills and valleys formed by the reservoir systems. The highest natural point in this vicinity is Bukit Timah Hill, located several kilometers to the southwest, which reaches approximately 163 meters above sea level.

Solar PV Potential in Adjacent Areas

For large-scale solar photovoltaic (PV) deployment near Chia Keng, several surrounding areas present viable options based on topographical considerations: Punggol and Seletar Areas: The reclaimed flatlands to the north and northeast of Chia Keng offer expansive, unobstructed spaces. These areas have minimal shading concerns due to their open nature and flat topography, making them potentially suitable for ground-mounted solar arrays. Reservoir Surfaces: The nearby Serangoon Reservoir and Punggol Reservoir present opportunities for floating solar PV systems. These bodies of water provide large, unobstructed surfaces where floating solar panels can be installed without consuming valuable land resources. The flat water surface ensures consistent exposure to sunlight. Industrial Zones in Sengkang and Hougang: The industrial areas to the east and southeast of Chia Keng feature extensive rooftops on warehouses and manufacturing facilities. These large, flat rooftops are at optimal elevations to avoid shadowing from surrounding structures and vegetation. Reclaimed Coastal Areas: The coastal regions near Punggol and Pasir Ris, though slightly further from Chia Keng, offer flat, open spaces with minimal topographical barriers to sunlight. These areas receive consistent solar radiation due to their coastal position with fewer tall buildings to cast shadows. It's worth noting that Singapore's dense urban development presents challenges for large-scale ground-mounted solar installations in most areas. The most practical approach for solar PV deployment near Chia Keng would likely involve a combination of rooftop installations on commercial and industrial buildings, integrated systems on infrastructure like noise barriers and covered walkways, and potentially floating solar systems on nearby reservoirs. The relatively uniform elevation around Chia Keng means that topographical factors are less critical for solar potential than urban development patterns and building heights, which create the primary shadowing concerns in this densely built environment.

Singapore solar PV Stats as a country

Singapore ranks 56th in the world for cumulative solar PV capacity, with 433 total MW's of solar PV installed. This means that 0.80% of Singapore's total energy as a country comes from solar PV (that's 37th in the world). Each year Singapore is generating 76 Watts from solar PV per capita (Singapore ranks 42nd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Singapore?

Yes, there are several incentives for businesses wanting to install solar energy in Singapore. The SolarNova Programme provides funding support for the installation of solar photovoltaic (PV) systems on rooftops and other suitable areas. Businesses can also benefit from the Solar Capability Development Grant, which helps them develop their capabilities in solar PV system design and installation. Additionally, businesses may be eligible for tax deductions or exemptions under the Productivity and Innovation Credit Scheme (PIC).

Do you have more up to date information than this on incentives towards solar PV projects in Singapore? Please reach out to us and help us keep this information current. Thanks!
