Koolbaai, Sint Maarten, located in the Caribbean tropics, offers a promising environment for solar energy generation. This location benefits from consistent sunlight throughout the year, with seasons primarily distinguished by wet and dry periods rather than significant temperature variations.

Solar Energy Potential

The solar energy output at Koolbaai is relatively stable across seasons, with some fluctuations. Spring stands out as the most productive season, generating an impressive 7.36 kWh per day for each kilowatt of installed solar capacity. Summer follows closely with 6.83 kWh/day, while autumn and winter see slightly lower but still substantial outputs of 6.06 kWh/day and 5.62 kWh/day, respectively.

These figures indicate that Koolbaai is an excellent location for year-round solar energy production. The consistent sunlight in the tropics ensures that even during the less productive seasons, the energy output remains significant.

Optimal Panel Installation

To maximize solar energy production in Koolbaai, fixed solar panels should be tilted at an angle of 16 degrees facing South. This optimal angle has been calculated considering the location's latitude, daily solar elevation angles, and potential daily PV output throughout the year.

Environmental Considerations

While Koolbaai's tropical location is generally favorable for solar energy production, there are some environmental factors to consider:

• Hurricane risk: The Caribbean is prone to hurricanes, which could potentially damage solar installations.
• Salt corrosion: Proximity to the ocean increases the risk of salt spray, which can corrode solar equipment over time.

To mitigate these risks, it's crucial to use hurricane-resistant mounting systems and corrosion-resistant materials in the solar installation. Regular maintenance and cleaning to remove salt deposits can also help ensure longevity and optimal performance of the solar panels.

Despite these challenges, with proper planning and preventive measures, Koolbaai remains an ideal location for solar energy production. The consistent, year-round sunlight and relatively high energy output across all seasons make it a prime spot for harnessing solar power.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 2 locations across Sint Maarten. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Sint Maarten by location

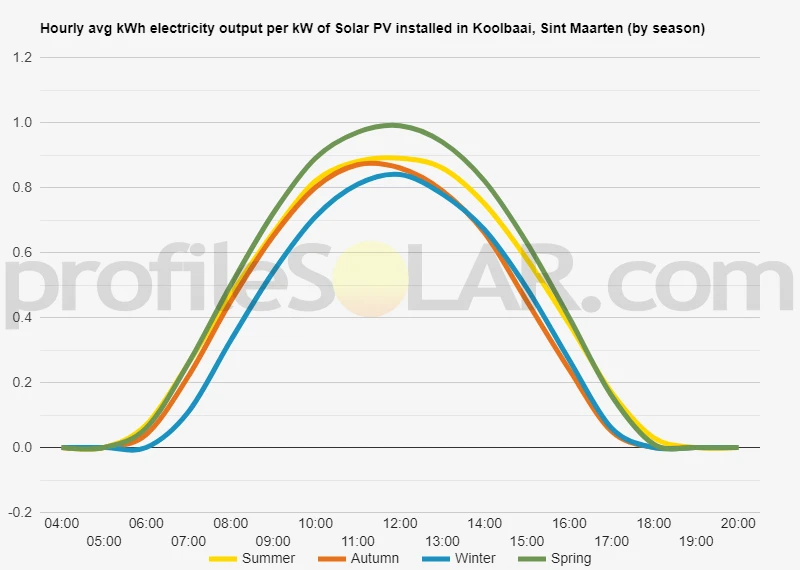

Solar output per kW of installed solar PV by season in Koolbaai

Seasonal solar PV output for Latitude: 18.0346, Longitude: -63.0874 (Koolbaai, Sint Maarten), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 6.83kWh/day in Summer.

Average 6.06kWh/day in Autumn.

Average 5.62kWh/day in Winter.

Average 7.36kWh/day in Spring.

Ideally tilt fixed solar panels 16° South in Koolbaai, Sint Maarten

To maximize your solar PV system's energy output in Koolbaai, Sint Maarten (Lat/Long 18.0346, -63.0874) throughout the year, you should tilt your panels at an angle of 16° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 18.0346, Longitude: -63.0874, the ideal angle to tilt panels is 16° South

Seasonally adjusted solar panel tilt angles for Koolbaai, Sint Maarten

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Koolbaai, Sint Maarten. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 16° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Koolbaai, Sint Maarten

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Koolbaai, Sint Maarten.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Koolbaai, Sint Maarten

The area around Koolbaai in Sint Maarten is characterized by a mix of coastal and hilly terrain. Koolbaai itself is a small bay located on the southwestern coast of the island. The immediate surroundings feature gently sloping land that gradually rises as you move inland.

The coastline in this area is marked by sandy beaches and rocky outcrops. As you move away from the shore, the landscape becomes more varied, with low hills and valleys dotting the terrain. The elevation increases gradually, with some areas reaching heights of around 100 to 200 meters above sea level within a few kilometers of the coast.

The vegetation in this region is typical of a tropical climate, with lush greenery covering much of the undeveloped land. There are also some areas of exposed rock and soil, particularly on steeper slopes and higher elevations.

Regarding areas suitable for large-scale solar PV installations, the most promising locations would be the relatively flat or gently sloping areas inland from Koolbaai. These areas offer several advantages for solar energy production:

1. They receive ample sunlight throughout the year due to Sint Maarten's tropical location.
2. The slightly elevated terrain helps to minimize shading from nearby hills or vegetation.
3. These areas are generally less developed than the coastal regions, providing more space for large installations.
4. The inland location offers some protection from salt spray and coastal winds, which can be detrimental to solar panels over time.

However, it's important to note that Sint Maarten is a small island with limited land area. Any large-scale solar PV project would need to carefully consider land use conflicts, environmental impacts, and the island's infrastructure capacity. Additionally, the risk of hurricanes in this region would require robust engineering and safety measures for any solar installation.

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.

Helping you assess viability of solar PV for your site

Calculate Your Optimal Solar Panel Tilt Angle: A Comprehensive Guide

Enhance your solar panel's performance with our in-depth guide. Determine the best tilt angle using hard data, debunk common misunderstandings, and gain insight into how your specific location affects solar energy production.
