Location estimate

Philipsburg

Sint Maarten

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

6.88

kWh/day

Autumn

6.04

kWh/day

Winter

5.58

kWh/day

Spring

7.39

kWh/day

Shared scale: 0–8.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Philipsburg, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 6.88 6.88 × 1 kWp = 6.88 kWh/day
Autumn 6.04 6.04 × 1 kWp = 6.04 kWh/day
Winter 5.58 5.58 × 1 kWp = 5.58 kWh/day
Spring 7.39 7.39 × 1 kWp = 7.39 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
6.88
Autumn · kWh/day
6.04
Winter · kWh/day
5.58
Spring · kWh/day
7.39

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 16 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
16°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
2°South
Autumn
Sep, Oct, Nov
23°South
Winter
Dec, Jan, Feb
33°South
Spring
Mar, Apr, May
11°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Philipsburg, Sint Maarten.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 2 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

2° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 23 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

23° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 33 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

33° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 11 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

11° tilt · South

Illustrative direction; exact azimuth not recorded.

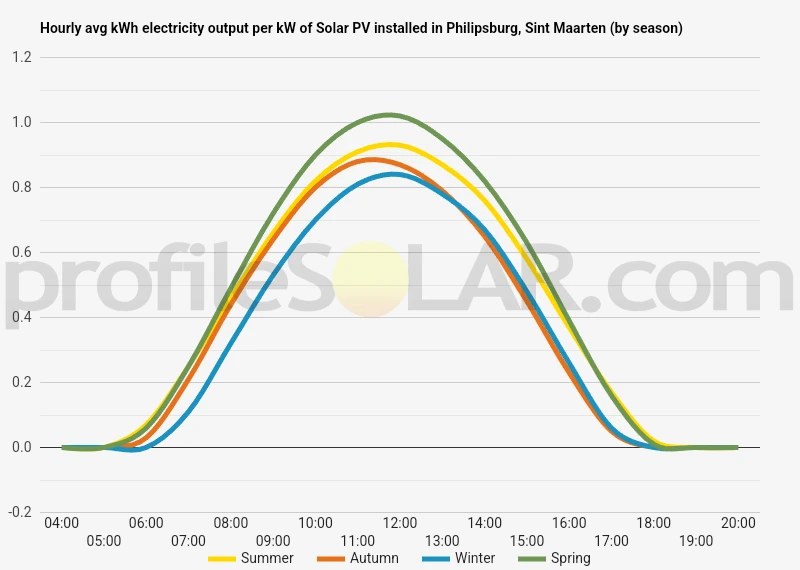

Historical hourly-by-season solar output chart for Philipsburg, Sint Maarten. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Philipsburg, Sint Maarten

Hourly profiles by season — Philipsburg, Sint Maarten · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Philipsburg, Sint Maarten · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Philipsburg

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 2.41 m

Proportional side viewDesign sun: ≈ 48.52° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 0.49 m
Added margin
≈ 0 m
Gap including margin
≈ 0.49 m
Panel horizontal footprint
≈ 1.92 m
Panel vertical rise
≈ 0.55 m
Pitch before margin
≈ 2.41 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
16°
Added margin
0 m
Latitude from the catalogue
18.026000000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.9225233918766378 m
Panel vertical rise
0.5512747116339983 m
Calculated clear gap
0.48731143014783485 m
Pitch before margin
2.4098348220244725 m
Gap including margin
0.48731143014783485 m
Row pitch including margin
2.4098348220244725 m
Design solar elevation
48.52421715318635°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Philipsburg

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Philipsburg's narrow setting between Great Bay and the Great Salt Pond gives solar planning a distinctly urban, coastal character. Roof area, surrounding buildings and exposure to storms matter alongside the island's solar resource. A promising regional estimate is the beginning of that assessment, rather than a substitute for a roof inspection.

Read the full article

Our seasonal averages are 7.39 kWh/day in spring, 6.88 in summer, 6.04 in autumn and 5.58 in winter for each 1 kW of rated panel capacity. Spring leads this comparison, while winter remains a substantial contributor. These are estimated average daily energy figures over each season; individual cloudy days and differences between installations will produce different results. The year-round reference is 16° up from horizontal, facing South. It provides a broad fixed-panel comparison for Philipsburg. On a real building, available roof faces, mounting clearances and the shadows of nearby structures may constrain the arrangement. A low panel angle also makes the details of drainage and safe maintenance access worth considering during design. The Great Salt Pond receives runoff from the surrounding hills. In the town's low-lying urban setting, the route that water takes around a building and its electrical equipment deserves attention alongside sunlight. Storm preparation is likewise a matter of the complete assembly: roof condition, fixings, cables and the manufacturer's installation requirements need to work together. Weather-resistant equipment alone cannot guarantee that an installation will withstand a hurricane. For a home or business in Philipsburg, matching generation to daytime demand can be as useful as pursuing the highest seasonal output. The catalogue figures help frame that comparison. A site-specific design can then establish the usable roof area, shade pattern and electrical arrangement for the actual premises.

Topography around Philipsburg

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Philipsburg occupies the strip of developed land between Great Bay and the Great Salt Pond. The contrast between the seafront, the pond margin and the surrounding hills is central to understanding the town's landscape. Open water can make a view appear expansive, while buildings, roadside structures and rising ground still shape the horizon from an individual roof.

Read the full topography description

The Great Salt Pond lies north of Philipsburg and forms a catchment for runoff from the surrounding hills. Its margins include mangroves and bird habitat, and the pond has a cultural history associated with salt production. These functions make it more than an empty space behind the town: water management, habitat and established urban uses all matter when considering changes nearby. Philipsburg's waterfront and pond-side development have also been shaped by reclaimed and modified ground. The useful question for a particular building is how its floor and equipment levels relate to adjoining roads, drainage routes and the pond or bay, rather than whether a broad area looks flat on a map. A terrain description cannot establish flood levels or the bearing capacity of fill. Solar opportunities here are therefore best considered within the existing built environment. Roofs and other already developed surfaces can be examined for their actual dimensions and obstructions, with the hills forming part of the wider horizon. Selecting an installation requires that local view together with the building's structural and storm-exposure assessment.

Technical location reference

Approximate map point used for Philipsburg, Sint Maarten

This coordinate is the calculation reference for Philipsburg, Sint Maarten. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
18.026000000000000000, -63.043400000000000000
Originally displayed coordinate
lat18.026 / long-63.0434

How the estimate works

How this Philipsburg estimate was calculated

Here is how I calculated the location estimate for Philipsburg, Sint Maarten.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Philipsburg Location estimate includes and leaves out

Use the Philipsburg figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
