Barberton, Mpumalanga, South Africa presents a very good location for year-round solar energy generation. Located in the Southern Sub Tropics at coordinates -25.7862, 31.0506, this area demonstrates consistently strong solar production potential across all seasons.

Seasonal Solar Performance

The solar energy output at Barberton shows excellent consistency throughout the year. Summer delivers the highest production at 5.94 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows closely with 5.56 kWh per day per kW, while autumn maintains strong performance at 5.45 kWh per day per kW. Winter represents the lowest production period at 4.39 kWh per day per kW of installed capacity, but this figure still indicates good solar potential even during the least favorable season. The relatively small difference between the highest and lowest performing seasons demonstrates that Barberton offers reliable solar energy production year-round.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 25 degrees facing North. This angle is calculated by analyzing daily solar elevation angles at the latitude, determining optimal panel tilt for each day, and weighting these angles by daily solar potential using NASA's solar irradiance data to account for Earth's elliptical orbit.

Environmental and Weather Factors

Several local factors could potentially impact solar production at Barberton and require consideration during installation:

• Highveld thunderstorms: The region experiences intense summer thunderstorms with heavy rainfall and hail, which can damage panels and reduce production during storm periods
• Dust and particulate matter: Mining activities in the area and dry winter conditions can lead to dust accumulation on solar panels
• Temperature effects: High summer temperatures can reduce panel efficiency despite increased sunlight
• Humidity and morning mist: The subtropical climate can create morning condensation that temporarily affects early morning production

Preventative Measures

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Hail-resistant panels: Install panels rated for large hail impact and consider protective screening systems
• Regular cleaning systems: Implement automated cleaning systems or establish regular manual cleaning schedules to remove dust buildup
• Adequate ventilation: Ensure proper air circulation around panels to minimize temperature-related efficiency losses
• Quality mounting systems: Use robust mounting hardware designed to withstand strong winds and weather extremes
• Monitoring systems: Install performance monitoring to quickly identify and address any production issues

Despite these considerations, Barberton remains an excellent location for solar energy generation, with the preventative measures being standard best practices rather than responses to severe limitations. The consistent year-round production figures demonstrate that this location offers reliable solar energy potential for both residential and commercial applications.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

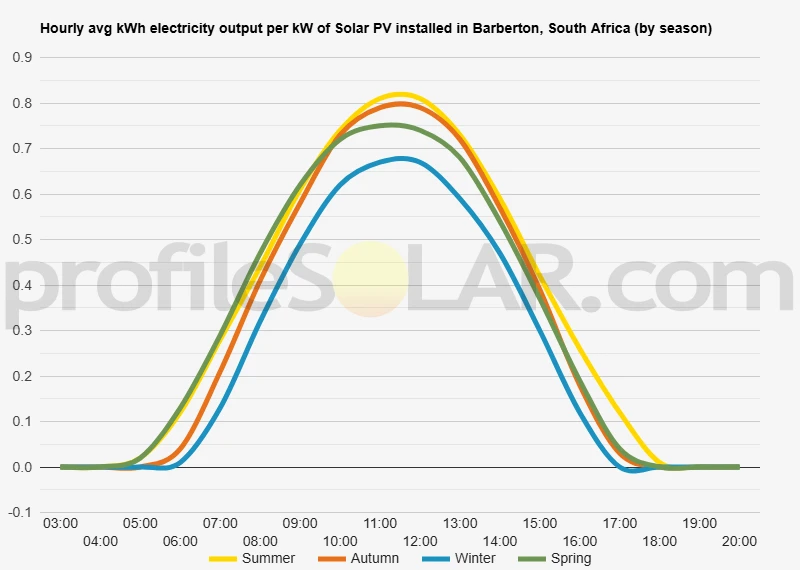

Solar output per kW of installed solar PV by season in Barberton

Seasonal solar PV output for Latitude: -25.7862, Longitude: 31.0506 (Barberton, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Barberton, South Africa

To maximize your solar PV system's energy output in Barberton, South Africa (Lat/Long -25.7862, 31.0506) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Barberton, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Barberton, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	31° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Barberton, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Barberton, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Barberton, South Africa

Topographical Features of Barberton

Barberton sits in a dramatically varied landscape within the Mpumalanga province of South Africa, positioned along the eastern edge of the country near the borders with Eswatini and Mozambique. The town itself nestles in a valley surrounded by the ancient Makhonjwa Mountains, also known as the Barberton Greenstone Belt. These mountains rise steeply from the valley floor, creating a bowl-like depression where the urban center has developed.

The immediate terrain around Barberton is characterized by steep ridges and narrow valleys carved by centuries of erosion. The Makhonjwa Mountains form part of some of the oldest geological formations on Earth, with rocky outcrops and exposed granite domes creating a rugged skyline. Elevations in the area range from approximately 600 meters above sea level in the valley bottoms to over 1,800 meters on the highest peaks.

The landscape transitions from the mountainous terrain around Barberton to more gently rolling hills as one moves westward toward the interior of Mpumalanga. To the east, the topography becomes increasingly steep as it approaches the escarpment that drops down toward the coastal lowlands of Mozambique. Small rivers and streams have carved numerous valleys throughout the region, creating a network of drainage channels that flow generally eastward.

Optimal Areas for Large-Scale Solar Development

The mountainous terrain immediately surrounding Barberton presents significant challenges for large-scale solar photovoltaic installations due to steep slopes, rocky outcrops, and limited flat areas suitable for extensive solar arrays. However, several areas within a reasonable distance of Barberton offer much better conditions for solar development.

The most promising locations lie to the west and northwest of Barberton, where the terrain gradually flattens into the broader Mpumalanga plateau. These areas feature gently undulating grasslands and agricultural fields with relatively few obstacles to large-scale development. The land here is generally well-drained with stable soils that can support the infrastructure required for major solar installations.

Areas around Nelspruit (now Mbombela), approximately 40 kilometers northwest of Barberton, present excellent opportunities for solar development. The terrain here is characterized by broad, gentle slopes with minimal tree cover and good accessibility via existing road networks. The land use in these areas is predominantly agricultural, which often makes it more feasible to acquire large contiguous parcels suitable for solar farms.

Further west toward the towns of White River and Hazyview, the topography becomes even more favorable for large-scale solar installations. These areas feature extensive flat to gently rolling terrain with good drainage and minimal shading from surrounding features. The existing agricultural infrastructure in these regions also means that electrical grid connections and road access are generally well-established.

The areas south and southwest of Barberton, toward the towns of Badplaas and Carolina, also offer suitable terrain for solar development. While slightly more undulating than the areas to the west, these regions still provide substantial flat areas with good solar exposure and reasonable access to transmission infrastructure.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
