Bellville, South Africa presents a moderately favorable location for year-round solar PV energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location varies dramatically throughout the year. Summer delivers the strongest performance at 9.01 kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring follows as the second-best season with 7.20 kWh per day per kW, providing solid energy production during the transition months. However, the location experiences notable challenges during cooler months. Autumn drops to 4.97 kWh per day per kW, while winter presents the most significant limitation at just 3.49 kWh per day per kW of installed solar capacity. This represents a substantial decrease of over 60% compared to peak summer production.

Optimal Installation Configuration

For maximum year-round energy production at Bellville, solar panels should be installed at a fixed tilt angle of 29 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting the angles based on solar irradiance data.

Local Environmental Factors and Mitigation Strategies

Several environmental factors in the Bellville area can potentially impact solar energy production:

• Dust and Sand Accumulation: The Western Cape region experiences periodic dust storms and sandy conditions that can coat solar panels, reducing their efficiency significantly
• Seasonal Rainfall Patterns: While beneficial for natural panel cleaning, the region's wet winter months coincide with the lowest solar production period
• Strong Winds: The area can experience powerful wind conditions that may affect panel stability and require robust mounting systems
• Salt Air Exposure: Proximity to the Atlantic Ocean means salt-laden air can cause corrosion issues over time

To maximize solar energy production despite these challenges, several preventative measures should be implemented. Regular panel cleaning schedules become crucial, particularly during dry months when dust accumulation is highest. Installing panels with anti-reflective coatings and smooth surfaces can help reduce dust adherence and make cleaning more effective. Mounting systems must be engineered to withstand strong coastal winds, using reinforced brackets and proper anchoring techniques. Choosing solar equipment with marine-grade anti-corrosion coatings will help combat salt air exposure and extend system lifespan. Additionally, designing systems with adequate drainage and ventilation helps prevent moisture buildup during the wetter winter months, while strategic placement away from trees or structures that might create wind tunnels can reduce both wind stress and debris accumulation on panels.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

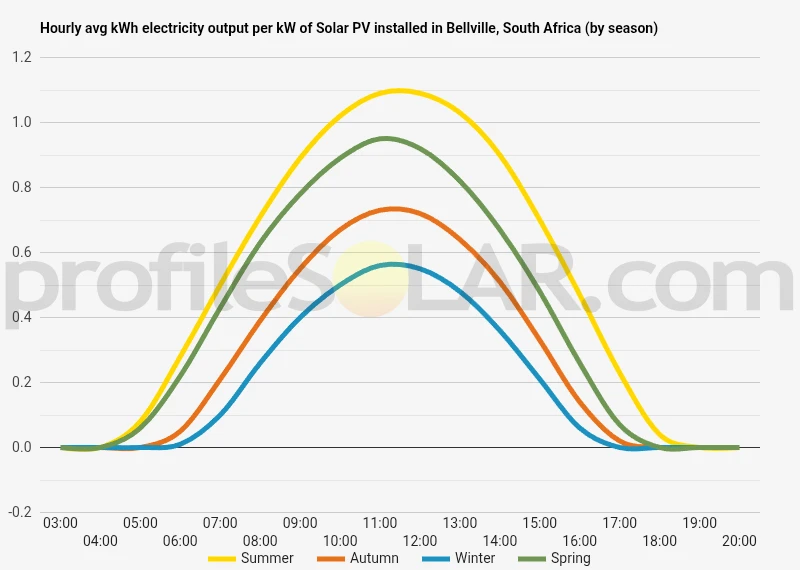

Solar output per kW of installed solar PV by season in Bellville

Seasonal solar PV output for Latitude: -33.8989, Longitude: 18.6422 (Bellville, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° North in Bellville, South Africa

To maximize your solar PV system's energy output in Bellville, South Africa (Lat/Long -33.8989, 18.6422) throughout the year, you should tilt your panels at an angle of 29° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bellville, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bellville, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° North in Summer	39° North in Autumn	49° North in Winter	27° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bellville, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bellville, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bellville, South Africa

Topographical Features of Bellville and Surroundings

Bellville sits within the greater Cape Town metropolitan area in the Western Cape province of South Africa, positioned on what is known as the Cape Flats. This region is characterized by relatively flat, low-lying terrain that stretches between the dramatic mountain ranges that define the Cape Peninsula landscape. The area lies at a modest elevation, typically ranging between 50 to 150 meters above sea level, creating a gently undulating plain that extends eastward from the slopes of the Tygerberg Hills. The topography immediately around Bellville is predominantly flat to gently rolling, with occasional low hills and ridges breaking up the otherwise level terrain. To the north and northeast, the land gradually rises toward the foothills of the Boland Mountains, while to the south and southwest, it remains relatively flat as it approaches False Bay. The Eerste River and its tributaries have carved shallow valleys through the landscape, creating subtle variations in elevation that add gentle contours to what is otherwise a fairly uniform plain. The Cape Flats region, of which Bellville forms a central part, consists largely of sandy soils overlying older geological formations. This sandy substrate, combined with the generally flat terrain, means that drainage patterns are often subtle, with water tending to collect in lower-lying areas during the winter rainfall season. The landscape is interspersed with remnants of natural vegetation, though much of the original fynbos has been cleared for urban and agricultural development.

Optimal Areas for Large-Scale Solar Development

The relatively flat topography surrounding Bellville presents several advantages for large-scale solar photovoltaic installations. The most suitable areas lie to the east and northeast of the town, where the terrain opens up into broader, less developed expanses of the Cape Flats. These areas offer the dual benefits of minimal slope variations, which reduce construction and maintenance costs, and sufficient distance from dense residential areas to allow for substantial installations. The eastern approaches toward Kraaifontein and beyond present particularly favorable conditions, with large tracts of relatively undeveloped land that maintain consistent, gentle gradients. The terrain in these areas typically slopes very gradually from north to south, providing natural drainage while maintaining the flat profiles that are ideal for solar panel arrays. The sandy soils common throughout this region also facilitate easier installation of mounting systems and access roads. Areas to the northeast, extending toward Durbanville and the Tygerberg region, offer additional opportunities, particularly on the lower slopes and plateaus that provide stable, well-drained sites with minimal shading concerns. While these areas have slightly more topographical variation than the eastern Cape Flats, they remain well within acceptable parameters for large-scale solar development and often provide the added advantage of slightly elevated positions that can enhance performance. The southern and southwestern areas, while topographically suitable, tend to be more heavily developed or constrained by existing urban infrastructure, making them less practical for large-scale installations. However, smaller developments might still find opportunities in these directions, particularly where industrial or commercial zones provide appropriate land use compatibility.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
