Bethlehem, Free State, South Africa presents a reasonably good location for year-round solar energy generation, though with notable seasonal variations typical of its Southern Sub Tropics climate zone at coordinates -28.2338, 28.3003.

Seasonal Solar Performance

The solar energy output at this location shows significant seasonal fluctuations. Spring emerges as the most productive season, generating 7.03kWh per day for each kilowatt of installed solar capacity. Summer follows closely with 6.33kWh/day, while autumn drops to 5.73kWh/day. Winter presents the lowest output at 4.49kWh/day per kilowatt installed. This seasonal pattern makes spring and summer the ideal times for maximum solar generation, with these warmer months producing approximately 56% more energy than the winter period. The substantial difference between peak spring output and winter minimums means that solar installations need to account for this variability in their energy planning.

Optimal Panel Configuration

For fixed panel installations at Bethlehem, Free State, the ideal tilt angle is 26 degrees facing North to maximize total year-round solar production. This angle represents the optimal compromise across all seasons, calculated by analyzing daily solar elevation angles and weighting them according to solar irradiance potential throughout the year.

Local Environmental Challenges

Several environmental factors in the Bethlehem area can potentially impact solar energy production:

• Dust and agricultural particles: The surrounding farming activities can create airborne dust that accumulates on solar panels, reducing their efficiency over time
• Hail storms: The region experiences occasional severe thunderstorms with hail, which can damage solar panels if not properly protected
• High altitude winds: Strong winds can affect panel stability and create additional dust accumulation
• Temperature fluctuations: Significant daily and seasonal temperature variations can stress solar equipment and affect performance

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies prove effective:

• Regular cleaning systems: Install automated cleaning systems or schedule frequent manual cleaning to remove dust and debris accumulation
• Hail-resistant panels: Choose solar panels with higher impact resistance ratings and consider protective screening systems
• Robust mounting systems: Use heavy-duty mounting hardware designed for high wind loads, with proper structural anchoring
• Temperature management: Ensure adequate ventilation behind panels and use equipment rated for the local temperature range
• Monitoring systems: Install performance monitoring to quickly identify and address any efficiency drops

Despite these environmental considerations, Bethlehem's solar potential remains quite favorable for renewable energy generation, particularly during the spring and summer months when output peaks significantly above winter levels.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 196 locations across South Africa. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in South Africa by location

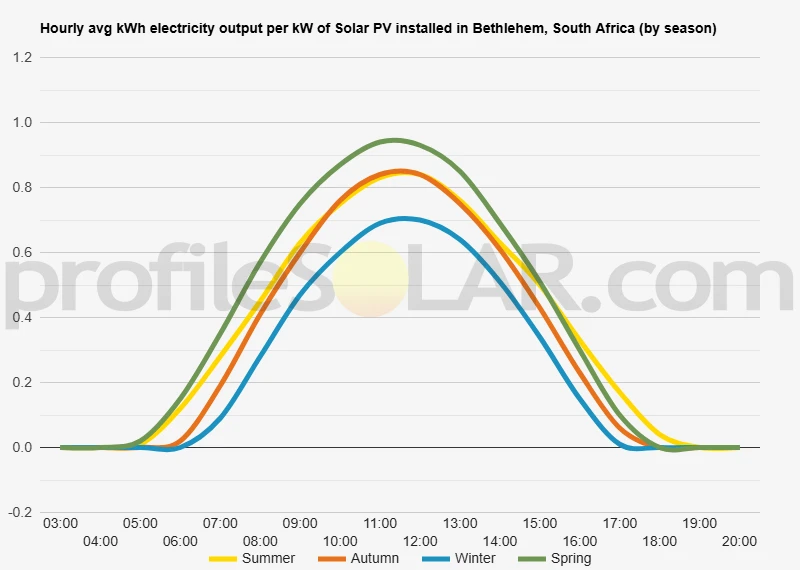

Solar output per kW of installed solar PV by season in Bethlehem

Seasonal solar PV output for Latitude: -28.2338, Longitude: 28.3003 (Bethlehem, South Africa), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Bethlehem, South Africa

To maximize your solar PV system's energy output in Bethlehem, South Africa (Lat/Long -28.2338, 28.3003) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bethlehem, South Africa

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bethlehem, South Africa. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	34° North in Autumn	44° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bethlehem, South Africa

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bethlehem, South Africa.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bethlehem, South Africa

Topographical Features Around Bethlehem

Bethlehem in South Africa sits within the eastern Free State province, positioned on the highveld plateau at an elevation of approximately 1,700 metres above sea level. The surrounding landscape is characterised by gently rolling hills and expansive grassland plains that stretch across much of the region. This elevated plateau terrain creates a relatively stable topographical foundation with moderate undulations rather than dramatic elevation changes. The area forms part of the broader Drakensberg foothills region, where the land gradually rises towards the more mountainous terrain to the east. The topography consists primarily of open grassland with scattered rocky outcrops and gentle slopes that rarely exceed gradients of 10-15 degrees across most of the surrounding territory. These characteristics make the region particularly well-suited for large-scale infrastructure development. Natural drainage patterns flow generally westward across the plateau, creating shallow valleys and ridgelines that add subtle variation to an otherwise relatively uniform landscape. The grassland vegetation is typical of the highveld biome, with minimal tree coverage except along watercourses and in sheltered valleys.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for major solar photovoltaic installations would be the extensive flat to gently sloping grassland areas that dominate the landscape within a 20-30 kilometre radius of Bethlehem. These areas offer several key advantages including minimal grading requirements, excellent accessibility for construction and maintenance vehicles, and sufficient space for large array configurations without significant topographical constraints. The broad plateau surfaces to the north and west of Bethlehem present particularly attractive opportunities, as these areas combine relatively level terrain with good exposure characteristics. The gentle southward-facing slopes found throughout the region would provide optimal panel orientation for maximum solar collection efficiency throughout the year. Areas with slopes between 0-5 degrees are ideal for solar installations, as they require minimal earthworks while still providing adequate drainage. The rolling grassland terrain offers numerous such locations, particularly on the broader ridge systems and plateau surfaces that characterise the regional topography. Agricultural land currently used for grazing or crop production could potentially accommodate solar developments, especially areas where the terrain is too steep or rocky for efficient farming operations. The transition zones between cultivated fields and natural grassland often present suitable gradients and soil conditions for solar infrastructure. Infrastructure accessibility represents another crucial factor, with areas closer to existing road networks and electrical transmission lines offering significant advantages for development. The relatively uniform topography means that most locations within the broader region could accommodate large-scale solar installations from a purely topographical perspective, making proximity to existing infrastructure a key determining factor for optimal site selection.

South Africa solar PV Stats as a country

South Africa ranks 21st in the world for cumulative solar PV capacity, with 6,221 total MW's of solar PV installed. This means that 2.00% of South Africa's total energy as a country comes from solar PV (that's 34th in the world). Each year South Africa is generating 105 Watts from solar PV per capita (South Africa ranks 38th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in South Africa?

Yes, there are several incentives for businesses wanting to install solar energy in South Africa. The government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include the Renewable Energy Feed-in Tariff (REFIT) program, which provides long-term contracts with guaranteed prices for electricity generated from renewable sources; the Accelerated Depreciation Allowance (ADA), which allows businesses to deduct up to 50% of their capital expenditure on renewable energy projects from their taxable income; and the Small Scale Embedded Generation (SSEG) program, which provides financial support for small-scale solar installations. Additionally, some local governments offer grants or subsidies to help offset the cost of installing solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in South Africa? Please reach out to us and help us keep this information current. Thanks!
